eBOX100B-N150-2E

eBOX100B – Fanless Embedded System with Intel Twin Lake by Axiomtek

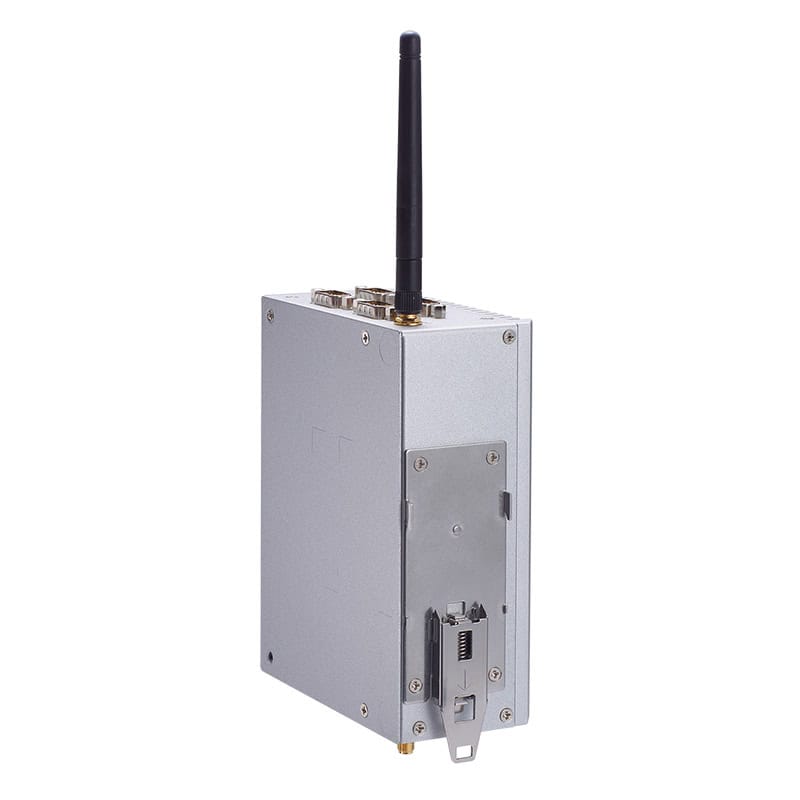

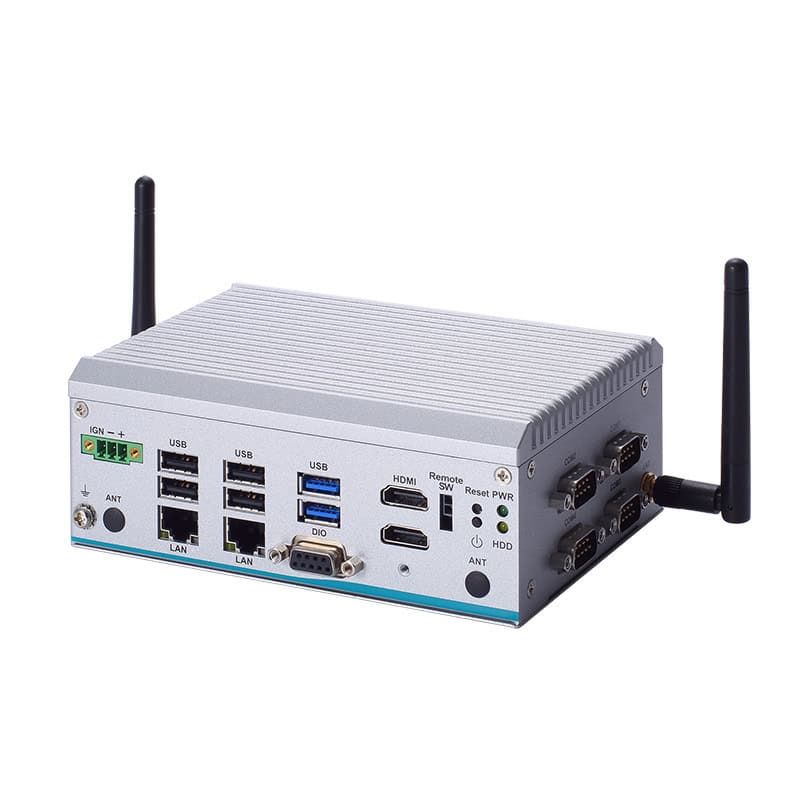

The Axiomtek eBOX100B is a compact fanless embedded system powered by the Intel Processor N150 (Twin Lake) quad-core SoC, offering wide-temperature operation from -40 to +70°C and a rich I/O set including 2x 2.5GbE, 4x COM, 6x USB, 2x HDMI, and 8-channel DIO in a front-access aluminum IP40 enclosure. It supports M.2 Key M NVMe, M.2 Key E Wi-Fi, and Mini PCIe expansion alongside intelligent ignition and USB power control for vehicle and mobile deployments on 9 to 36VDC. Available from Recab, your Nordic partner for Axiomtek embedded computing solutions.
contct-now-icon (2) Get datasheet
Description
The Axiomtek eBOX100B is a compact fanless embedded system designed for edge computing, transportation, and industrial IoT applications where space, power efficiency, and wide-temperature reliability are critical. At its core is the Intel Processor N150 (Twin Lake) quad-core SoC running at up to 3.6GHz with a 6W TDP, paired with 8GB LPDDR5 onboard memory with a 16GB option available by project, enabling capable processing without the thermal or mechanical complexity of active cooling. The aluminium extrusion and heavy-duty steel IP40 enclosure measures just 155 x 110 x 60mm and weighs 1.1kg, with a front-access I/O layout that simplifies cabling and maintenance in tight installation spaces. Connectivity is comprehensive: 2x 2.5GbE LAN via Intel I226-V controllers, 2x USB 3.2 Gen 2, 4x USB 2.0, 2x lockable HDMI for dual independent display output at Full HD, 4x RS-232/422/485 COM ports with autoflow, and an 8-channel TTL digital I/O. Storage options include one M.2 2280 Key M NVMe SSD slot and one 2.5-inch SATA bay. Expansion is provided by an M.2 Key E 2230 slot for Wi-Fi, a full-size Mini PCIe slot with SIM signal for LTE, and an internal SIM slot. Intelligent power management supports ignition on/off and USB power on/off control, alongside a 9 to 36VDC wide-range power input with inrush protection, making the eBOX100B well suited to vehicle-mounted and mobile computing deployments. TPM 2.0 is included for hardware security. The system operates between -40 and +70°C and is certified to CE, FCC Class A, and UKCA, running Windows 10, Windows 11 IoT, and Linux. Available from Recab, your Nordic partner for Axiomtek embedded computing solutions.
Features
  • Intel Processor N150 Twin Lake quad-core SoC at up to 3.6GHz delivers efficient fanless edge computing performance.
  • Wide operating temperature from -40 to +70°C with MIL-STD-810G vibration and shock ratings suits harsh deployments.
  • Two 2.5GbE Intel I226-V LAN ports provide high-speed network connectivity for bandwidth-intensive edge applications.
  • Intelligent ignition on/off and USB power management enable reliable vehicle-mounted and mobile system deployments.
  • Front-access I/O layout with 4x COM, 6x USB, dual HDMI, and 8-CH DIO simplifies installation in compact enclosures.
  • M.2 Key E, Mini PCIe with SIM, and M.2 Key M NVMe expansion support Wi-Fi, LTE, and high-speed storage options.
Specifications
CPU Intel® Processor N150
Memory 1 x 8GB LPDDR5
Temperature -40°C to +70°C
Power 9 to 36 VDC
I/O 4 x RS-232/422/485
Storage 1 x M.2 2280 Key M
Dimensions 155 x 110 x 60 mm
Weight 1.1 kg
Construction Aluminum and Steel
Certifications CE, FCC Class A, UKCA
  • Vehicle-mounted and mobile edge computing with ignition control and wide-voltage power input
  • Industrial IoT gateway deployments requiring 2.5GbE networking and multi-serial COM port connectivity
  • Transportation and fleet management systems demanding wide-temperature fanless embedded computing
  • Factory automation and machine control edge nodes with dual HDMI display and DIO capability
