KBox A-251-AML/ADN

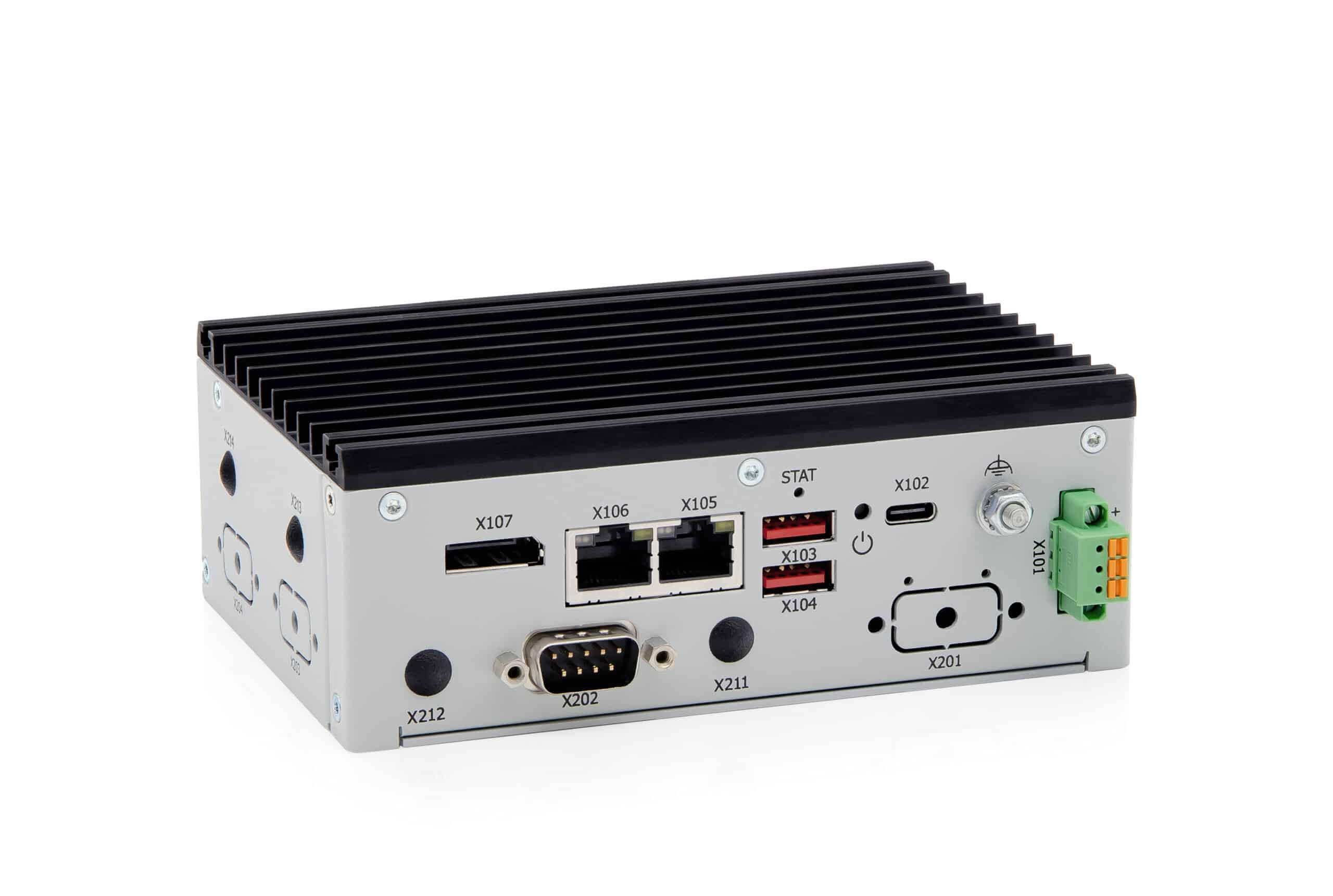

KBox A-251-AML/ADN – Compact Fanless IoT Edge Gateway by Kontron

The Kontron KBox A-251-AML/ADN is a highly compact fanless embedded box PC measuring just 137 x 50 x 95 mm, designed for IoT edge gateway applications based on Intel N97, Intel Core i3-N305, or Intel Atom X7000 Series processors. DDR5 memory up to 16 GB, dual 2.5 GbE Intel I226, onboard eMMC up to 128 GB, optional Wi-Fi 6 and LTE/5G, and I/O door expansion including EtherCAT, dual CAN, and GPIO make it ideal for compact industrial IoT, machine connectivity, and smart factory edge deployments. Available from Recab, your Nordic partner for Kontron embedded computing solutions.
contct-now-icon (2) Get datasheet
Description

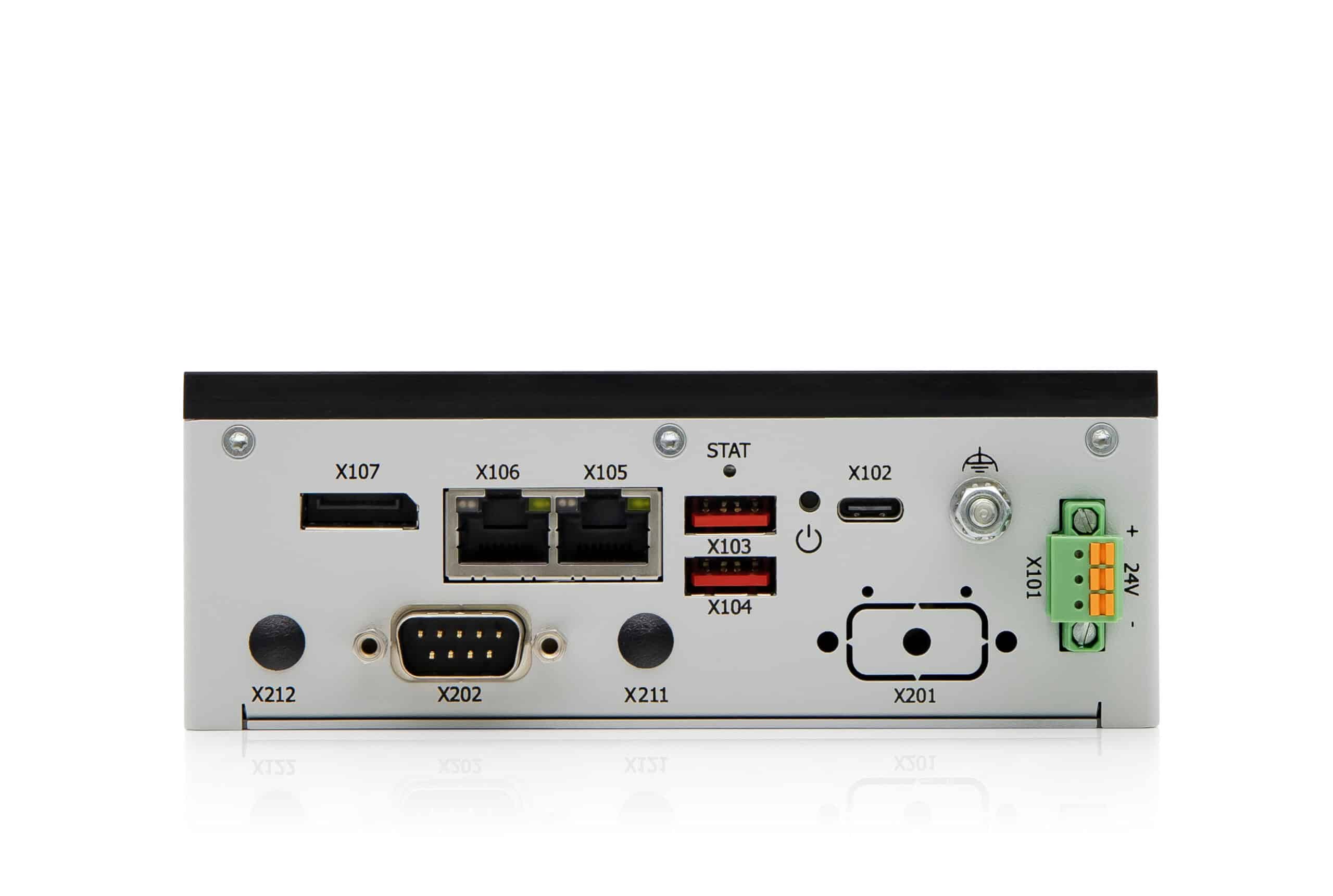

The Kontron KBox A-251-AML/ADN is an ultra-compact fanless embedded box PC at just 137 x 50 x 95 mm and approximately 1 kg, built around a 2.5-inch single board computer platform and designed specifically for IoT edge gateway, machine connectivity, and smart factory applications where space and power are at a premium. Processor options include Intel Processor N97, Intel Core i3-N305, Intel Atom x7211RE, x7433RE, and x7835RE, with Intel Atom variants supporting TCC and TSN for time-sensitive industrial networking. DDR5 memory up to 16 GB and onboard eMMC up to 128 GB provide base compute and storage, with additional M.2 Key-B storage capacity up to 2 TB. Standard interfaces include one DisplayPort, two USB 3.2 Type-A, one USB-C with DisplayPort alternate mode, dual 2.5 GbE Intel I226-V/IT ports, and one RS-232 COM port. The I/O door expansion system enables field configuration with optional modules for EtherCAT, dual CAN, dual 2.5 GbE, additional non-isolated RS-232/422/485 COM ports, or 8-channel GPIO/DIO, via the M.2 Key-B slot. Wi-Fi 6 and LTE/5G cellular connectivity are optionally available via M.2 Key-E and Key-B slots respectively. DIN rail, rugged DIN rail, and desktop mounting options, 12 or 24 VDC power input with automotive battery backup option, CE, UL 61010-1, FCC, and UKCA certification, and compatibility with KontronOS, KontronGrid fleet management, and FabEagle Connect integration software complete a thoroughly capable compact gateway platform. Available from Recab, your Nordic partner for Kontron embedded computing solutions.
Features
  • Ultra-compact 137 x 50 x 95 mm fanless chassis weighing approximately 1 kg enables deployment in extremely space-constrained locations.
  • Dual 2.5 GbE Intel I226-V/IT ports with Intel Atom TSN support enable time-sensitive deterministic industrial networking.
  • I/O door expansion supports EtherCAT, dual CAN, dual 2.5 GbE, COM ports, and GPIO without requiring hardware modification.
  • Onboard eMMC up to 128 GB plus M.2 Key-B storage up to 2 TB provides flexible embedded storage for gateway and logging applications.
  • Optional Wi-Fi 6 and LTE/5G modules via M.2 expansion deliver wireless and cellular connectivity for remote IoT edge deployments.
  • KontronOS, KontronGrid, and FabEagle Connect software stack enables rapid industrial IoT integration and fleet management at scale.
Specifications
CPU Intel® N97, Core i3-N305, Atom x7000
Memory Up to 16 GByte DDR5
Graphics Intel® UHD Graphics
Resolution 4096 x 2160 @ 60Hz
Storage Up to 128 GByte eMMC
Operating System Win 11 IoT, Linux Debian
Dimensions 137 x 50 x 95 mm
Weight Approx. 1.0 kg
Temperature 0 °C to +60 °C
Certifications CE, UL 61010-1, FCC
  • IoT edge gateway and machine connectivity in smart factory and Industry 4.0 environments
  • Compact DIN-rail industrial controller with EtherCAT or CAN fieldbus expansion for machine interfacing
  • 5G-connected edge gateway for remote asset monitoring and industrial cellular data collection
  • TSN-capable embedded gateway for time-sensitive industrial Ethernet and OT network integration

Get datasheet
