AL Pi-Tron CM4

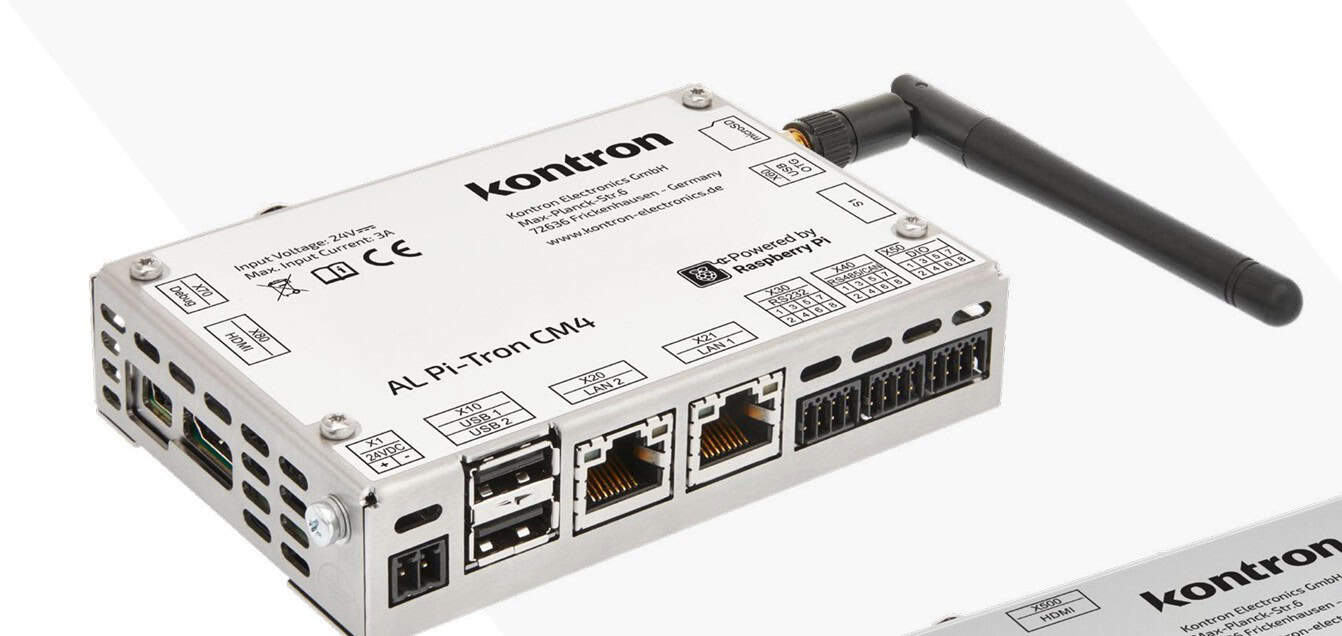

AL Pi-Tron CM4 – Raspberry Pi Compute Module 4 Industrial DIN Rail Computer by Kontron

The Kontron AL Pi-Tron CM4 is a compact industrial DIN rail computer built around the Raspberry Pi Compute Module 4 with a Broadcom BCM2711 quad-core Cortex-A72 processor at 1.5GHz, running Raspbian Linux with Gigabit Ethernet, CAN FD, RS-232, RS-485, optional WiFi 5 and Bluetooth 5.0, 4K HDMI output, and four 24V digital I/O channels in a robust stainless steel housing. Designed for IoT gateways, edge computing, automation, and visualisation applications, it brings enhanced CM4 performance to industrial DIN rail deployments. Available from Recab, your Nordic partner for Kontron Automation-Line computing solutions.
contct-now-icon (2) Get datasheet
Description
The Kontron AL Pi-Tron CM4 is an enhanced industrial DIN rail computer from the Kontron Automation-Line series, built around the Raspberry Pi Compute Module 4 to deliver significantly improved processing capability, connectivity, and display output compared to its CM3+ predecessor, while retaining full access to the extensive Raspberry Pi software ecosystem and developer community. Developed by Kontron as an official Raspberry Pi Design Partner, the AL Pi-Tron CM4 houses the Broadcom BCM2711 quad-core Cortex-A72 processor at 1.5GHz with H.265 decode up to 4Kp60, H.264 decode up to 1080p, and OpenGL ES 3.0 graphics, with memory options from 1GB to 8GB LPDDR4 and eMMC storage from 8GB to 32GB plus a microSD slot. Communication interfaces include one Gigabit Ethernet, one 10/100 Ethernet, two USB 2.0 Host, one USB 2.0 OTG, RS-232, RS-485, CAN 2.0B/FD for high-speed fieldbus communication, and four 24V digital I/O channels at up to 800mA. Optional integrated WiFi 5 at 2.4GHz and 5GHz with Bluetooth 5.0 and BLE eliminates the need for external wireless modules in wireless IoT gateway deployments. The HDMI 2.0 output supports display resolutions up to 4Kp60 for local HMI and visualisation applications alongside industrial control tasks. Additional I/O is available through Kontron multifunctional I/O modules connected via CAN bus, supporting up to 16 modules for digital, analogue, and temperature expansion. The stainless steel IP20 housing measures 111 x 25 x 76mm and mounts on standard 35mm DIN rail per EN 60715, operating from 0°C to 55°C on 24V DC at a maximum of 9.6W. CE certified. Available from Recab, your Nordic partner for Kontron Automation-Line Raspberry Pi industrial computing solutions.
Features
  • Raspberry Pi Compute Module 4 with Broadcom BCM2711 quad-core Cortex-A72 at 1.5GHz with H.265 4Kp60 decode capability
  • Gigabit Ethernet, CAN 2.0B/FD and optional integrated WiFi 5 at 2.4/5GHz with Bluetooth 5.0 and BLE
  • HDMI 2.0 output up to 4Kp60 for local HMI visualisation alongside industrial automation and control tasks
  • Four 24V digital I/O channels at up to 800mA with RS-232 and RS-485 for industrial device connectivity
  • Expandable via Kontron multifunctional I/O modules via CAN bus for additional digital, analogue and temperature I/O
  • Compact IP20 stainless steel 35mm DIN rail housing at 111 x 25 x 76mm operating from 0 degrees C to 55 degrees C on 24V DC
Specifications
CPU Broadcom BCM2711 4x Arm® Cortex®-A72 @1.5 GHz, H.265 (HEVC) up to 4Kp60 decode, H.264 up to 1080p decode, 1080p30 encode OpenGL ES 3.0 graphic
Memory LPDDR4-2 GByte optional 1 GByte, 4 GByte, 8 GByte , RAM- EMMC*-16 GByte optional Lite/8 GByte/32 GB, SD CARD CCM4 Lite: 1x microSD-Slot for operating system CM4 8/16/32 GB: 1x microSD-Slot only for data
ETHERNET 1x 1 Gbit/s, 1x 10/100 Mbit/s
USB 2x 2.0 Host,
SERIAL 1x RS232, 1x RS485
CAN 1x CAN 2.0B/FD
DIO 4x DIO (24 V/up to 800 mA)
WLAN/Bluetooth Optional 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless BT 5.0, BLE
POWER SUPPLY 24 V DC ±20 %, 3.4 W… 9.6 W (without periphery)
OPERATING SYSTEM Raspbian Linux (not preinstalled)
  • Industrial IoT gateways and wireless edge computing leveraging Raspberry Pi CM4 with optional WiFi 5 and Bluetooth 5.0
  • Visualisation and HMI applications requiring 4K HDMI output combined with industrial control interfaces
  • Automation and real-time control requiring CAN FD fieldbus communication in compact DIN rail form factor
  • M2M communication and edge computing in mechanical engineering and machine building applications
