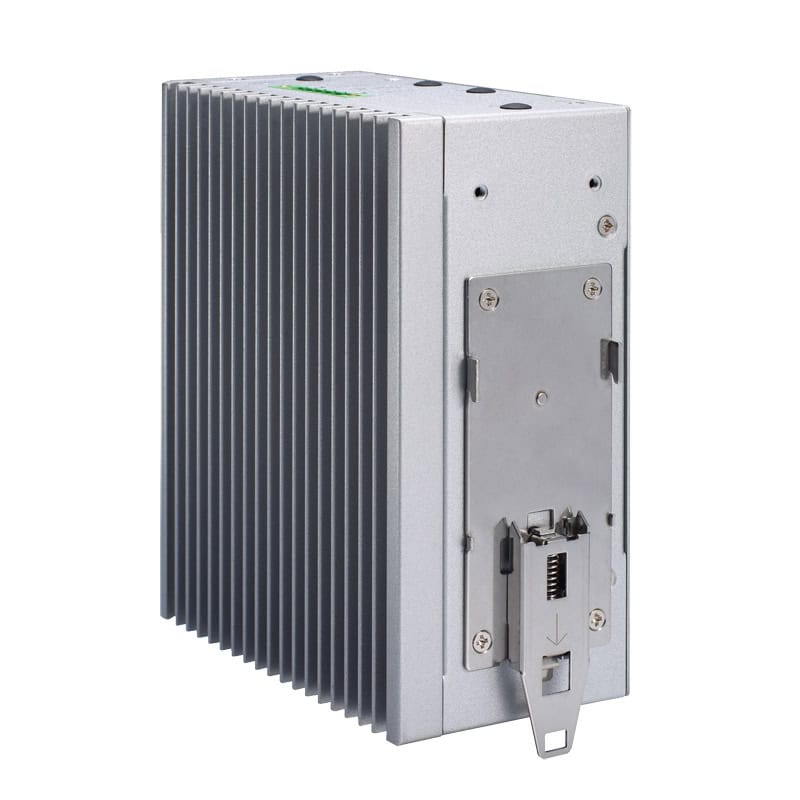

iNA200 – DIN-Rail Fanless Cybersecurity Gateway with 5G by Axiomtek

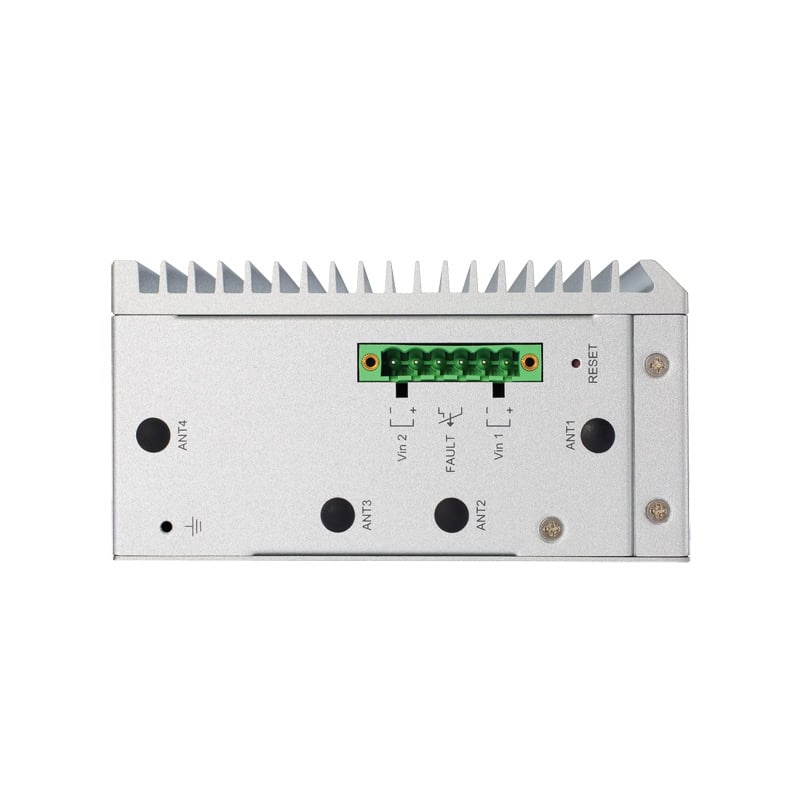

The Axiomtek iNA200 is an advanced DIN-rail fanless cybersecurity gateway built on the Intel Atom x6212RE or x6414RE processor (Elkhart Lake) with SoC-integrated chipset, targeting OT field site cybersecurity and secured edge deployments across industrial and utility environments. DDR4-3200 SO-DIMM memory supports up to 32 GB, providing substantially greater capacity than first-generation ICS gateways, enabling more complex security inspection and edge analytics workloads. The iNA200 delivers a rich six-port network configuration: two GbE copper ports with LAN Bypass, two 2.5 GbE ports with LAN Bypass and TSN for time-sensitive industrial protocols, and two 1G SFP fibre ports for long-distance or electrically isolated network segments. An M.2 Key-B 3042/3052 slot with PCIe and USB supports 5G and LTE module integration, making the iNA200 a strong candidate for cellular-connected OT security gateways, while a full-size PCIe Mini Card slot adds further wireless or storage expansion. Serial I/O covers RS-232/422/485 via DB9 and RS-485 via terminal block for legacy field device connectivity. Storage includes a 2.5-inch SATA 3.0 SSD bay plus optional eMMC. The dual 9 to 36 V DC power input via terminal block with OVP, UVP, OCP, and RPP protection supports redundant power supply architectures. An operating temperature range of -40 to +70 degrees Celsius, aluminium and steel construction, CE and FCC Class A certification, and onboard TPM 2.0 complete a specification designed for demanding OT edge security roles in energy, utilities, transport, and smart manufacturing. Available from Recab, your Nordic partner for Axiomtek cybersecurity gateway solutions.
