ADAM-5024

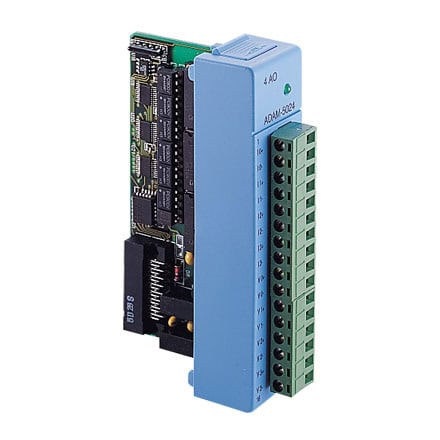

ADAM-5024 – 4-ch Analog Output Module by Advantech

The ADAM-5024 is a 4-channel analog output module from Advantech designed for industrial automation and process control applications. This module supports both current and voltage output ranges including 0-20 mA, 4-20 mA, and 0-10 V with 12-bit resolution and high accuracy of ±0.1% FSR for current and ±0.2% FSR for voltage outputs. Key features include 3,000 VDC isolation voltage for robust protection, programmable output slope control, and CE/FM certifications for demanding industrial environments. The module features plug-in screw terminal connectors for easy installation and maintenance. Available from Recab, your Nordic partner for Advantech industrial I/O module solutions.
contct-now-icon (2) Get datasheet
Description
The ADAM-5024 is a versatile 4-channel analog output module manufactured by Advantech, engineered for precision control in industrial automation, process control, and SCADA applications. This module delivers reliable analog signal output with support for multiple output types including current outputs of 0-20 mA and 4-20 mA, as well as voltage output of 0-10 V, making it suitable for driving a wide range of actuators, valves, and control devices. With 12-bit resolution and exceptional accuracy specifications of ±0.1% of full scale range for current output and ±0.2% for voltage output, the ADAM-5024 ensures precise control in demanding applications. The module features robust protection with 3,000 VDC isolation voltage, safeguarding both the module and connected equipment from electrical disturbances. A programmable output slope function allows users to configure ramp rates from 0.125 to 128.0 mA per second for current outputs and 0.0625 to 64.0 V per second for voltage outputs, enabling smooth transitions and preventing system shocks. The current load resistor supports 0 to 500 ohms for source applications. Temperature stability is ensured with span temperature coefficient of ±25 PPM per degree Celsius and minimal zero drift specifications. The ABS+PC enclosure with plug-in screw terminal connectors accommodating 14 to 22 AWG wiring facilitates straightforward installation and field maintenance. CE and FM certifications confirm compliance with industrial safety and electromagnetic compatibility standards, while RoHS compliance ensures environmental responsibility. The ADAM-5024 is ideal for factory automation, building management systems, energy monitoring, and industrial process control where accurate analog signal generation is critical. Available from Recab, your Nordic partner for Advantech industrial I/O module solutions.
Features
  • Four independent analog output channels with current and voltage output capability
  • High accuracy of ±0.1% FSR for current and ±0.2% for voltage outputs
  • Robust 3,000 VDC isolation voltage protects equipment from electrical disturbances
  • Programmable output slope control enables smooth signal transitions up to 128 mA/sec
  • 12-bit resolution provides precise control for demanding industrial applications
  • CE and FM certified ensuring compliance with international industrial standards
Specifications
Channels 4
Output Type mA, V
Output Range 0 ~ 20 mA, 4 ~ 20 mA, 0 ~10 V
Resolution 12-bit
Accuracy ±0.1% of FSR for current output, ±0.2% of FSR for voltage output
Current Load Resistor 0 ~ 500 Ω (source)
Programmable Output Slope 0.125 ~ 128.0 mA/sec., 0.0625 ~ 64.0 V/sec.
Span Temperature Coefficient ±25 PPM/°C
Zero Drift Voltage: ±30 µV/°C, Current: ±0.2 µA/°C
Isolation Voltage 3,000 VDC
Power Consumption 2.9 W (max.)
Connectors 1 x Plug-in screw terminal (# 14 ~ 22 AWG)
Enclosure ABS+PC
Certification CE, FM
  • Industrial process control systems requiring precise analog outputs
  • Factory automation for valve and actuator control applications
  • Building management and HVAC system signal generation
  • SCADA systems requiring isolated analog output interfaces
