ADAM-250PN

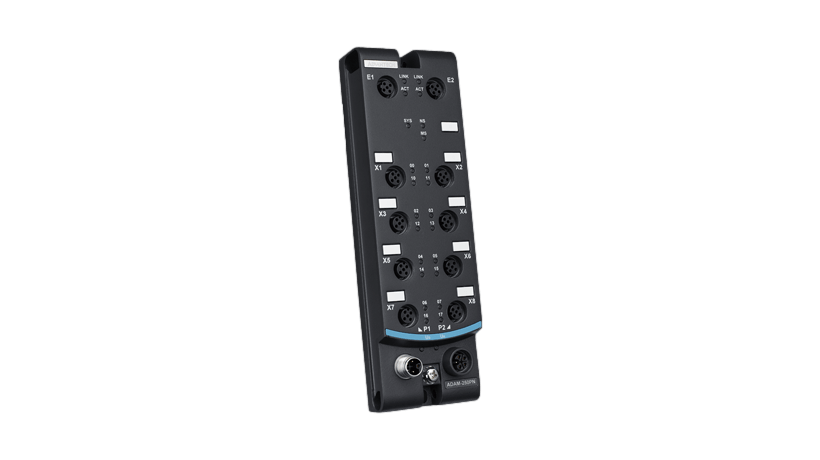

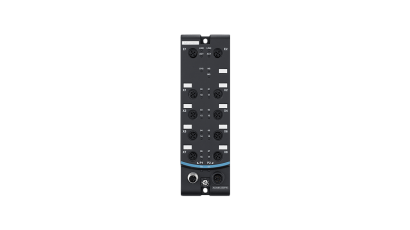

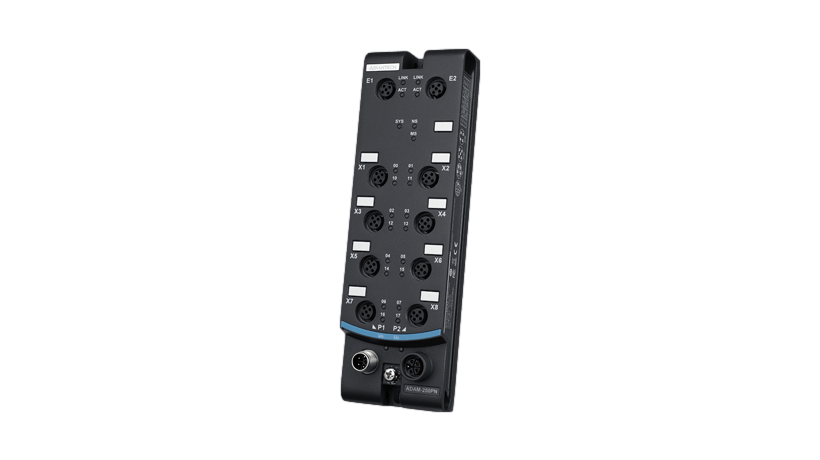

ADAM-250PN – 16 DIO IP67 PROFINET Remote I/O Module by Advantech

The ADAM-250PN by Advantech is a rugged 16-channel configurable digital I/O module designed for PROFINET, Modbus/TCP, and SNMP industrial networks. Featuring IP67 protection, M12 connectors with push-pull fast-locking capability, and 2-port Ethernet daisy chain support, this module excels in harsh outdoor and hazardous environments. It offers IEC 61131-2 Type 3 sink digital inputs, fast response source digital outputs with safety value protection, comprehensive diagnostic functions, and EN 50155 railway compliance. The wide operating temperature range of -40 to 60°C and robust EMC protection make it ideal for machine automation, railway, and critical infrastructure applications. Available from Recab, your Nordic partner for Advantech industrial I/O solutions.
contct-now-icon (2) Get datasheet
Description
The ADAM-250PN from Advantech is a versatile 16-channel configurable digital input/output remote I/O module engineered for demanding industrial automation environments requiring PROFINET, Modbus/TCP, and SNMP connectivity. This rugged IP67-rated device features M12 connectors supporting both screw lock and push-pull fast-locking connections according to IEC 61076-2-010 and IEC 61076-2-101 standards, enabling reliable cabinet-free installations in challenging conditions. The module provides IEC 61131-2 Type 3 sink-type digital inputs with configurable input delay filtering from 0.05ms to 20ms, while the source-type digital outputs deliver up to 0.5A per channel on US ports and 2A per channel on UA ports with short-circuit protection and configurable safety reactions to CPU STOP conditions. Two-port 100Base-T Ethernet connectivity with integrated switch enables efficient daisy chain network topologies, while the power daisy chain feature simplifies wiring in distributed I/O architectures. Comprehensive diagnostic capabilities monitor over-current, short to ground or power, wire-break conditions, and encoder supply status, supporting predictive maintenance strategies. The ADAM-250PN meets EN 50155 railway standards with IEC 61373 body mount class B vibration and shock compliance, making it suitable for rolling stock applications. EMC protection includes ESD up to ±15kV air discharge, EFT ±2kV, and surge ±1kV, ensuring reliable operation in electrically noisy industrial environments. The wide operating temperature range of -40 to 60°C, combined with resistance to dust, oil, and humidity, positions this module for outdoor installations, transportation systems, machine automation, and critical infrastructure applications where robust performance is essential. Fast Start Up under 500ms and MRP client support enable seamless integration into PROFINET networks with demanding real-time requirements. Available from Recab, your Nordic partner for Advantech industrial I/O solutions.
Features
  • Offers 16 configurable digital I/O channels with 2-port power and Ethernet daisy chain capability
  • IP67-rated rugged design withstands strong EMI, vibration, dust, oil, and humidity atmospheres
  • Supports IEC 61131-2 Type 3 sink digital inputs with configurable input delay filtering options
  • EN 50155 compliant for railway applications with IEC 61373 body mount class B certification
  • Comprehensive diagnostic functions monitor over-current, short-circuit, and wire-break conditions per channel
  • Fast Start Up under 500ms with MRP client support for PROFINET network redundancy
Specifications
I/O Channels 16 (Configurable DI or DO)
Protocols PROFINET, Modbus/TCP, TCP/IP
Degree of Protection IP67
Power Input Unregulated 24 VDC ±20%
Power Consumption 6W @ 24 VDC
Ethernet 2-port 100Base-T(X) with Daisy Chain and integrated switch
Operating Temperature -40 ~ 60 °C (-40 ~ 140 °F)
Digital Input Type Sink (NPN) Type, IEC 61131-2 Type 3
Digital Output Current US: 0.5 A/channel (Max. 1A), UA: 2 A/channel (Max. 2.6A)
Connector M12, Push-pull fast connection or screw connection
Isolation Voltage 750 VDC between US & UA, 1,500 VDC (Ethernet)
PROFINET Conformal Class B (RT), 1ms
Fast Start Up (FSU) <500ms
Certification FCC, CE, CB/UL 62368-1
Dimensions 200 x 60 x 191 mm
  • Railway rolling stock digital I/O integration requiring EN 50155 compliance
  • Outdoor machine automation in harsh weather and dusty environments
  • Critical infrastructure monitoring with PROFINET real-time communication
  • Hazardous industrial applications requiring IP67 waterproof protection
