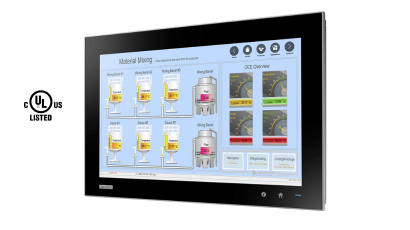

TPC-318WH – 18.5″ Explosion Proof HMI Panel PC by Advantech

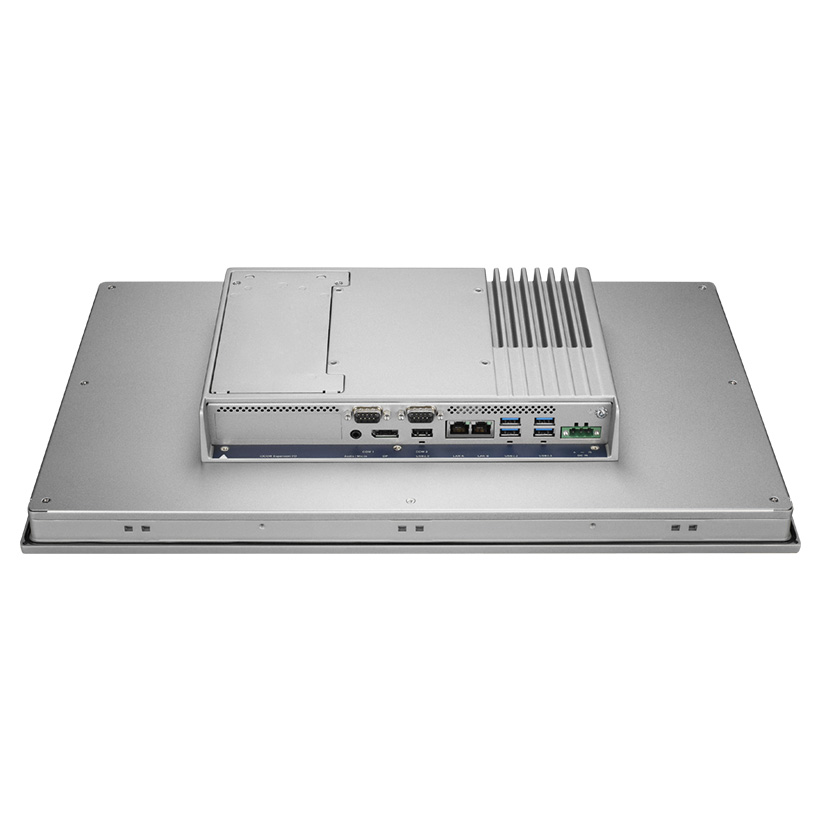

The Advantech TPC-318WH is an 18.5-inch explosion proof touch panel computer designed for deployment in hazardous industrial environments requiring UL Class 1 Division 2 certification. This robust HMI solution combines a high-performance 8th Gen Intel Core i5-8365UE quad-core processor running at 1.60 GHz with built-in 8GB DDR4 memory and 240GB SSD storage, delivering the computing power needed for demanding industrial automation and process control applications. The industrial-grade WXGA TFT LED LCD display features 1366×768 resolution, 450 cd/m² brightness, and an impressive 50,000-hour LED backlight lifespan, ensuring long-term visual reliability in continuous operation scenarios. The true-flat PCAP touchscreen provides intuitive operator interaction while maintaining IP66-rated front panel protection against dust and water ingress. Built with a compact fanless design utilizing die-cast aluminum alloy construction for both the front bezel and back housing, the TPC-318WH operates reliably across a wide temperature range from -10 to 55°C without airflow requirements. Comprehensive connectivity options include dual 10/100/1000BASE-T Ethernet ports, two configurable RS-232/422/485 serial interfaces, four USB 3.2 ports, one USB 2.0 port, and DisplayPort output for additional display expansion. The system incorporates TPM 2.0 hardware security for enhanced data protection and features M.2 expansion slots supporting NVMe, SATA, or WiFi modules for application flexibility. Ideal for oil and gas facilities, chemical processing plants, pharmaceutical manufacturing, and other environments where explosive atmospheres may be present, the TPC-318WH provides operators with reliable visualization and control capabilities. The panel mount design with included mounting clamps enables straightforward installation in control room enclosures and equipment panels. Available from Recab, your Nordic partner for Advantech industrial HMI solutions.
