DPC-8156

DPC-8156 – Fanless 15.6″ Touch Panel PC by Darveen

The Darveen DPC-8156 is a fanless 15.6″ industrial touch panel PC powered by a 10th Gen Intel Core i5 or i7 processor, designed for demanding industrial automation and HMI applications. It offers a choice of resistive or projected capacitive touchscreen, an IP65-rated aluminum front panel, and a modular design that allows straightforward CPU or I/O board upgrades. With 4x GbE LAN, 3x COM, 4x USB, and wide-temperature operation from -10 to 50°C, the DPC-8156 delivers reliable, long-life performance. Available from Recab, your Nordic partner for Darveen industrial panel PC solutions.
contct-now-icon (2) Get datasheet
Description
The Darveen DPC-8156 is a fanless 15.6″ industrial touch panel PC built for high-performance computing in challenging environments, powered by a 10th Gen Intel Core i5-10210U quad-core or i7-10710U six-core processor. Its modular architecture allows engineers to upgrade the CPU board or I/O board independently, extending product life and reducing system downtime in industrial deployments. The 15.6-inch LED-backlit display supports a full HD 1920×1080 resolution at 450 nits and can be configured with either a 5-wire resistive or projected capacitive multi-touch screen, with a surface hardness of at least 7H on the capacitive variant. The IP65-rated aluminum alloy front panel and all-metal chassis deliver dust and water resistance alongside excellent heat dissipation, making the DPC-8156 well-suited to factory floors, machine control cabinets, and outdoor kiosks operating between -10 and 50°C. Connectivity is comprehensive, with 4x GbE LAN ports, 3x COM ports supporting RS-232, RS-422, and RS-485, 4x USB 3.0, and 1x HDMI output. Two DDR4 SO-DIMM slots support up to 64GB RAM, and storage options include a 2.5″ SATA bay and Mini PCIe slot for mSATA. The 9 to 36VDC wide-range power input via M12 connector and optional ignition on/off control make it equally practical in mobile or vehicle-mounted applications. Supporting Windows 10 and Windows 11, the DPC-8156 is a versatile panel PC for factory automation, transportation HMI, energy monitoring, and process control. Available from Recab, your Nordic partner for Darveen industrial panel PC solutions.
Features
  • The 10th Gen Intel Core i5 or i7 processor delivers high-performance fanless computing for demanding industrial tasks.
  • A modular CPU and I/O board design enables straightforward upgrades without full system replacement.
  • The 15.6-inch LED display supports 1920x1080 resolution with resistive or projected capacitive multi-touch input.
  • IP65-rated aluminum alloy front panel provides reliable dust and water ingress protection in harsh environments.

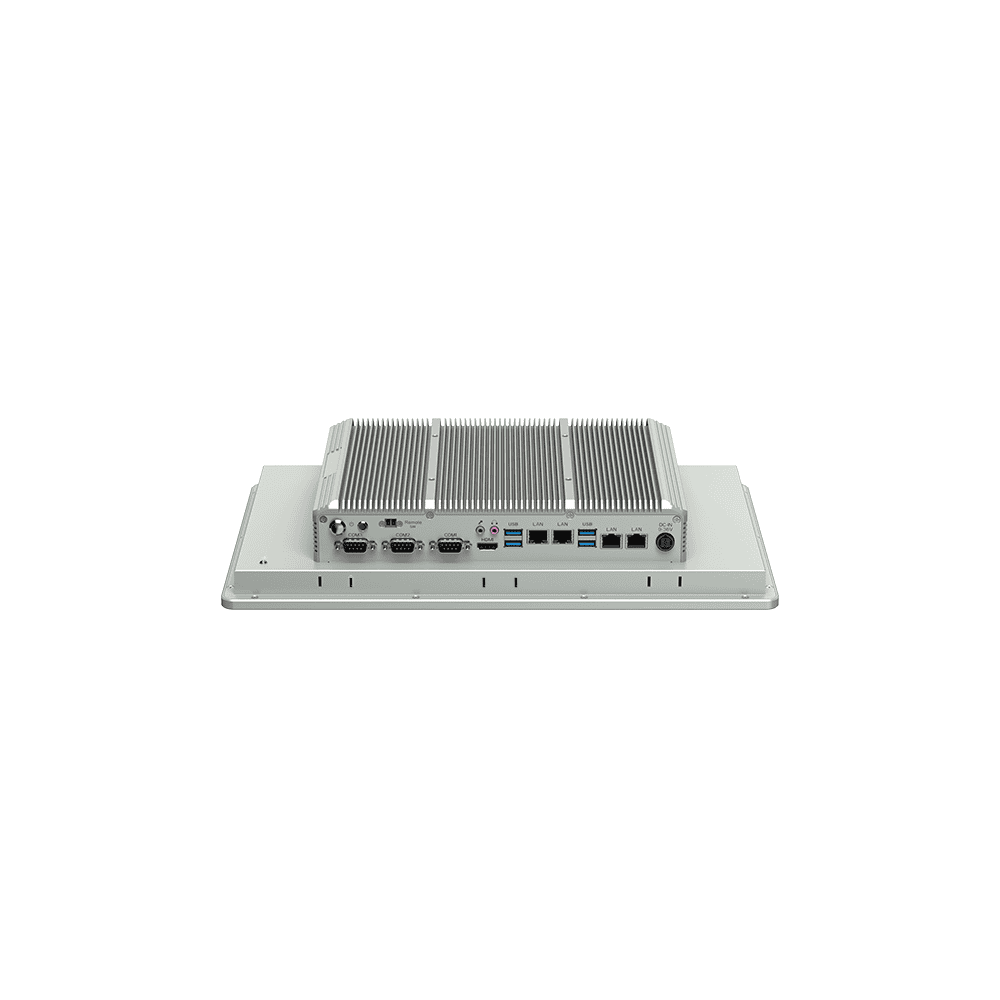

  • Four GbE LAN ports plus 3x COM, 4x USB 3.0, and HDMI offer extensive industrial connectivity options.
  • Wide 9 to 36VDC input via M12 connector with optional ignition control suits vehicle and mobile deployments.
Specifications
CPU Intel Core™ i5-10210U
Memory Up to 64GB DDR4
Display 15.6 inch, 1920x1080
Weight 5.1 kg
Temperature -10 to 50°C
Storage 1x 2.5" SATA HDD/SSD
IP Rating IP65
Power 9 to 36 VDC
Dimensions 399 x 249 x 73 mm
Ports 4x USB, 4x LAN, 1x HDMI
  • Factory automation HMI and machine control cabinet installations
  • Transportation and vehicle-mounted operator interface systems
  • Industrial process control and energy management displays
  • Outdoor kiosk and rugged field operator terminal deployments
