GOT315B-ADL-WCD – 15.6″ IP65 Fanless Touch Panel PC with Intel 14th Gen by Axiomtek

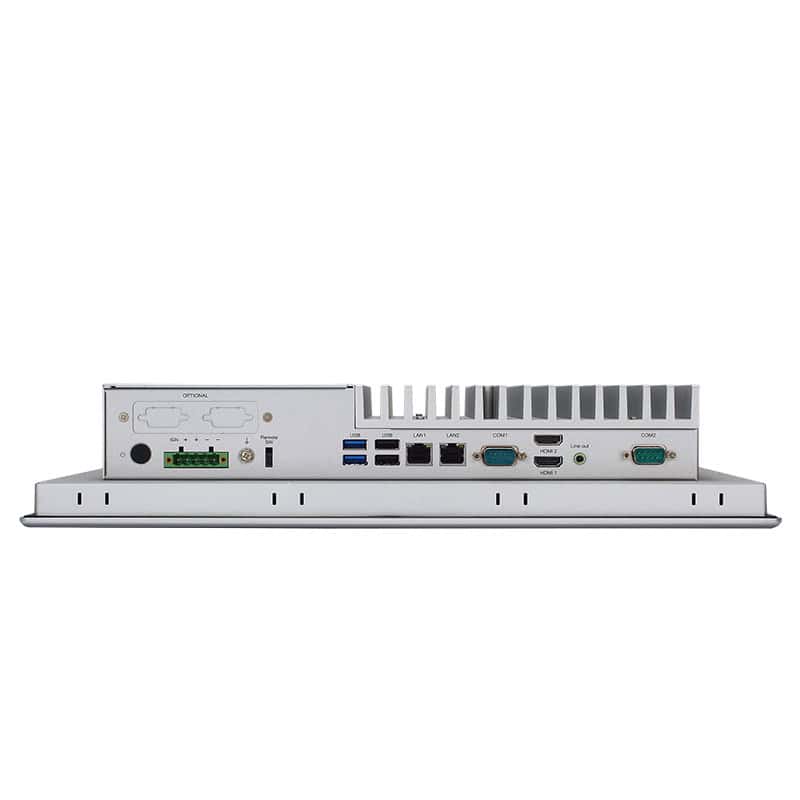

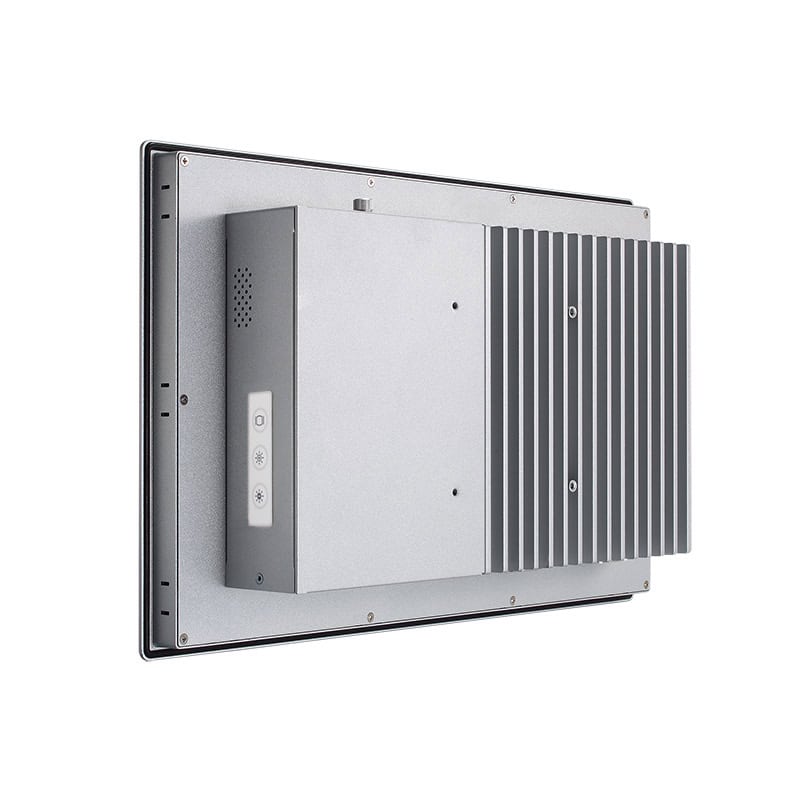

The Axiomtek GOT315B-ADL-WCD is a heavy-duty 15.6-inch full HD fanless industrial touch panel PC built on the LGA1700 socket platform, accepting 14th, 13th, and 12th-Generation Intel Core i9, i7, i5, i3, and Pentium processors up to 35W TDP, providing scalable processing performance for factory automation, HMI, SCADA visualisation, and oil pipe monitoring systems that demand long-running reliable operation in demanding industrial environments. The 15.6-inch FHD TFT LCD panel delivers 1920 x 1080 resolution at 450 nits brightness with Intel UHD Graphics 770, and the flat front panel with IP65-rated bezel provides ingress protection against dust and water on the production floor or in outdoor control cabinets. Projected capacitive touch input ensures responsive multi-touch operator interaction, and the fanless design eliminates cooling failure risks in continuous 24/7 industrial operation. System memory accepts up to 32 GB DDR4 3200 MHz via a single SO-DIMM slot, and storage is handled by a removable 2.5-inch SATA HDD or SSD with swappable tray for easy field replacement. Network connectivity covers both a standard Gigabit Ethernet port via Intel I219-V and a 2.5GbE port via Intel I225-V for high-throughput network applications. Expansion options include an M.2 Key E 2230 slot with PCIe x1 and USB 2.0 for WLAN modules and a full-size PCIe Mini Card slot with nano SIM for optional 4G/LTE. Four USB ports, two COM ports covering RS-232/422/485, dual HDMI 1.4b outputs, a flexible I/O window for optional COM3/4 and DIO, TPM 2.0, and AMI UEFI BIOS with 255-level watchdog timer complete the specification. The 10–36V DC terminal block input at typical 12/24V and a 409.2 x 76.8 x 265.2 mm enclosure support panel, VESA, wall, and desktop mounting. Certified to CE, FCC, UKCA, and RoHS. Available from Recab, your Nordic partner for Axiomtek industrial panel PC solutions.
