ACP-2106

AAEON ACP-2106 – 10 Inch Fanless Industrial Panel PC with Intel N-series Processor

The AAEON ACP-2106 is a compact 10 inch fanless industrial panel PC powered by Intel N-series processors, designed for HMI, kiosk, and machine interface applications. With an IP65-rated aluminum front bezel, projected capacitive multi-touch, dual 2.5GbE, and support for Panel Mount and VESA mounting, it offers a clean and robust solution for space-constrained industrial environments. Available from Recab across the Nordic and Baltic regions.
contct-now-icon (2) Get datasheet
Description

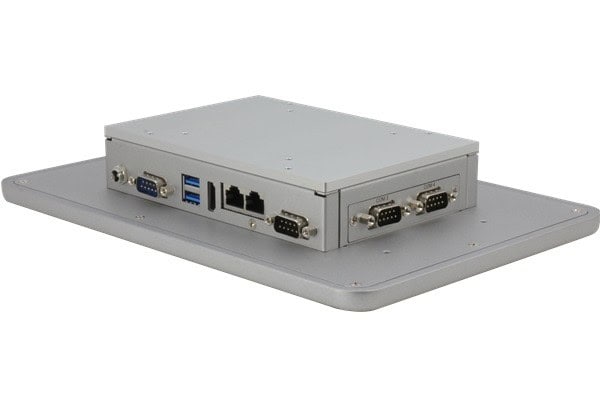

The AAEON ACP-2106 is a fanless all-in-one panel PC built for integration into industrial HMI panels, self-service kiosks, and machine control stations where reliability, compact form factor, and straightforward mounting are priorities. The system runs Intel Processor N50 or N97 N-series processors with up to 32GB DDR5 memory, providing efficient performance for Windows 10 and Windows 11 IoT Enterprise applications without the noise, maintenance, or heat concerns of a fan-cooled system. The 10.1 inch TFT LCD display at 1280 x 800 resolution offers 300 cd/m2 luminance and 170-degree viewing angles with a projected capacitive multi-touch screen at 90 percent light transmission. The front bezel is constructed from IP65-rated aluminum, protecting against dust and water ingress in production and washdown environments. Connectivity includes dual Intel I226 2.5GbE ports, USB 3.2, USB 2.0, dual RS-232/422/485 serial ports, and HDMI 1.4b. Expansion is provided via a full-size mPCIe slot for PCIe or SATA storage, an M.2 3052 B-Key slot with Nano SIM for wireless options, and an M.2 2230 E-Key slot. The unit supports Panel Mount and VESA 100 mounting and operates from -5°C to 50°C. CE and FCC Class A certified. Available from Recab, your Nordic distributor for AAEON industrial computing solutions.
Features
  • Fanless design with Intel Processor N50 or N97 N-series for silent and maintenance-free operation
  • IP65-rated aluminum front bezel for dust and water resistance in production environments
  • Dual Intel I226 2.5GbE Ethernet ports for high-bandwidth industrial network connectivity
  • Projected capacitive multi-touch display with 90 percent light transmission
  • Support for Panel Mount and VESA 100 mounting configurations
  • M.2 expansion slots for wireless and storage options including LTE via Nano SIM
Specifications
Processor Intel® Processor N50/N97
Memory DDR5, Up to 32GB
Ethernet 2.5GbE x 2
USB USB 3.2 x 2, USB 2.0 x 2
HDMI HDMI 1.4b x 1
Temperature Operating: -5°C to 50°C
Storage Full size mPCIe
Size 10.5" x 7.26" x 1.69"
Weight 3.3 lb (1.5 Kg)
Resolution 1280 x 800
  • Industrial HMI and machine control panels
  • Self-service kiosk and operator interface terminals
  • Factory automation display and control stations
  • Washdown and light industrial environments requiring IP65 front protection

Get datasheet
