Nuvo-2615RL

Nuvo-2615RL Series – EN50155 Railway Computer with M12 PoE+ by Neousys Technology

The Neousys Technology Nuvo-2615RL Series is a fanless, EN50155 and EN45545-compliant railway computer designed for video-based rolling stock applications including network video recording and video analytics. Powered by an Intel Elkhart Lake Atom x6425E quad-core processor, it operates across -40°C to 70°C and accepts a wide 43V to 160V DC input. Four M12 x-coded PoE+ GbE ports deliver up to 50W total power budget for IP camera connectivity, while a built-in SuperCAP UPS sustains operation for over 30 seconds during power outages. Available from Recab, your Nordic partner for Neousys Technology railway computer solutions.
contct-now-icon (2) Get datasheet
Description
The Neousys Technology Nuvo-2615RL Series is a purpose-built EN50155 and EN45545-compliant fanless railway computer engineered for vision-based rolling stock deployments such as NVR systems and onboard video analytics. At its core is an Intel Elkhart Lake Atom x6425E quad-core processor running at up to 3.0GHz with a 12W TDP, delivering approximately 1.8 times the performance of the previous Apollo Lake Atom generation. The system meets EN50155 Class OT4 for fanless operation from -40°C to 70°C, making it suitable for the full range of railway environmental conditions. Its isolated 43V to 160V wide-range DC input handles the voltage fluctuations typical of 110VDC railway power systems, and the Nuvo-2615RL variant adds a 2500 watt-second SuperCAP UPS that sustains the system for more than 30 seconds after a power outage before triggering a controlled software shutdown to protect data and hardware. Connectivity for IP cameras is provided by four PoE+ GbE ports via rugged M12 x-coded connectors with a total power budget of 50W, and the system supports up to 5TB of onboard storage through a combination of an M.2 2280 SATA SSD and a front-accessible 2.5-inch HDD tray accommodating drives up to 15mm in height. Expansion is available through two full-size mini-PCIe sockets for WiFi, GNSS, and CAN modules, plus an M.2 3042/3052 B Key socket for 4G or 5G mobile broadband. The platform is CE/FCC Class A certified and complies with IEC 61373 for vibration and shock, making the Nuvo-2615RL and Nuvo-2610RL models ideal for demanding rolling stock video surveillance and analytics in metro, regional, and mainline rail environments. Available from Recab, your Nordic partner for Neousys Technology railway computer solutions.
Features
  • The Intel Elkhart Lake Atom x6425E quad-core processor delivers up to 3.0GHz performance within a 12W thermal envelope, meeting EN50155 Class OT4 for -40°C to 70°C fanless operation.

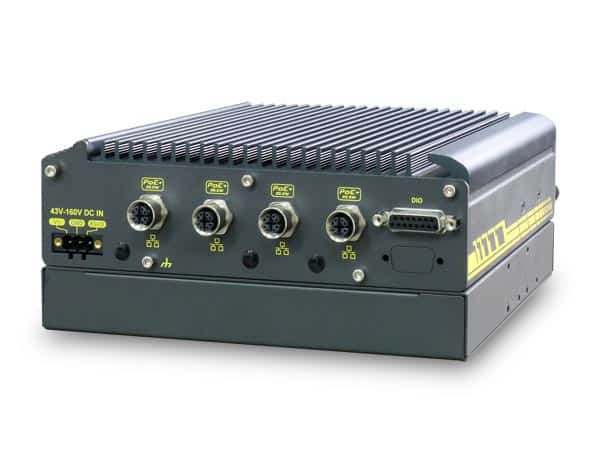

  • Four M12 x-coded PoE+ GbE ports provide rugged IP camera connectivity with a combined 50W power budget suited to demanding rolling stock installations.
  • A built-in 2500 watt-second SuperCAP UPS sustains operation for over 30 seconds after power loss, with a controlled MCU-triggered shutdown to protect data and hardware.
  • The isolated 43V to 160V wide-range DC input accommodates standard 110VDC railway supply voltages and protects against the voltage spikes common in traction environments.
  • Front-accessible 2.5-inch HDD tray supporting drives up to 15mm height and 5TB capacity, combined with an M.2 2280 SATA SSD, enables high-capacity onboard video storage.
  • Two full-size mini-PCIe sockets and one M.2 3042/3052 B Key socket allow flexible expansion for WiFi, GNSS, CAN, 4G, and 5G communication modules.
Specifications
Processor Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/3.0GHz 12W processor
Graphics Integrated Intel® UHD Graphics
Memory Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket
TPM Supports fTPM 2.0
Mini-PCIe 1x full-size mini PCI Express socket with PCIe and USB 2.0 signal and 1x full-size mini PCI Express socket with USB 2.0 signal
M.2 B key 1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal micro SIM socket
Operating temperature -40°C to 70°C*, compliant with EN50155 Class OT4
  • Onboard NVR and IP camera recording in rolling stock
  • Video analytics and AI inference on passenger trains
  • Railway wayside monitoring with wide-voltage DC power systems
  • Rolling stock data storage and network management applications
