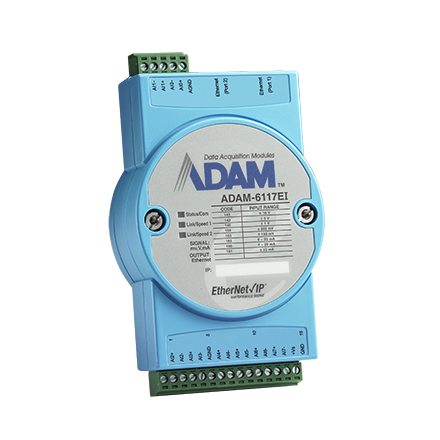

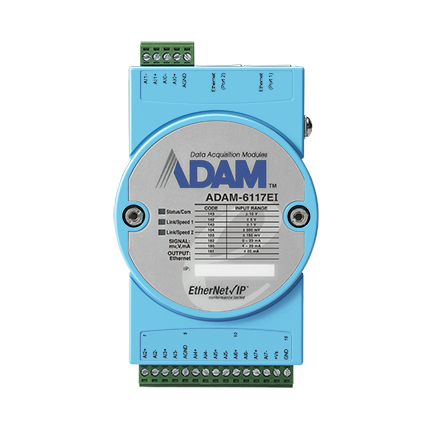

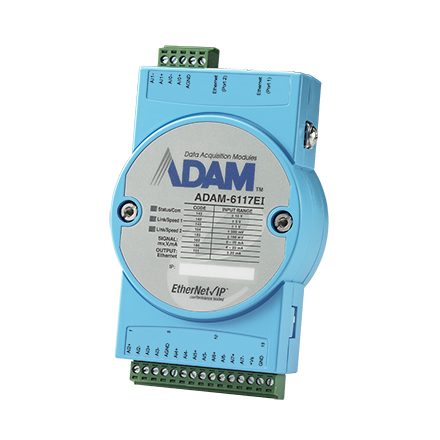

ADAM-6117 – 8-ch Isolated Analog Input EtherNet/IP Module by Advantech

The ADAM-6117 from Advantech is a versatile 8-channel isolated analog input module engineered for real-time Ethernet-based industrial data acquisition applications. This module supports both EtherNet/IP and PROFINET communication protocols, making it an ideal choice for integration into diverse industrial automation environments. The differential input channels provide exceptional noise immunity with 92 dB common mode rejection at 50/60 Hz and 67 dB normal mode rejection, ensuring accurate measurements in electrically noisy industrial settings. The module accepts a wide variety of input types including millivolt, volt, and milliamp signals with ranges spanning ±150 mV to ±10 V for voltage and 0-20 mA or 4-20 mA for current measurements. With 16-bit resolution and accuracy of ±0.1% to ±0.2% of full scale range depending on input type, the ADAM-6117 delivers precise analog data conversion for critical monitoring applications. Safety and reliability are ensured through 2,500 VDC isolation protection, built-in TVS/ESD protection, and power reversal protection. The high common mode voltage rating of 200 VDC allows safe operation in demanding electrical environments. The module features dual RJ-45 connectors enabling daisy chain network topology, reducing cabling complexity in distributed I/O architectures. Operating within a temperature range of -10 to 70°C and humidity range of 20 to 95% RH non-condensing, the ADAM-6117 performs reliably in various industrial conditions. Power consumption is just 3.5 W at 24 VDC with a wide input range of 10 to 30 VDC. This module is well-suited for factory automation, process control, machine monitoring, and building management systems where reliable analog signal acquisition is essential. Available from Recab, your Nordic partner for Advantech industrial I/O solutions.
