ADAM-5017

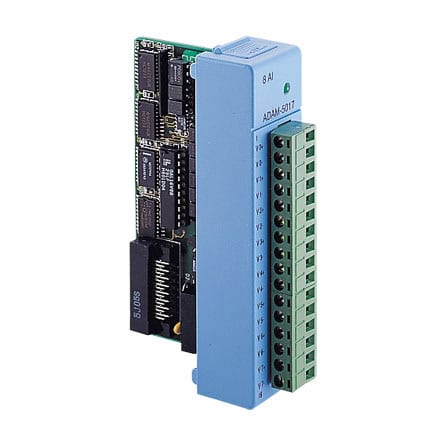

ADAM-5017 – 8-Channel Analog Input Module by Advantech

The ADAM-5017 is an 8-channel analog input module from Advantech designed for distributed data acquisition and control systems. This module features 16-bit effective resolution with differential inputs supporting mV, V, and mA signal types across multiple input ranges including ±150 mV to ±10 V and ±20 mA. With 3000 VDC isolation voltage, 2 MΩ input impedance, and ±0.1% accuracy, it delivers reliable signal acquisition for industrial monitoring applications. The module offers overvoltage protection up to ±35 V and operates at 10 samples per second total with low power consumption of 1 W typical. Available from Recab, your Nordic partner for Advantech industrial I/O solutions.
contct-now-icon (2) Get datasheet
Description
The ADAM-5017 is a versatile 8-channel analog input module from Advantech engineered for distributed data acquisition and control applications in industrial environments. This module provides 16-bit effective resolution across eight differential input channels, supporting multiple signal types including millivolt, voltage, and current measurements. The flexible input range options span from ±150 mV to ±10 V for voltage signals and ±20 mA for current loops, making it suitable for interfacing with a wide variety of industrial sensors and transmitters. The module delivers exceptional signal integrity with 3000 VDC channel-to-channel isolation, protecting sensitive measurement circuits from ground loops and electrical interference common in factory automation environments. With 2 MΩ input impedance for voltage inputs and ±0.1% measurement accuracy, the ADAM-5017 ensures precise data acquisition for process monitoring and quality control applications. The robust overvoltage protection withstands surges up to ±35 V, safeguarding the module against transient conditions in harsh industrial settings. Operating at a combined sampling rate of 10 samples per second with bandwidth optimized for 50 Hz and 60 Hz power line noise rejection at 92 dB CMR, this module excels in factory automation, building management systems, and environmental monitoring installations. The low power consumption of 1 W typical enables deployment in distributed architectures where energy efficiency matters. The ADAM-5017 integrates seamlessly with Advantech ADAM-5000 series base units for RS-485, Ethernet, and other communication interfaces, creating scalable remote I/O solutions for machine automation, energy management, and industrial process control. Available from Recab, your Nordic partner for Advantech industrial I/O solutions.
Features
  • Eight differential input channels with 16-bit effective resolution for precise measurements.
  • Supports multiple input types including mV, V, and mA for sensor flexibility.
  • High isolation voltage of 3000 VDC protects against ground loops and interference.
  • Overvoltage protection withstands surges up to ±35 V for reliable operation.
  • High common mode rejection of 92 dB minimizes power line noise interference.
  • Low power consumption of only 1 W typical enables efficient distributed deployment.
Specifications
Channels 8 differential
Effective Resolution 16-bit
Input Type mV, V, mA
Input Range ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V; ±20 mA
Isolation Voltage 3000 VDC
Fault and Overvoltage Protection Withstands overvoltage up to ±35 V
Sampling Rate 10 samples/sec. (total)
Input Impedance 2 MΩ
Bandwidth 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
Accuracy ±0.1% or better
Zero Drift ±1.5 mV/°C
Span Drift ±25 PPM/°C
CMR @ 50/60 Hz 92 dB min.
Power Consumption 1 W (typical); 1.25 W (max.)
Analog Signal Range ±15 V max.
  • Factory automation process monitoring and data acquisition systems
  • Building management systems for environmental sensor integration
  • Energy management and power monitoring in industrial facilities
  • Remote telemetry and distributed control system applications
