ADAM-4017+

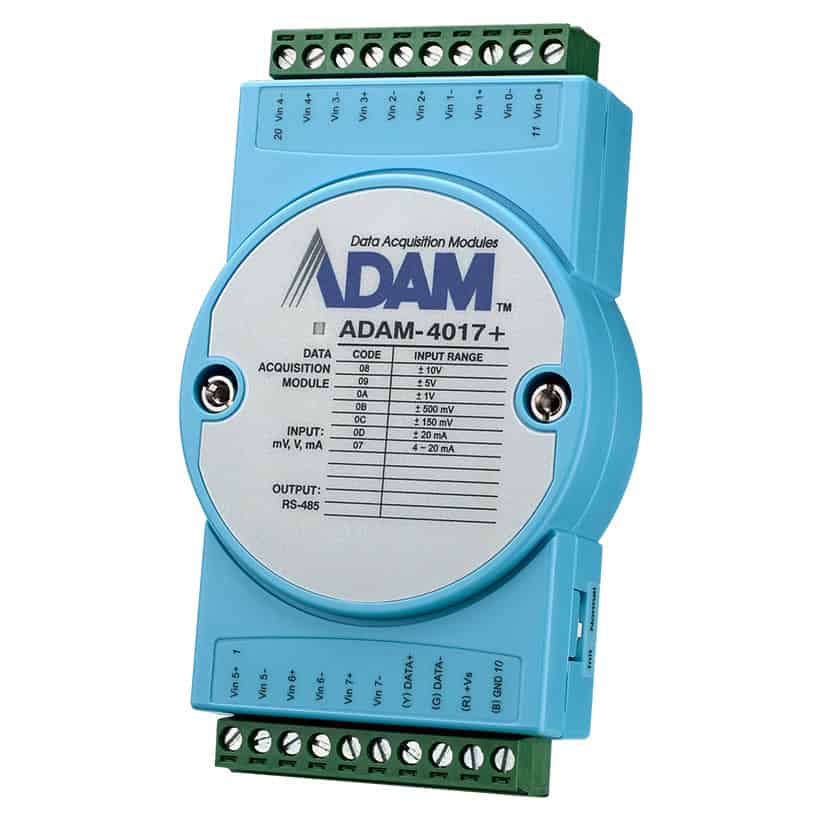

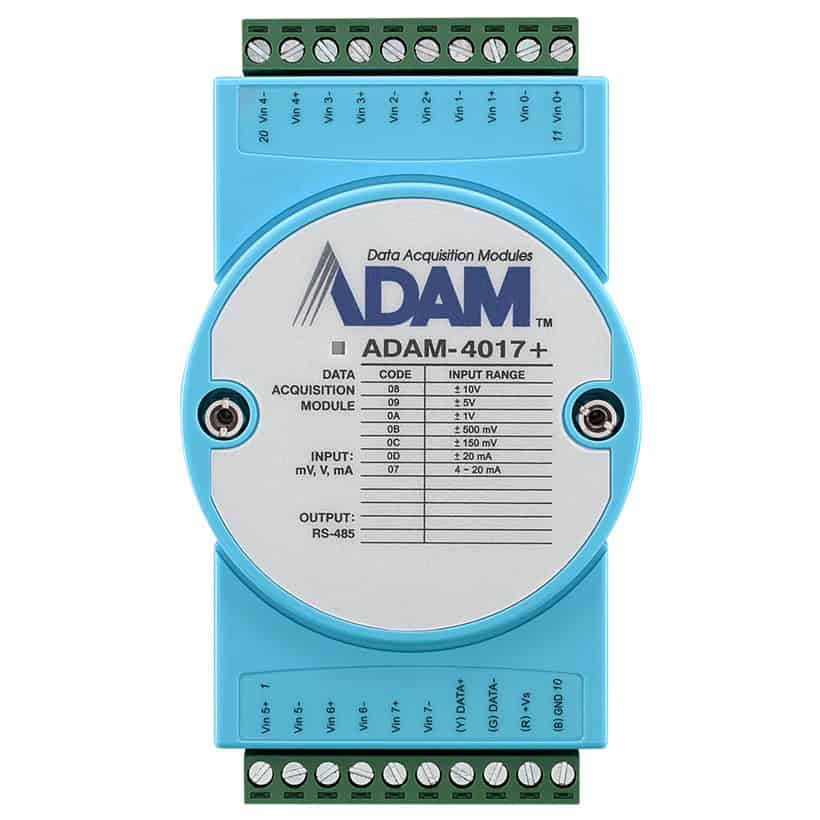

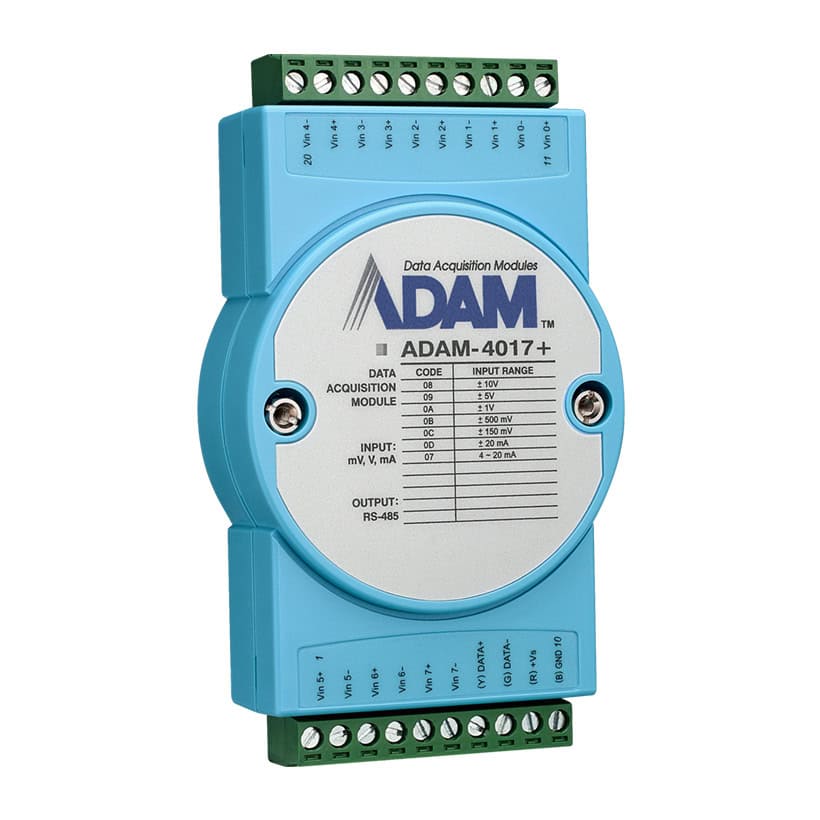

ADAM-4017+ – 8-ch Analog Input Module with Modbus by Advantech

The ADAM-4017+ is an 8-channel analog input module from Advantech designed for industrial data acquisition applications. This RS-485 I/O module features 16-bit resolution, differential inputs supporting voltage and current measurements with ranges including ±150mV to ±10V and 4-20mA. It offers 3000VDC isolation protection, 120dB common mode rejection, and operates across -10 to 70°C temperature range. Supporting both ASCII command and Modbus/RTU protocols, the module includes built-in TVS/ESD protection and watchdog timer functionality for reliable operation in demanding environments. Available from Recab, your Nordic partner for Advantech industrial I/O solutions.
contct-now-icon (2) Get datasheet
Description
The ADAM-4017+ from Advantech is a versatile 8-channel analog input module engineered for precision industrial data acquisition over RS-485 networks. This robust I/O module delivers 16-bit resolution across eight independently configurable differential input channels, supporting a comprehensive range of voltage and current measurements from ±150mV to ±10V and ±20mA current loops including industry-standard 4-20mA signals. The module features exceptional signal integrity with 20MΩ input impedance for voltage mode and 120Ω for current mode, complemented by outstanding noise rejection capabilities including 120dB common mode rejection and 100dB normal mode rejection at 50/60Hz. Industrial reliability is ensured through 3000VDC isolation voltage, ±35VDC overvoltage protection, and built-in TVS/ESD protection circuitry. Communication flexibility is provided via dual protocol support for ASCII commands and Modbus/RTU, enabling seamless integration with SCADA systems, PLCs, and industrial automation platforms. The integrated system and communication watchdog timers with 1.6-second timeout ensure continuous operation even in challenging conditions. Operating on unregulated 10-30VDC power input with just 1.2W consumption at 24VDC, the ADAM-4017+ is suitable for process control, environmental monitoring, building automation, and manufacturing applications where precise analog measurement is critical. The module operates reliably across -10 to 70°C temperature range and features plug-in terminal block connectors accepting 14-22 AWG wiring for straightforward installation. Available from Recab, your Nordic partner for Advantech industrial I/O solutions.
Features
  • Eight independently configurable differential analog input channels with 16-bit resolution for precise measurements.
  • Supports both ASCII command and Modbus/RTU protocols for flexible system integration.
  • High isolation voltage of 3000VDC protects equipment from electrical surges and faults.
  • Wide input voltage range from ±150mV to ±10V and current range up to ±20mA.
  • Built-in TVS and ESD protection ensures reliable operation in harsh industrial environments.
  • System and communication watchdog timers provide automatic recovery from communication failures.
Specifications
Channels 8 differential
Resolution 16-bit
Sampling Rate 10 sample/second (total)
Input Range (Voltage) 0 ~ 150 mV, 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 5 V, 0 ~ 10 V, ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V
Input Range (Current) ± 20 mA, 0 ~ 20 mA, 4 ~ 20 mA
Input Impedance Voltage: 20 MΩ, Current: 120 Ω
Accuracy Voltage mode: ±0.1% or better, Current mode: ±0.2% or better
Isolation Voltage 3,000 VDC
Power Input Unregulated 10 ~ 30 VDC
Power Consumption 1.2 W @ 24 VDC
Supported Protocols ASCII command and Modbus/RTU
Operating Temperature -10 ~ 70°C (14 ~ 158°F)
CMR @ 50/60 Hz 120 dB
Overvoltage Protection ±35 VDC
Watchdog Timer System (1.6 second) & Communication
  • Process control and monitoring in industrial manufacturing facilities
  • Environmental monitoring systems for temperature and pressure measurement
  • Building automation and HVAC system data acquisition
  • SCADA systems for remote industrial equipment monitoring
