Micro-ATX (µATX)

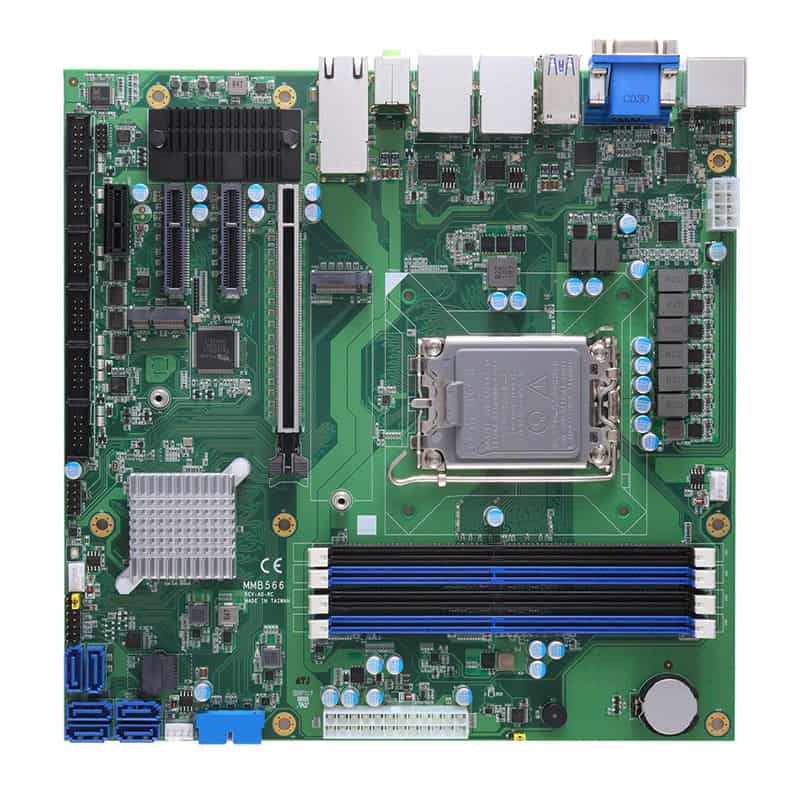

The Axiomtek MMB566 is a Micro-ATX industrial motherboard supporting 12th, 13th, and 14th generation Intel Core LGA1700 processors up to 125W, designed for performance-intensive industrial and automation applications. It features four DDR4-3200 DIMM slots up to 128GB, quad-view display outputs via two HDMI, one DisplayPort++, and VGA, dual 2.5GbE LAN with optional dual 10GbE, six SATA 3.0 ports with RAID, ten USB 3.2 Gen 1 ports, and six COM ports. The MMB566 is well suited to industrial machine control, surveillance, and HMI platforms. Available from Recab, your Nordic partner for Axiomtek industrial motherboard solutions.

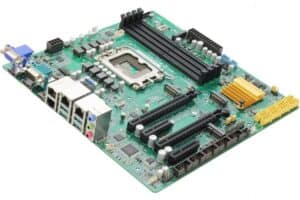

The AAEON MAX-Q670A is a Micro-ATX industrial motherboard designed for demanding embedded and automation applications requiring high processing power and multi-display output. Supporting 12th, 13th, and 14th generation Intel Core LGA1700 processors with TDP up to 125W, Intel Q670 Express chipset, and DDR5 memory up to 192GB across four DIMM slots, it offers PCIe Gen 5 expansion, eight SATA III ports, and four independent display outputs. With dual GbE LAN, onboard TPM 2.0, and extensive COM port support, it suits factory automation, machine vision, and industrial control workloads. Available from Recab, your Nordic partner for AAEON industrial motherboard solutions.

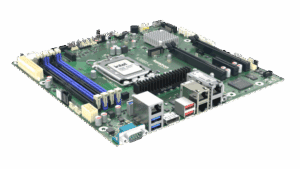

The Kontron K3881-C µATX is an industrial server motherboard designed and manufactured in Germany, supporting Intel Xeon 6300 and E-2400 series processors as well as Pentium Gold G7400 variants in the LGA1700 socket at up to 95 W TDP, paired with the Intel C266 chipset. DDR5-5600 ECC UDIMM memory up to 128 GB, dual 10 GbE via Intel E610, PCIe Gen5 x16 expansion, a custom BMC with Redfish and IPMI remote management, and 5G readiness make it a strong fit for industrial edge server and entry-level cloud applications. Available from Recab, your Nordic partner for Kontron industrial server motherboard solutions.
