MAX-Q670A

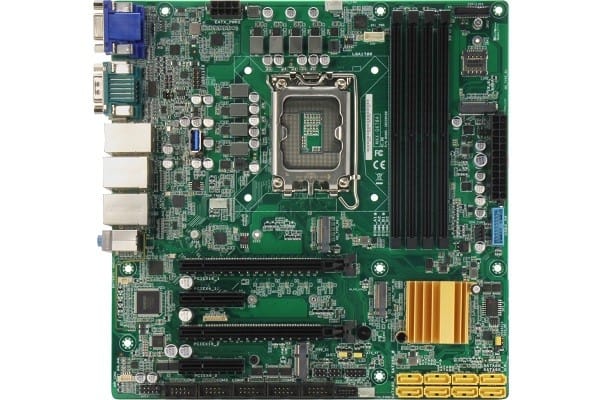

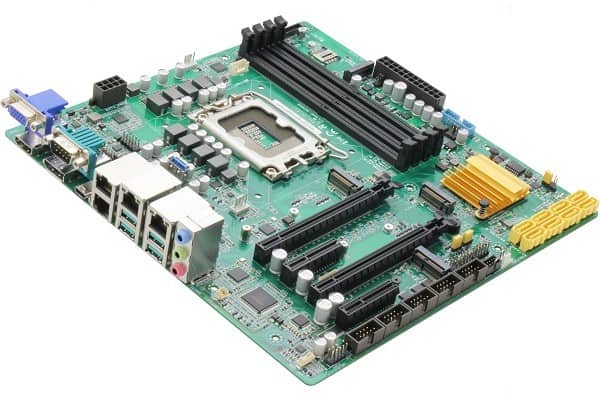

MAX-Q670A – Micro-ATX Industrial Motherboard with Intel LGA1700 by AAEON

The AAEON MAX-Q670A is a Micro-ATX industrial motherboard designed for demanding embedded and automation applications requiring high processing power and multi-display output. Supporting 12th, 13th, and 14th generation Intel Core LGA1700 processors with TDP up to 125W, Intel Q670 Express chipset, and DDR5 memory up to 192GB across four DIMM slots, it offers PCIe Gen 5 expansion, eight SATA III ports, and four independent display outputs. With dual GbE LAN, onboard TPM 2.0, and extensive COM port support, it suits factory automation, machine vision, and industrial control workloads. Available from Recab, your Nordic partner for AAEON industrial motherboard solutions.
contct-now-icon (2) Get datasheet
Description
The AAEON MAX-Q670A is a feature-rich Micro-ATX industrial motherboard built for engineers deploying high-performance embedded systems in factory automation, machine vision, and industrial computing environments. It supports 12th, 13th, and 14th generation Intel Core processors in the LGA1700 socket, including Alder Lake and Raptor Lake families, with a maximum TDP of 125W and the Intel Q670 Express chipset providing a stable, enterprise-class platform. Memory capacity reaches up to 192GB via four DDR5 4000MHz DIMM slots in a dual-channel architecture, providing substantial bandwidth for compute-intensive tasks. The MAX-Q670A features two PCIe Gen 5 x16 slots, two PCIe x4 slots, and four independent display outputs spanning HDMI 2.0, DisplayPort 1.4, VGA, and LVDS/eDP, making it ideal for multi-screen industrial HMI and surveillance applications. Storage is well covered with eight SATA III ports supporting RAID 0, 1, 5, and 10, plus two M.2 2242/2280 M-Key slots for NVMe SSDs. Connectivity includes dual GbE LAN with optional 2.5GbE upgrade, USB 3.2 Gen 2, six RS-232 COM ports with one supporting RS-232/422/485, and an 8-bit DIO interface. The M.2 B-Key slot with Micro SIM and M.2 E-Key for WiFi/BT round out the wireless expansion options. Onboard TPM 2.0, watchdog timer, hardware monitoring, and Wake-on-LAN support complete the industrial feature set. The MAX-Q670A supports Windows 10 and 11 64-bit and carries CE and FCC Class A certification. Available from Recab, your Nordic partner for AAEON industrial motherboard solutions.
Features
  • Supports 12th to 14th Gen Intel Core LGA1700 processors with TDP up to 125W for demanding workloads
  • Four DDR5 4000MHz DIMM slots deliver up to 192GB system memory in dual-channel configuration
  • Dual PCIe Gen 5 x16 slots provide high-bandwidth expansion for accelerator cards and network adapters
  • Eight SATA III ports with RAID 0, 1, 5, and 10 support flexible and redundant storage configurations

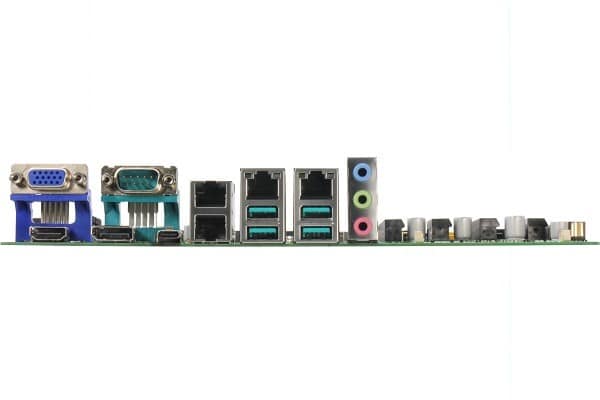

  • Four independent display outputs including HDMI 2.0, DP 1.4, VGA, and LVDS/eDP enable multi-screen setups
  • Onboard TPM 2.0, hardware monitoring, and watchdog timer deliver robust industrial reliability and security
Specifications
Processor 12th/13th/14th Gen Intel
Chipset Intel Q670 Express
Memory Up to 192GB DDR5
Ethernet RJ-45 GbE x2, 2.5GbE optional
Audio Realtek ALC897
Expansion PCIe Gen 5, Gen 3, Gen 4
Power 8-pin 12V ATX
Weight 1.76 lb
Temp Range 0°C to 60°C
Certifications CE & FCC Class A
  • Factory automation and industrial control system computing
  • Machine vision and multi-display industrial HMI applications
  • Embedded computing for surveillance and security infrastructure
  • High-performance edge server and workstation deployments
