MMB566-Q670E-S

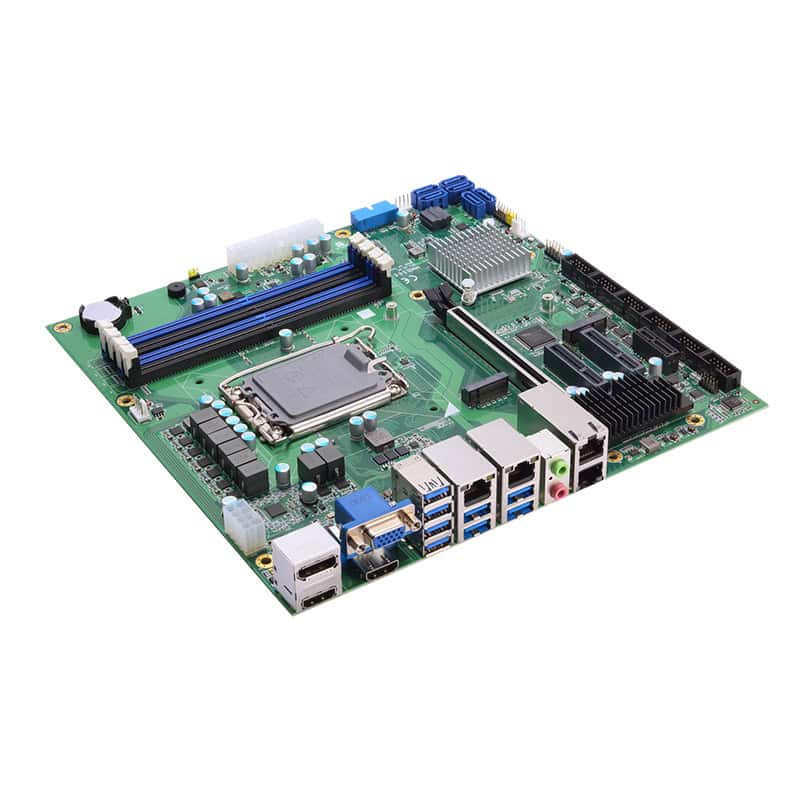

MMB566 – Micro-ATX Motherboard with LGA1700 and 10GbE by Axiomtek

The Axiomtek MMB566 is a Micro-ATX industrial motherboard supporting 12th, 13th, and 14th generation Intel Core LGA1700 processors up to 125W, designed for performance-intensive industrial and automation applications. It features four DDR4-3200 DIMM slots up to 128GB, quad-view display outputs via two HDMI, one DisplayPort++, and VGA, dual 2.5GbE LAN with optional dual 10GbE, six SATA 3.0 ports with RAID, ten USB 3.2 Gen 1 ports, and six COM ports. The MMB566 is well suited to industrial machine control, surveillance, and HMI platforms. Available from Recab, your Nordic partner for Axiomtek industrial motherboard solutions.
Description
The Axiomtek MMB566 is a powerful Micro-ATX industrial motherboard engineered for system integrators and OEMs building high-performance embedded platforms in factory automation, machine control, surveillance, and industrial HMI applications. It accepts 12th, 13th, and 14th generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors in the LGA1700 socket with processor TDP up to 125W, supported by Intel Q670E, R680E, or H610E chipsets. Four DDR4-3200 Long-DIMM slots provide up to 128GB of system memory, offering ample headroom for data-intensive workloads. The MMB566 delivers quad-view display capability through two HDMI outputs, one DisplayPort++, and one VGA port, driven by Intel UHD Graphics 700 series with shared memory. Storage options include six SATA 3.0 ports with RAID 0, 1, 5, and 10 support plus an M.2 Key M 2280 slot with NVMe, and an M.2 Key E 2230 for wireless expansion. Networking is handled by dual 2.5GbE Intel I226-LM ports, with an optional dual 10GbE configuration via Intel X550-AT2 for bandwidth-demanding applications. Ten USB 3.2 Gen 1 ports and two additional USB 2.0 internal headers cover peripheral connectivity, while serial communication is served by two RS-232/422/485 ports and four RS-232 ports across six COM positions. An 8-bit digital I/O, TPM 2.0 via Intel PTT, hardware monitoring, and a 255-level watchdog timer ensure robust industrial-grade operation. The board measures 244 x 244mm and is powered via a 24+8-pin ATX connector with AT Mode Auto Power support, operating between 0 and 60°C. Available from Recab, your Nordic partner for Axiomtek industrial motherboard solutions.
Features
  • Supports 12th to 14th Gen Intel Core LGA1700 processors up to 125W for compute-intensive industrial workloads
  • Four DDR4-3200 Long-DIMM slots deliver up to 128GB memory for data-heavy embedded applications

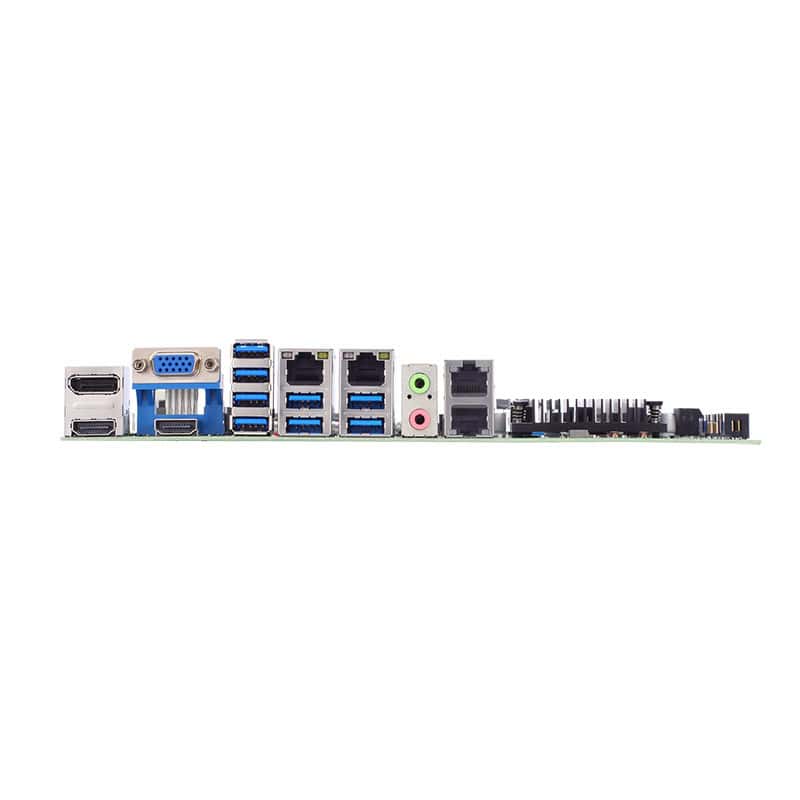

  • Quad-view display output via dual HDMI, DisplayPort++, and VGA supports multi-screen industrial HMI setups
  • Dual 2.5GbE LAN with optional dual 10GbE Intel X550-AT2 meets demanding network throughput requirements
  • Six SATA 3.0 ports with RAID 0/1/5/10 and M.2 NVMe provide flexible high-speed storage configurations
  • Six COM ports including two RS-232/422/485 interfaces ensure broad legacy serial device compatibility
Specifications
CPU LGA1700 socket 14th/13th/12th Gen
Memory 4 x DDR4-3200 Long-DIMM
Chipset Intel® Q670E/R680E/H610E
SATA 6 x SATA 3.0 with RAID
Power 24+8-pin ATX connector
Dimensions 244 x 244 mm
Operating Temp 0°C to +60°C
Ethernet 2 x 2.5GbE, 2 x 10GbE
USB 10 x USB 3.2 Gen 1
Audio HD Codec audio with Realtek ALC888S
  • Industrial machine control and factory automation platform builds
  • Multi-display HMI and operator workstation embedded systems
  • Surveillance and video analytics server deployments
  • High-port-density industrial communication and serial gateway systems
