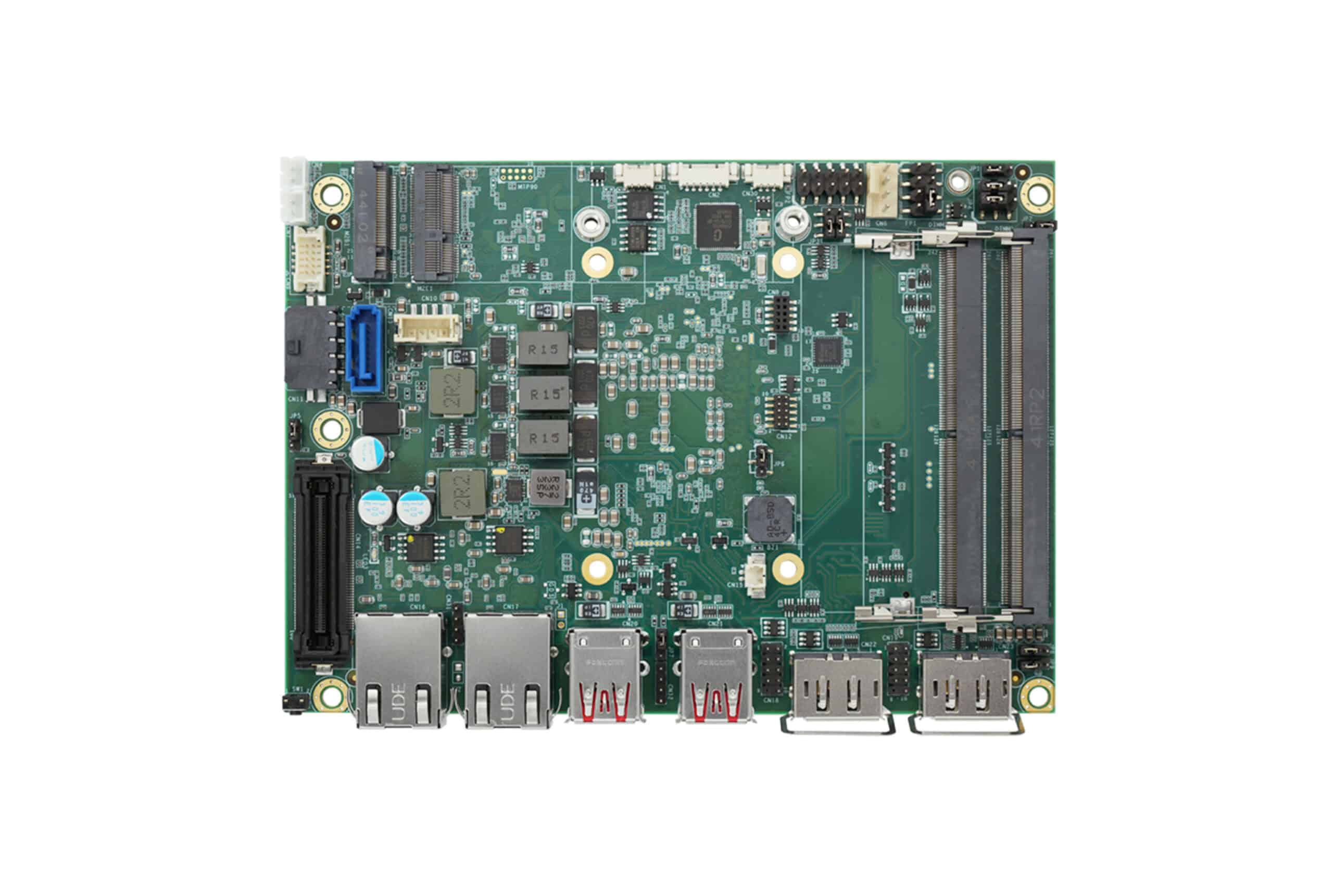

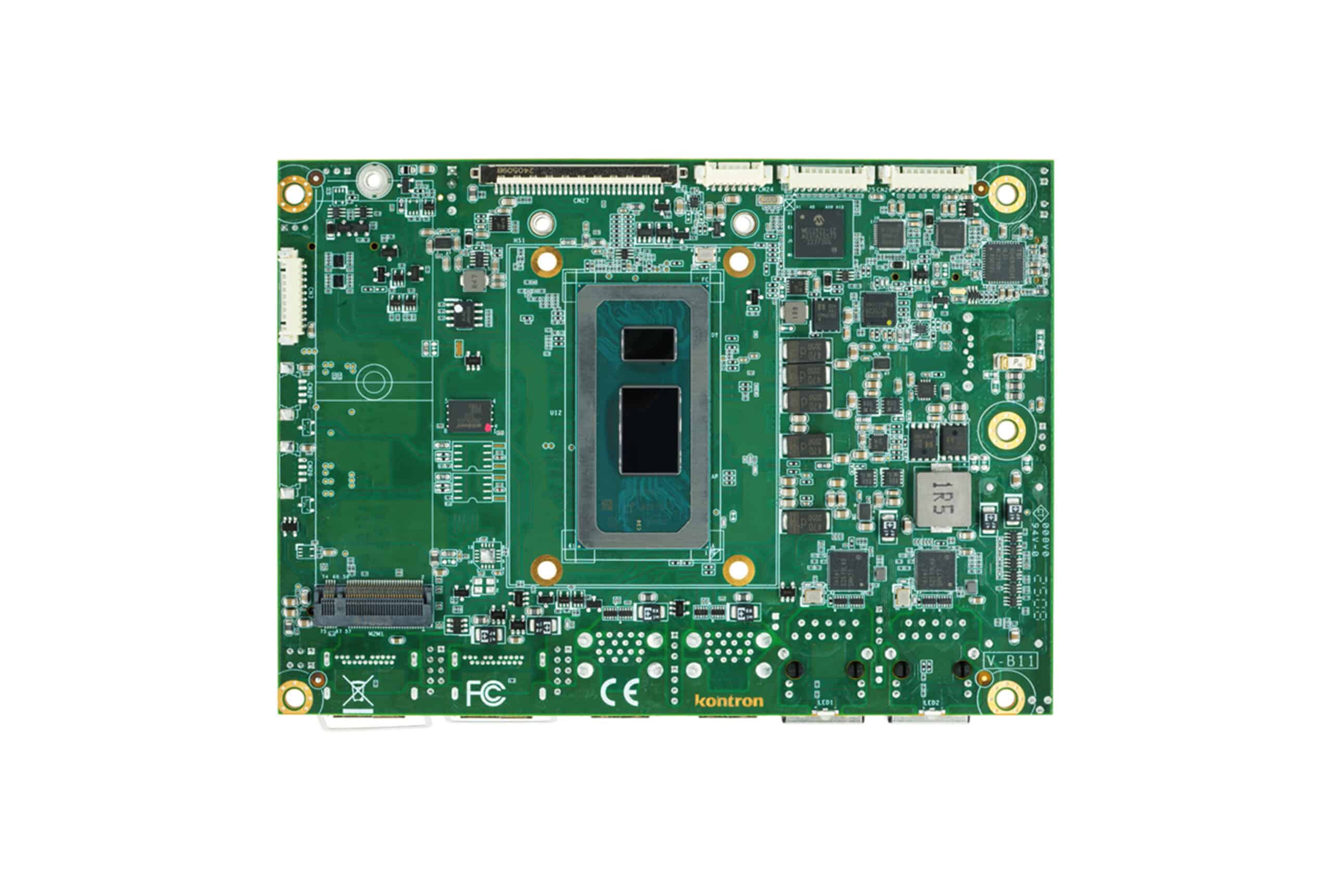

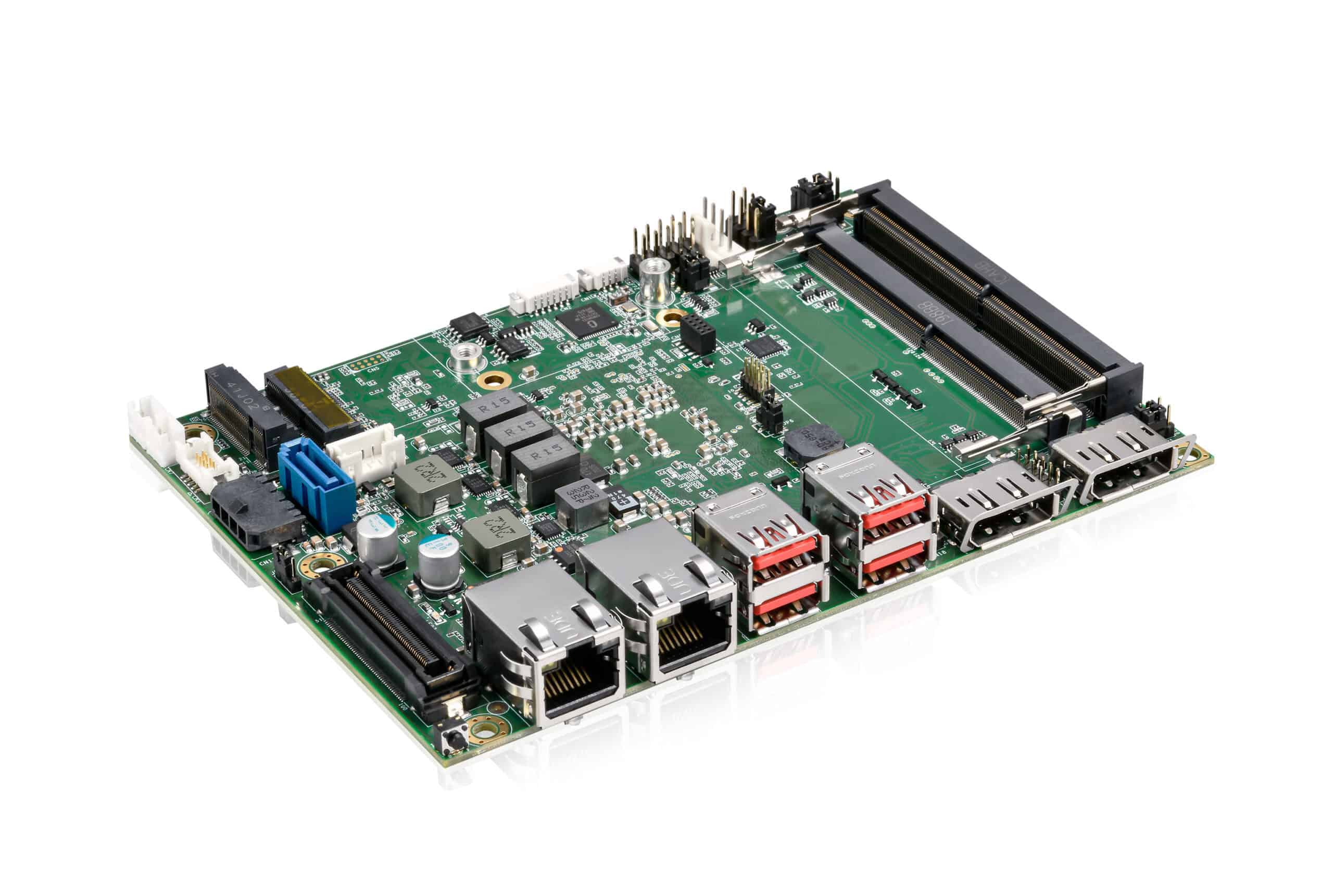

The Kontron 3.5″-SBC-RPL is a high-performance single board computer designed for system integrators and engineers building industrial IoT platforms, factory automation controllers, retail systems, and smart city infrastructure. Based on 13th Generation Intel Core U-Series processors including the Core i7-1365UE, i5-1345UE, i3-1315UE, and Intel U300E, with configurable TDP from 12W to 28W, it delivers scalable processing power suited to both entry-level and compute-intensive embedded workloads. Memory is handled by two DDR5 5200 SO-DIMM sockets supporting up to 96GB, while Intel Iris Xe graphics drive up to four displays simultaneously. Two rear DisplayPort outputs reach 8K UHD at 60Hz, with additional eDP and LVDS connectors for panel integration. Dual Intel I226 2.5GbE ports with optional Time Sensitive Networking on URE series models bring real-time deterministic communication capability for motion control and precision automation tasks.

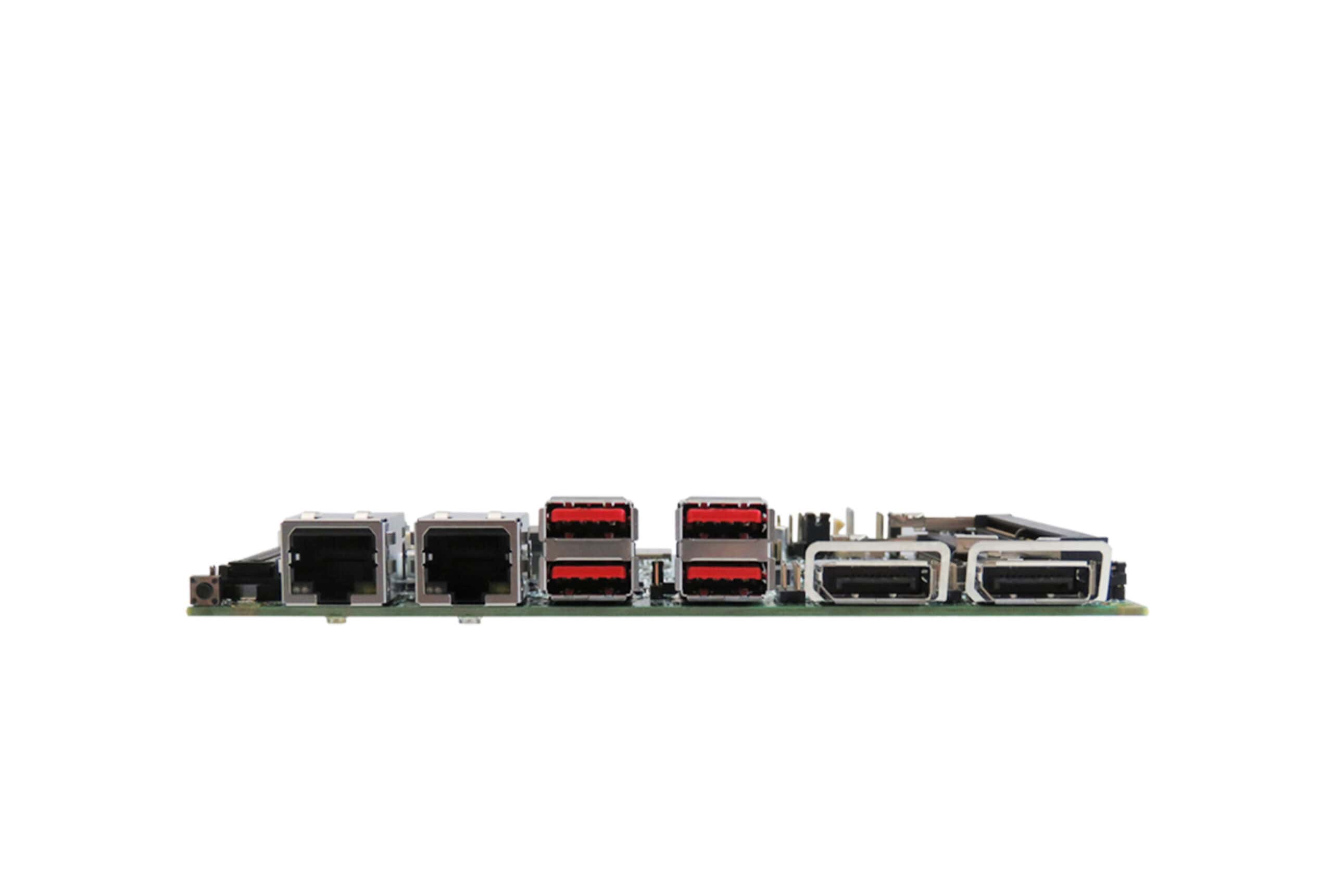

Peripheral I/O includes 4x USB 3.2 Gen 2, 4x USB 2.0, RS-232 and optional RS-232/422/485 serial ports, 4x digital inputs, 4x digital outputs, optional CAN bus, and SATA 3.0. Three M.2 slots cover storage, WWAN, wireless, and high-speed NVMe expansion. An extended board-to-board connector adds PCIe, UART, I2C, SMBus, and GPIO for custom I/O expansion cards. TPM 2.0 via Infineon SLB 9672 covers platform security requirements. Wide power input from 9V to 36V DC suits vehicle and off-grid installations. The extreme temperature model rated -40°C to 85°C is well suited for outdoor infrastructure, railway embedded systems, and defence applications in Nordic conditions. Standard models cover 0°C to 60°C. CE, FCC, ICES, and UKCA Class B certified. Available from Recab, your Nordic distributor for Kontron single board computers and embedded computing solutions.
