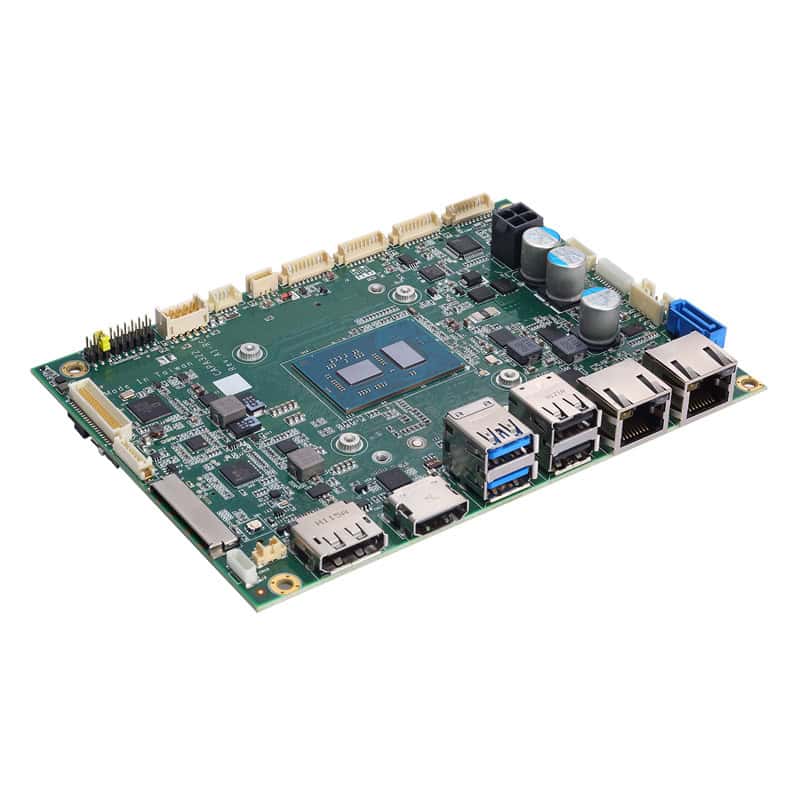

CAPA322 – 3.5″ Embedded SBC with Intel Celeron N6210/J6412 or Atom x6413E by Axiomtek

The Axiomtek CAPA322 is a compact 3.5-inch embedded single-board computer engineered for industrial, transportation, kiosk, and edge computing applications that demand reliable multi-display output, broad connectivity, and low-power fanless operation. Offered with a choice of three processors — Intel Celeron N6210 at 6.5W TDP, Intel Celeron J6412 at 10W TDP, or Intel Atom x6413E at 9W TDP — the CAPA322 accommodates different performance and thermal requirements within the same compact 146 x 104 mm form factor. A single 260-pin DDR4-3200 SO-DIMM slot supports up to 32GB of system memory. Display output covers three independent interfaces — HDMI, DisplayPort, and LVDS — with an optional eDP header, enabling triple-view or quad-view deployments with SoC-integrated UHD graphics. Connectivity is strong for its form factor: dual 2.5GbE LAN via Intel I226-V supports Wake-on-LAN and PXE Boot ROM for remote management, while four USB 2.0 and two USB 3.2 Gen 2 ports serve peripheral and storage needs. Serial connectivity includes two RS-232/422/485 and two RS-232 ports, with 8-channel digital I/O and an SMBus/I2C interface for system integration. Storage is handled via one SATA-600 port alongside an M.2 Key B or mSATA slot (SKU-dependent) and an M.2 Key E slot for wireless expansion. An M.2 Key B 3042/3050 slot adds further I/O options. TPM 2.0 is included for hardware-level security. The wide-range 12–24V DC-in power input with AT Auto Power On function suits unattended deployments. The Intel Atom x6413E variant extends the operating temperature range to -40°C to +80°C, while the Celeron variants cover -20°C to +70°C. Available from Recab, your Nordic partner for Axiomtek embedded board solutions.
