RTX PRO 4000 SFF – Compact Blackwell GPU 24GB GDDR7 by NVIDIA

The NVIDIA RTX PRO 4000 Blackwell SFF Edition is a compact, low-profile professional GPU featuring the revolutionary Blackwell architecture with 24 GB GDDR7 memory and 432 GB/s bandwidth. Equipped with 8,960 CUDA cores, 5th generation Tensor Cores supporting FP4 precision, and 4th generation Ray Tracing Cores, this GPU delivers exceptional AI compute, neural graphics, and ray tracing performance in a small form factor. With PCIe Gen 5 connectivity, four Mini DisplayPort 2.1b outputs, and only 70W total board power, it is ideal for space-constrained workstations, edge devices, and automation systems. Available from Recab, your Nordic partner for NVIDIA professional GPU solutions.

manufacturer

NVIDIA

product model

VCNRTXPRO4000BLP-PB

Overview

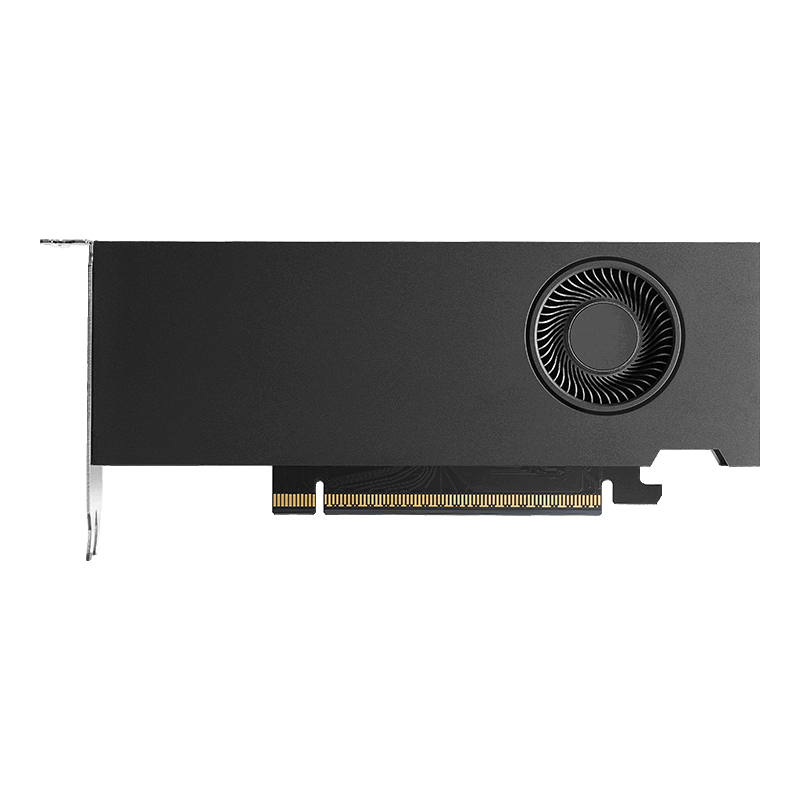

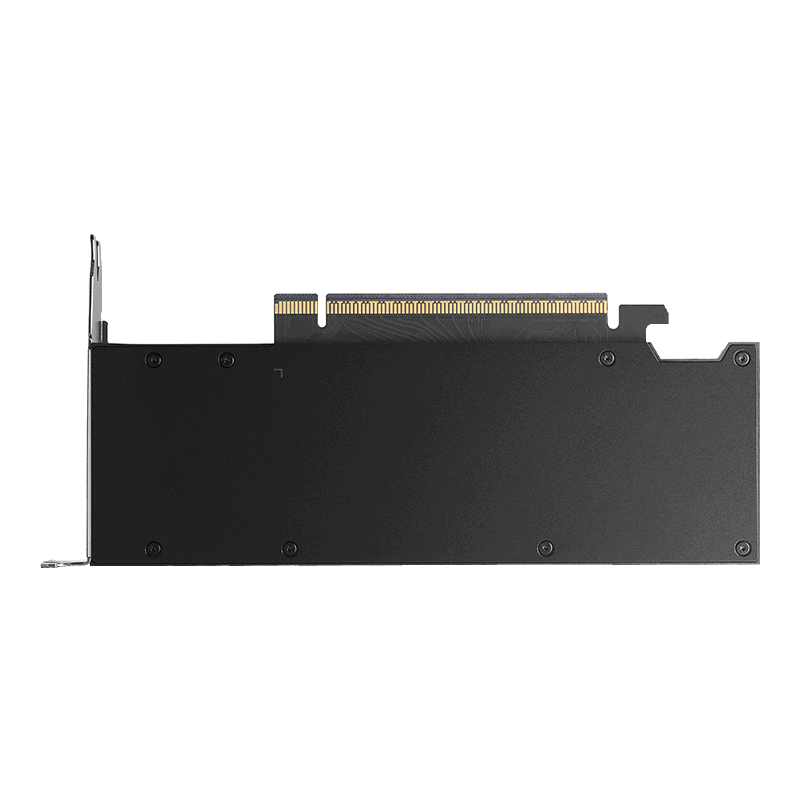

The NVIDIA RTX PRO 4000 Blackwell SFF Edition represents a paradigm shift in compact professional graphics, combining unprecedented AI acceleration, ray tracing capabilities, and neural rendering technology within a dual-slot, half-height form factor measuring just 2.7 by 6.6 inches. Built on the groundbreaking NVIDIA Blackwell architecture, this GPU delivers 8,960 CUDA cores alongside 5th generation Tensor Cores that provide up to 3X performance improvement over previous generations with support for FP4 precision, enabling faster AI model processing and local fine-tuning of large language models. The 4th generation Ray Tracing Cores double the ray-triangle intersection rate, supporting RTX Mega Geometry for up to 100X more ray-traced triangles to create photorealistic, physically accurate scenes. With 24 GB of GDDR7 memory featuring ECC protection and 432 GB/s bandwidth across a 192-bit interface, professionals can tackle large 3D projects, complex AI workloads, and expansive VR environments. The GPU supports PCIe Gen 5 x8 connectivity for doubled data transfer speeds compared to Gen 4, while four Mini DisplayPort 2.1b connectors enable high-resolution displays up to 8K at 240 Hz or 16K at 60 Hz. Dual 9th generation NVENC and 6th generation NVDEC engines with 4:2:2 10-bit encoding support enhance video production workflows. Operating at only 70W total board power with active cooling, the RTX PRO 4000 SFF is designed for design studios, engineering labs, financial institutions, manufacturing facilities, and edge computing applications where space is limited but performance requirements are demanding. Enterprise-grade reliability is ensured through rigorous testing, ISV certifications, and enterprise driver optimization. Available from Recab, your Nordic partner for NVIDIA professional GPU solutions.
AI Accelerated, Compact, High Performance, Low Power

Key highlights

Features

  • Fifth generation Tensor Cores deliver up to 3X AI performance with FP4 precision support.
  • Fourth generation Ray Tracing Cores enable photorealistic rendering with RTX Mega Geometry technology.
  • 24 GB GDDR7 memory with ECC provides 432 GB/s bandwidth for large datasets.
  • PCIe Gen 5 x8 interface doubles data transfer speeds for AI and data science tasks.

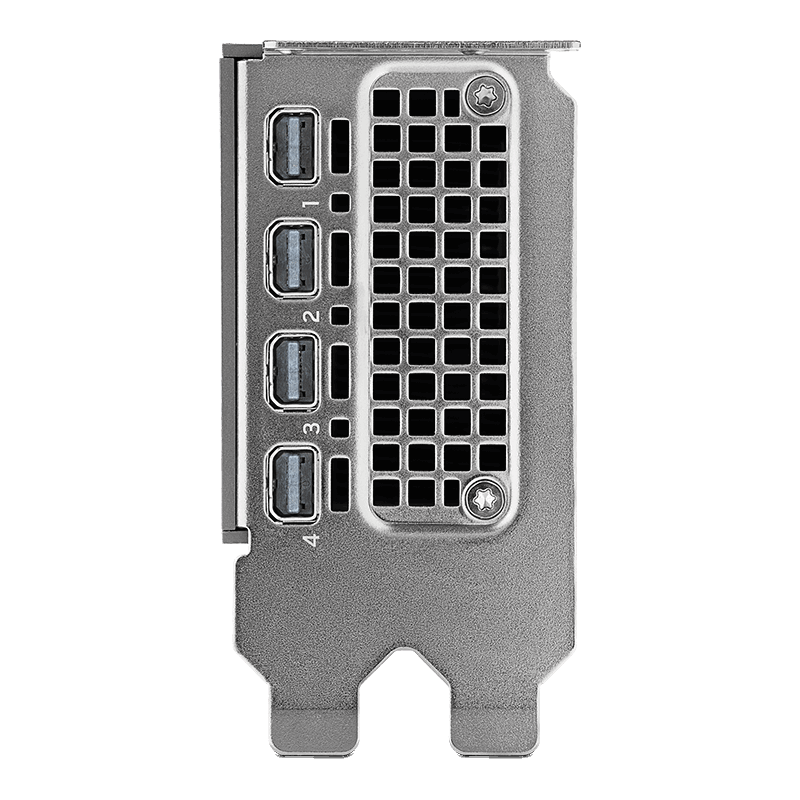

  • Four Mini DisplayPort 2.1b connectors support displays up to 8K at 240 Hz resolution.
  • Compact 2.7 by 6.6 inch dual-slot half-height design fits space-constrained workstations.

Specifications

GPU architecture NVIDIA Blackwell
NVIDIA CUDA Cores 8,960
Tensor Cores 5th Generation
Ray Tracing Cores 4th Generation
GPU memory 24 GB GDDR7 with ECC
Memory interface 192 bit
Memory bandwidth 432 GB/s
System interface PCIe 5.0 x8
Display connectors 4x Mini DisplayPort 2.1b
Max simultaneous displays 4x 3840x2160 @ 165 Hz or 2x 7680x4320 @ 100 Hz
Video Engines 2x NVENC (9th Gen) 2x NVDEC (6th Gen)
Power consumption Total board power: 70 W
Thermal solution Active
Form factor 2.7" x 6.6" L, dual slot, half height
Graphics APIs DirectX 12, Shader Model 6.7, OpenGL 4.6, Vulkan 1.4

Applications

  • AI-driven simulations and generative AI in engineering labs
  • Real-time 3D rendering and visualization for design studios
  • Edge computing and advanced automation in manufacturing facilities
  • Financial modeling and data analysis in space-constrained environments

Resources

Datasheet

https://recab.com/wp-content/uploads/2026/09/NVIDIA-RTX-PRO-4000-Blackwell-SFF-Edition-Datasheet.pdf
