VPX765

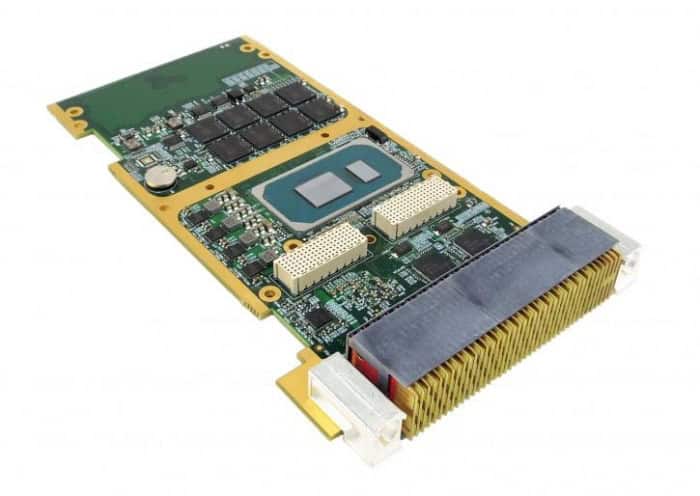

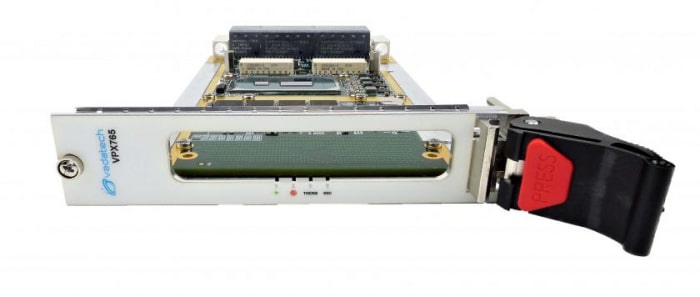

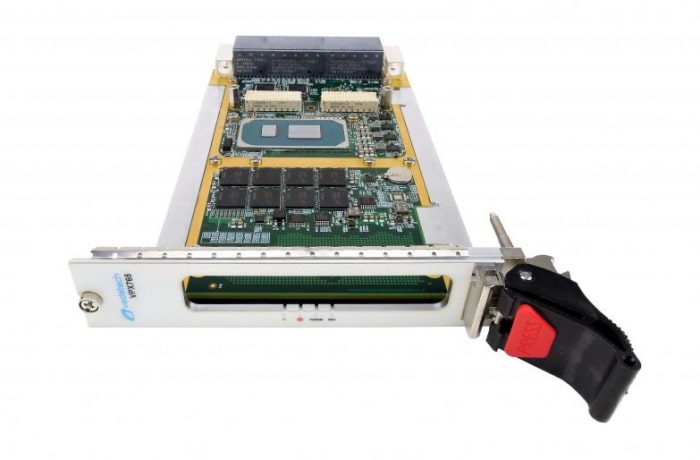

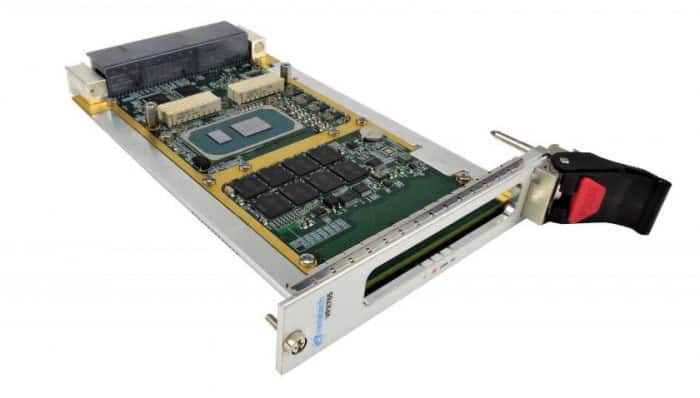

VPX765 – 3U VPX Processor Module with Intel Core i7-1185GRE by VadaTech

The VadaTech VPX765 is a 3U OpenVPX processor module based on the 11th Generation Intel Core i7-1185GRE (Tiger Lake) quad-core processor, operating at 1.8 GHz base with 4.4 GHz turbo frequency. Designed for general-purpose embedded processing, it provides 32 GB DDR4 with in-band ECC, 64 GB SSD, PCIe x4 Gen4 and Gen3 to P1, an XMC expansion slot, dual GbE, and TPM-based secure boot. Configurable across air-cooled and conduction-cooled variants per ANSI/VITA 47, it suits defence, aerospace, and communications applications. Available from Recab, your Nordic partner for VadaTech VPX embedded computing solutions.
contct-now-icon (2) Get datasheet
Description
The VadaTech VPX765 is a 3U OpenVPX processor module built around the 11th Generation Intel Core i7-1185GRE (Tiger Lake) quad-core processor, running at a base frequency of 1.8 GHz with a max turbo of 4.4 GHz, making it a strong choice for engineers designing general-purpose embedded processing solutions in demanding VITA 46-compliant systems. The module includes 32 GB of DDR4 memory with in-band ECC for data integrity and 64 GB of onboard flash SSD for operating system storage, with BIOS support for booting from onboard flash, PXE, or USB. High-speed I/O to the P1 connector includes PCIe x4 Gen4, PCIe x4 Gen3, dual Gigabit Ethernet, DisplayPort, USB 3.2, and RS-232, while the P2 connector carries XMC I/O per VITA 46.9 in an X24s+X8d+X12d mapping. The VPX765 accepts a single XMC mezzanine module, providing a flexible path for I/O expansion. A dedicated health management processor supports IPMI monitoring alongside IPMI activity and user-defined LEDs. Security is provided through an onboard TPM module for trusted platform management and secure boot. The module is available in air-cooled variants from 0°C to +55°C or -40°C to +70°C, and conduction-cooled variants extending to -40°C to +85°C per ANSI/VITA 47 classifications. VadaTech holds ISO9001:2015 and AS9100D certifications. Operating system support includes Linux by default, with VxWorks and Windows available on request. Available from Recab, your Nordic partner for VadaTech VPX embedded computing solutions.
Features
  • 11th Generation Intel Core i7-1185GRE quad-core processor runs at 1.8 GHz base and 4.4 GHz turbo for high single-thread and multi-threaded embedded processing performance.
  • PCIe x4 Gen4 and PCIe x4 Gen3 routed to P1 deliver high-bandwidth backplane connectivity, with the Gen3 link bifurcatable to dual x2 or quad x1 configurations.
  • 32 GB DDR4 memory with in-band ECC and 64 GB onboard SSD provide reliable storage and error-corrected memory for mission-critical processing workloads.
  • Single XMC mezzanine slot with VITA 46.9 I/O routing to P2 enables flexible I/O expansion using standard XMC modules for application-specific connectivity.
  • Onboard TPM module provides trusted platform management with secure boot capability, supporting security requirements in classified and defence deployments.
  • Available in air-cooled and conduction-cooled variants per ANSI/VITA 47, covering operating temperatures from 0°C to +55°C up to -40°C to +85°C for harsh environments.
Specifications
Dimensions 3U, 1" pitch VITA 48.1
Power ~35W without XMC
CPU Intel® Core™ i7-1185GRE
Memory DDR4 32GB with ECC
Storage 64GB Flash
PCIe x4 Gen4, x4 Gen3
LEDs IPMI, activity indicators
Operating System Linux default
Warranty Two years
  • Defence and aerospace general-purpose embedded processing in VPX chassis
  • Rugged signal processing and mission computing for military platforms
  • Electronic warfare and ISR payload processing requiring XMC mezzanine expansion
  • Tactical communications systems demanding high-performance processor modules
