TR G4x/msd

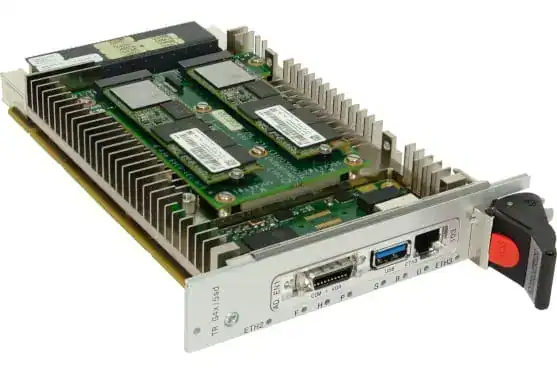

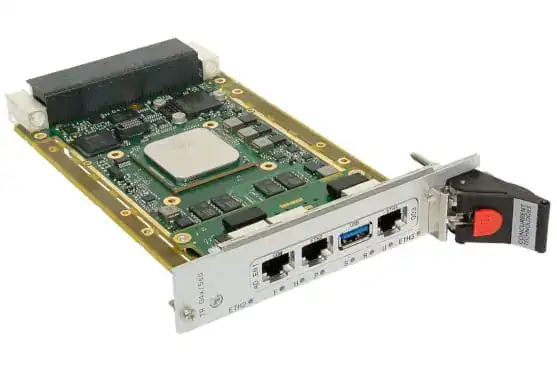

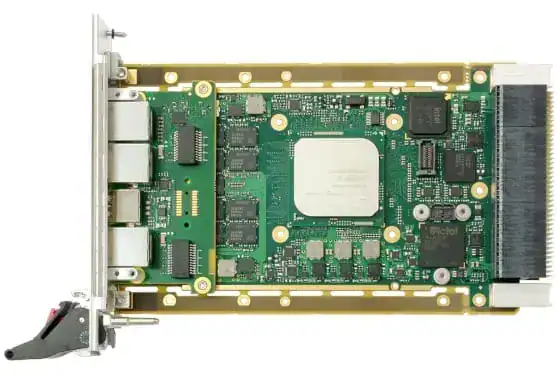

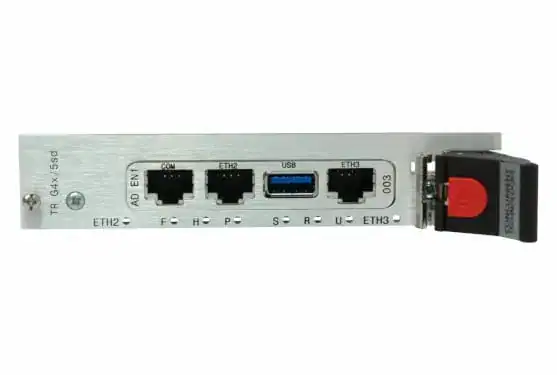

TR G4x/msd – 3U VPX SWaP-Optimised Server Board by Concurrent Technologies

The Concurrent Technologies TR G4x/msd is a 3U OpenVPX computing board powered by the Intel Xeon Processor D-1500 Family, designed for SWaP-optimised rugged server applications in defence, aerospace, and communications. It supports up to 16 cores and up to 64 GBytes of soldered DDR4 ECC DRAM, with 10 Gigabit and Gigabit Ethernet, PCIe expansion, and multiple local storage options including M.2 and 2.5-inch SSD. Separate control and data planes enable secure multi-processor architectures with long life-cycle support. Available from Recab, your Nordic partner for Concurrent Technologies VPX computing solutions.
contct-now-icon (2) Get datasheet
Description
The Concurrent Technologies TR G4x/msd is a 3U OpenVPX single-board computer designed for Size, Weight and Power (SWaP) optimised rugged server applications requiring high processing density in demanding environments. Built around the Intel Xeon Processor D-1500 Family, it is available in 8-core, 12-core, and 16-core variants including the D-1539, D-1548, D-1559, and D-1577 processors, with up to 24 MBytes of cache and support for Intel Advanced Vector Extensions 2 and AES New Instructions. The board supports up to 64 GBytes of soldered dual-channel DDR4 ECC DRAM with peak bandwidth up to 29 GBytes/s, and provides five SATA600 interfaces alongside options for up to two M.2 NVMe flash modules and an onboard Flash Drive Module for operating system storage. Networking is delivered via a 2-port 10GBASE-KR VPX Data Plane interface and a 2-port 1000BASE-BX Control Plane, with optional IEEE 1588 timing support. PCIe expansion is provided through configurable VPX Expansion Plane ports supporting Gen 1 through Gen 3, while system management is handled via IPMI and a Baseboard Management Controller. Security options include TPM 2.0, Sanitization Utility Software, and Secure Boot via UEFI firmware. Air-cooled N-Series and E-Series variants cover operating temperatures from 0°C to +55°C and -25°C to +70°C respectively, with a conduction-cooled RCx-Series also available. The board runs Linux, Windows, and VxWorks and supports long life-cycle deployments across defence, ISR, and tactical communications applications. Available from Recab, your Nordic partner for Concurrent Technologies VPX computing solutions.
Features
  • Intel Xeon Processor D-1500 Family with up to 16 cores delivers server-class processing performance within a rugged 3U VPX single-board form factor.
  • Up to 64 GBytes of soldered dual-channel DDR4 ECC DRAM with up to 29 GBytes/s peak bandwidth supports memory-intensive embedded server workloads.
  • Dual 10GBASE-KR VPX Data Plane and dual 1000BASE-BX Control Plane interfaces provide high-throughput, standards-compliant backplane connectivity.
  • Multiple storage options including onboard Flash Drive Module, up to two M.2 NVMe modules, and a 2.5-inch SSD accommodate diverse OS and application storage requirements.
  • TPM 2.0, Secure Boot, and optional Sanitization Utility Software provide layered board-level security for classified and cyber-sensitive deployments.
  • Air-cooled N-Series and E-Series variants with VITA 47 compliance cover commercial and extended temperature ranges, with a conduction-cooled RCx-Series also available.
Specifications
Processor Intel Xeon D-1500 Family
Memory Up to 64GB DDR4 ECC
Ethernet 2 x 10GbE, 2 x 1GbE
Storage SATA600, M.2 SSD Options
Serial Up to 4 x RS232
Power 5V, 12V DC
I/O 4 x USB, GPIO
Size 3U VPX
  • Defence and ISR rugged server applications with SWaP constraints
  • Tactical communications and secure multi-processor embedded systems
  • Airborne and naval computing platforms requiring 10 Gigabit Ethernet
  • Signal intelligence and radar processing in OpenVPX chassis environments
