TR OFx/msd Eir – 3U VPX Intel Core Ultra SBC by Concurrent Technologies

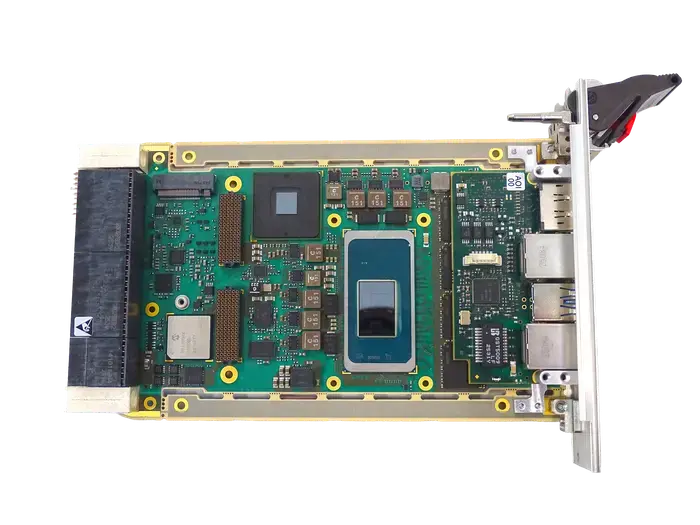

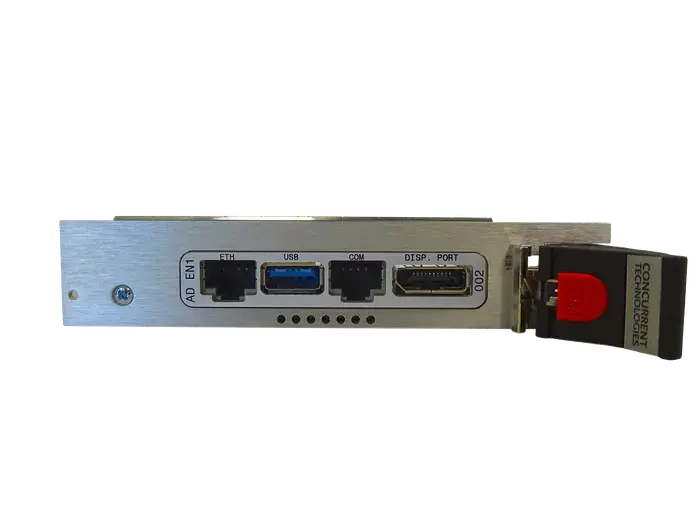

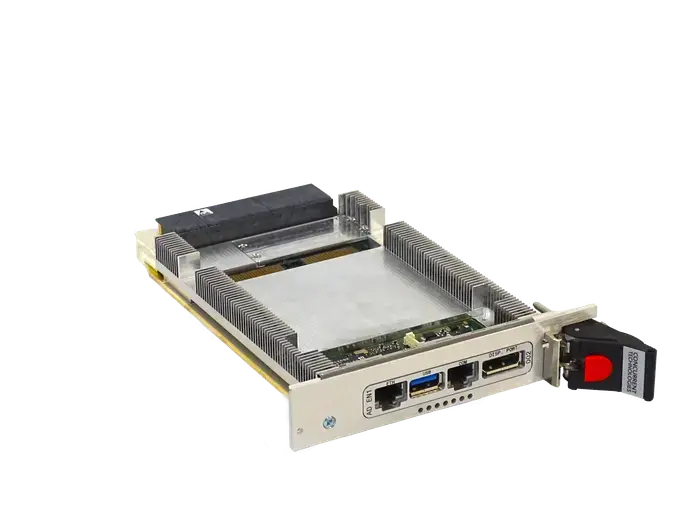

The Eir TR OFx/msd from Concurrent Technologies represents the latest advancement in rugged embedded computing, delivering exceptional processing power in a compact 3U VPX form factor. Built around the 16-core Intel Core Ultra 7 Series 3 processor featuring Intel hybrid architecture, this single board computer integrates 4 Xe3 GPGPU cores and NPU 5.0 for hardware-accelerated AI inference, making it ideal for demanding defense, aerospace, and critical infrastructure applications requiring real-time data processing and machine learning capabilities. The board provides 64GB of high-speed LPDDR5 memory in a dual-channel configuration, ensuring ample bandwidth for compute-intensive workloads. Connectivity options are extensive, featuring two PCIe Gen 4 x4 ports with non-transparent bridge and DMA support, two PCIe Gen 3 x1 ports, dual 10GBASE-KR SERDES interfaces, and two 10/100/1000BASE-T Ethernet ports with TSN readiness for time-sensitive networking applications. The flexible design accommodates either VITA 42 XMC or VITA 61 XMC 2.0 expansion modules and an optional front panel I/O module providing DisplayPort, USB 3.2, RS232, and Gigabit Ethernet interfaces. Mass storage is supported via optional M.2 2242 modules with Opal 2.0 and FIPS 140-3 compliant encryption for secure data-at-rest protection. Environmental resilience is ensured through air-cooled variants operating from -25°C to +70°C and conduction-cooled variants rated from -40°C to +85°C, meeting VITA 47.1-2025 standards. The board conforms to VITA 65.0-2023 slot and module profiles, ensuring seamless integration into existing VPX systems. Software support includes Linux and Windows operating systems. Available from Recab, your Nordic partner for Concurrent Technologies advanced modular computing solutions.
