PICO338

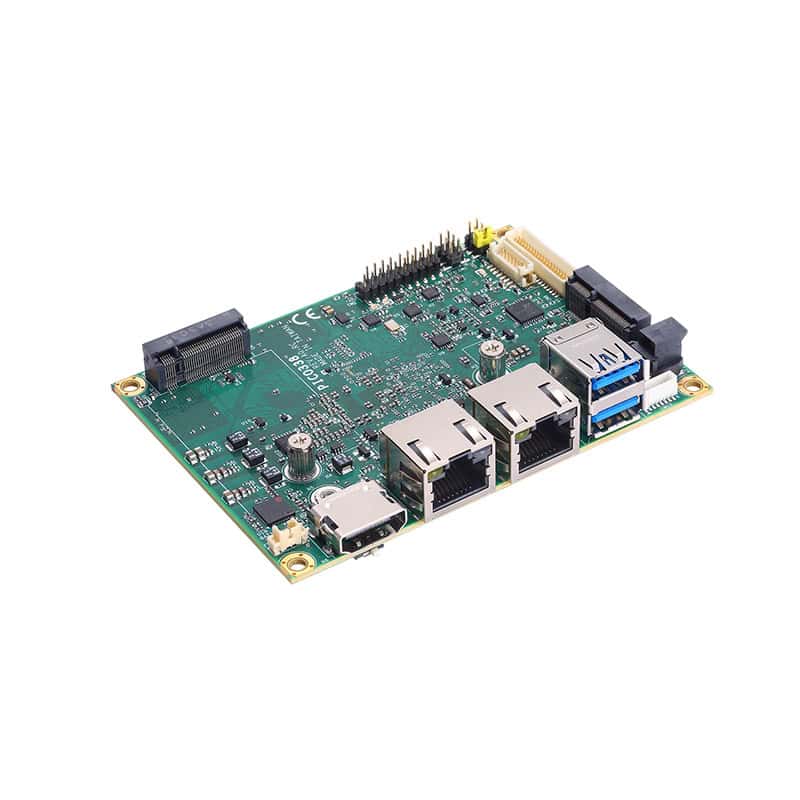

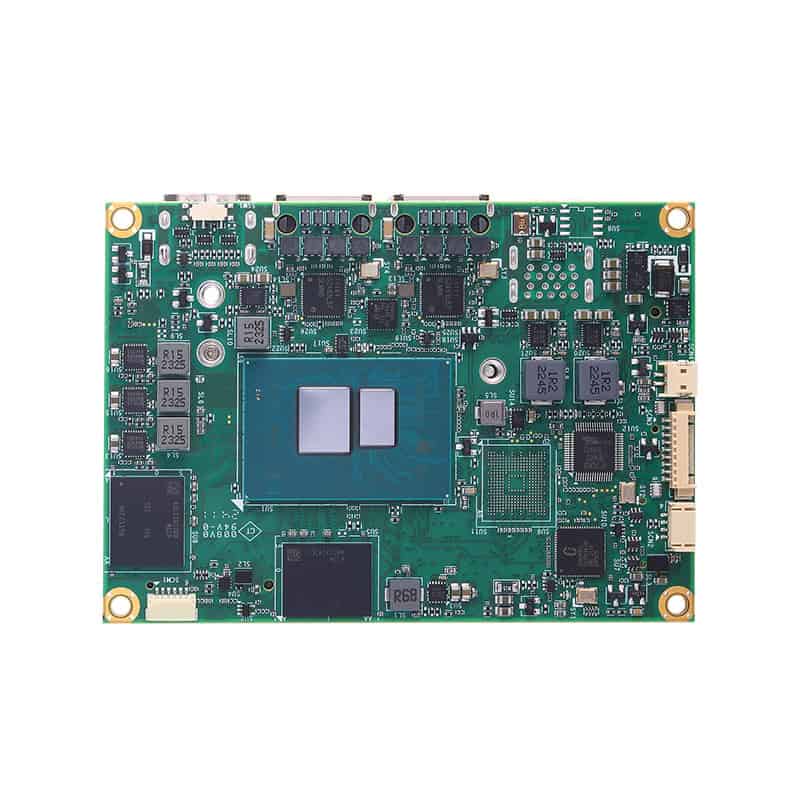

PICO338 – Pico-ITX SBC with Intel N97/i3-N305 and Dual 2.5GbE by Axiomtek

The Axiomtek PICO338 is a Pico-ITX single board computer supporting Intel Processor N97 or Core i3-N305, featuring 8 GB onboard LPDDR5 memory expandable to 16 GB, dual 2.5GbE LAN ports, HDMI and LVDS display outputs, M.2 Key B and Key E expansion, USB 3.2 and USB 2.0, RS-232/422/485 serial, TPM 2.0, and 4-channel digital I/O on a compact 100 x 72 mm board. Operating from -20°C to +65°C, it serves space-constrained industrial embedded applications including transportation, automation, and edge computing. Available from Recab, your Nordic partner for Axiomtek embedded board solutions.
contct-now-icon (2) Get datasheet
Description
The Axiomtek PICO338 is a compact Pico-ITX single board computer measuring 100 x 72 mm, designed to deliver efficient and connected embedded computing for industrial, transportation, and edge applications where board size is constrained. Built around either the Intel Processor N97 running at 2.0 to 3.6 GHz with a 12W TDP or the Intel Core i3-N305 at 1.0 to 3.8 GHz with a 9W TDP, the PICO338 provides scalable performance selection to suit a broad range of embedded OEM designs. Onboard 8 GB LPDDR5 memory, with an optional 16 GB upgrade, is complemented by an optional PCIe NVMe onboard SSD of up to 512 GB for fully integrated storage in sealed embedded systems. Dual 2.5GbE LAN ports driven by Intel I226 controllers, each supporting Wake-on-LAN and PXE boot, provide high-throughput networking particularly relevant for machine vision, data logging, and edge gateway applications. Display output covers HDMI and 18/24-bit single or dual-channel LVDS for direct integration with embedded panels, supporting dual-view configurations for information-rich HMI and surveillance displays. Expansion is provided by M.2 Key B 2242 and Key E 2230 slots for storage and wireless modules, with an optional M.2 Key B 3042/3052 slot adding further connectivity options. USB 3.2 and USB 2.0 ports, one RS-232/422/485 serial COM port, TPM 2.0, SMBus, and a 4-channel programmable digital I/O complete the interface set. Operating from -20°C to +65°C with AMI BIOS and a 255-level watchdog timer, the PICO338 is suited to transportation computing, industrial automation, machine vision, and embedded edge nodes. Available from Recab, your Nordic partner for Axiomtek embedded board solutions.
Features
  • Intel Processor N97 or Core i3-N305 processor options provide scalable performance within the same compact 100 x 72 mm board.
  • Dual 2.5GbE LAN ports via Intel I226 controllers support high-throughput networking with Wake-on-LAN and PXE boot.
  • Onboard 8 GB LPDDR5 with optional 16 GB upgrade and optional 512 GB NVMe SSD enable fully integrated sealed system designs.
  • HDMI plus 18/24-bit single or dual-channel LVDS supports dual-view display configurations for HMI and surveillance applications.
  • M.2 Key B and Key E expansion slots accommodate storage, wireless, and SIM connectivity modules for flexible embedded designs.
  • Operating range from -20°C to +65°C with a 255-level watchdog timer ensures reliable autonomous embedded deployment.
Specifications
CPU Intel® processor N97/Core™ i3-N305
Memory 8GB LPDDR5 onboard
Chipset SoC integrated
SSD 1 x M.2 Key B 2242
Power +12V DC-in only
Dimensions 100 x 72 mm
Temp -20°C to +65°C
Ethernet 2 x 2.5GbE LAN
Audio HD Audio link via pin header
I/O 2 x USB 3.2, 2 x USB 2.0
  • Industrial machine vision systems requiring dual high-throughput 2.5GbE camera connectivity
  • Transportation embedded computing with wide temperature and compact Pico-ITX form factor
  • Edge gateway nodes in factory automation requiring onboard LPDDR5 and M.2 wireless expansion
  • Compact OEM embedded designs for medical devices and test and measurement equipment
