PICO-ARU4

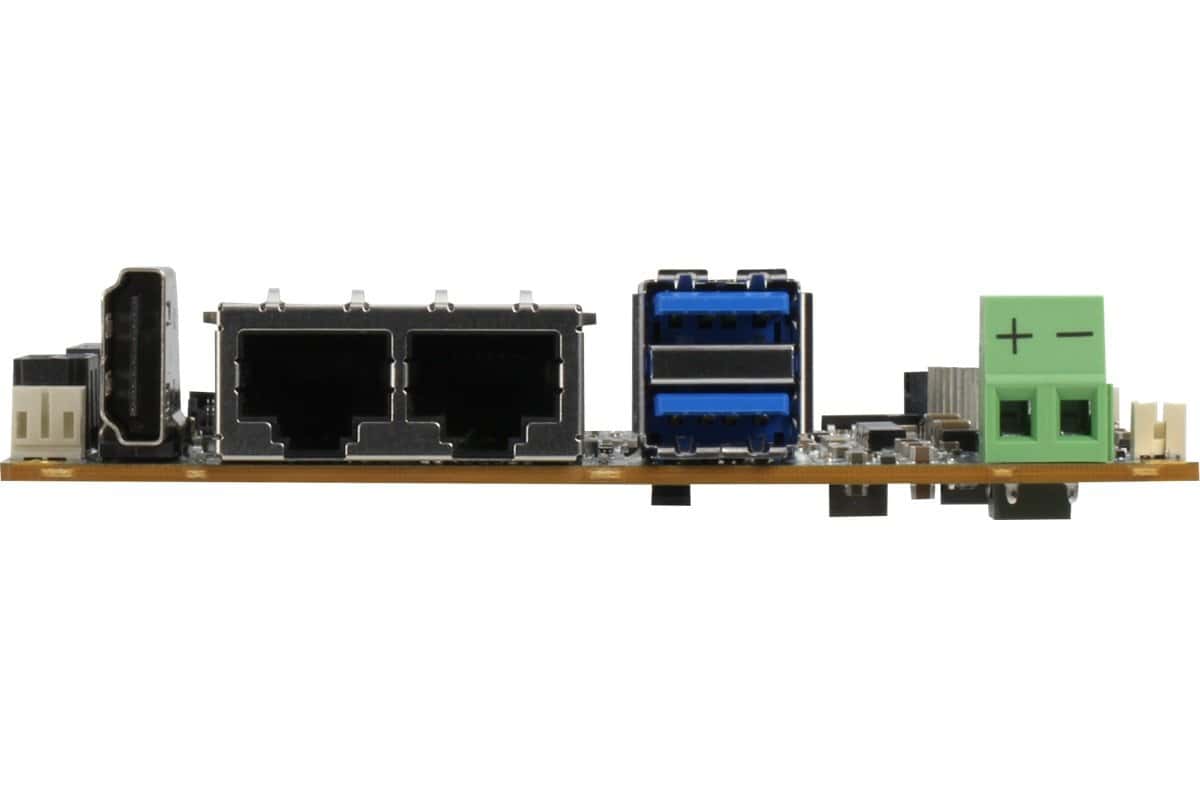

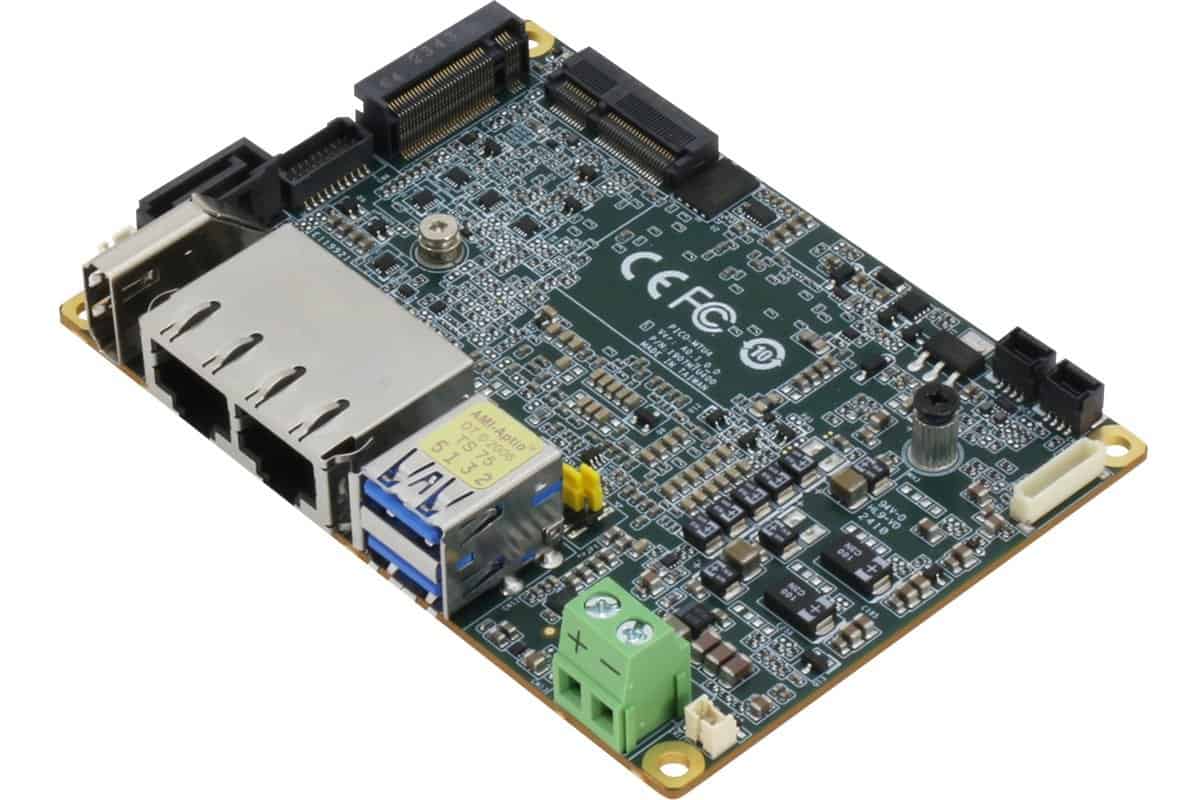

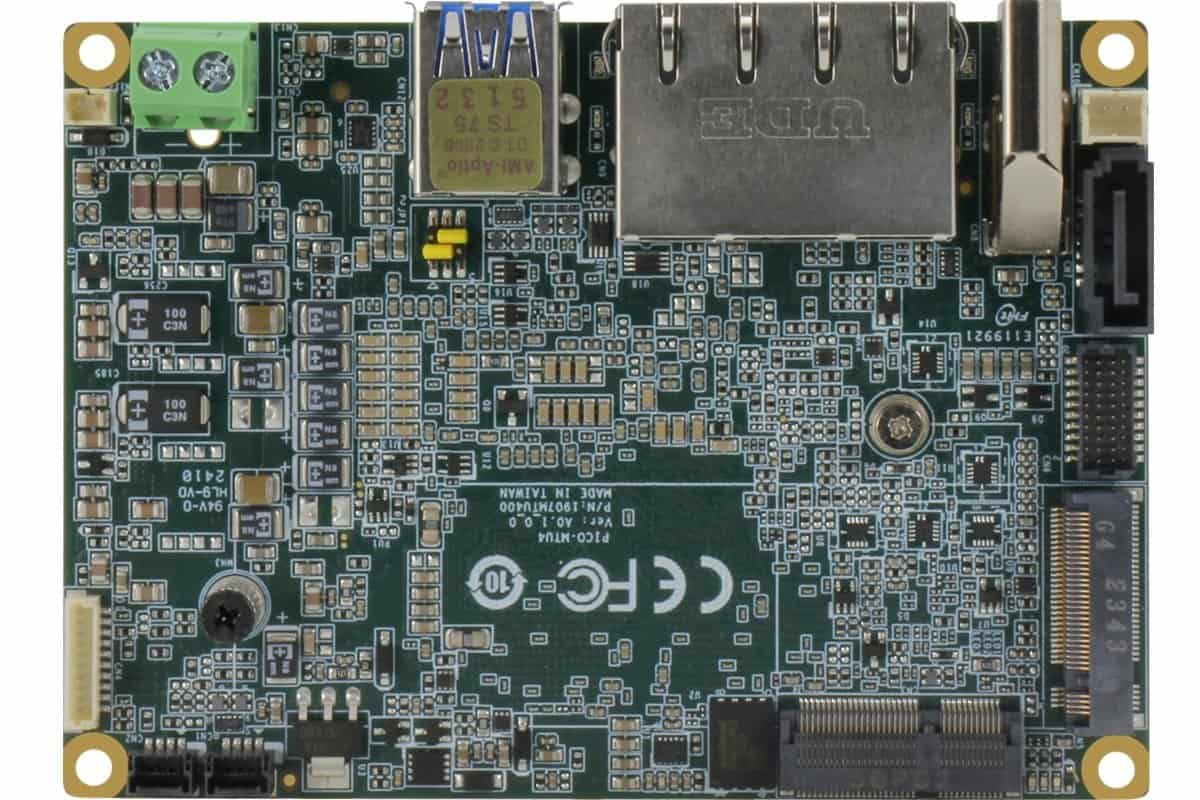

PICO-ARU4 – Pico-ITX Board with Intel Core Ultra Series 2 by AAEON

The AAEON PICO-ARU4 is a Pico-ITX single board computer powered by Intel Core Ultra 7 255U or Core Ultra 5 225U Series 2 processors in a compact 100 x 72 mm form factor. Featuring onboard LPDDR5 up to 32 GB, dual M.2 expansion with PCIe 4.0, dual Gigabit Ethernet including 2.5GbE, HDMI 1.4, eDP 1.4, RS-232/422/485 serial ports, TPM 2.0, and Intel AMT remote management, it delivers premium embedded performance with advanced connectivity for demanding industrial and AIoT applications. Available from Recab, your Nordic partner for AAEON embedded board solutions.
contct-now-icon (2) Get datasheet
Description
The AAEON PICO-ARU4 is a high-performance Pico-ITX embedded single board computer measuring 100 x 72 mm, built around Intel Core Ultra Series 2 processors to bring next-generation heterogeneous computing to compact embedded form factors. Offering a choice of the Intel Core Ultra 7 255U with P-cores at 2.0 GHz or the Intel Core Ultra 5 225U, both operating at a 15W TDP, the PICO-ARU4 delivers AI-capable computing performance well suited to edge intelligence, industrial automation, and advanced HMI applications. Onboard single-channel LPDDR5 6400 memory expandable up to 32 GB delivers the high bandwidth demanded by modern multithreaded workloads, while dual M.2 slots including an M.2 2280 M-Key socket with PCIe 4.0 x4 and an M.2 2230 E-Key slot with PCIe 4.0 x1 provide ample storage and wireless expansion capability. Network connectivity is provided by an Intel I226 2.5GbE controller and an Intel I219 1GbE controller with Wake-on-LAN support. Display output covers HDMI 1.4 at 4K 30 Hz and eDP 1.4 for direct panel integration, supporting dual simultaneous displays. RS-232/422/485 serial interfaces, GPIO, SMBus/I2C, and internal USB 2.0 headers ensure comprehensive peripheral and automation device integration. Intel AMT support enables out-of-band remote management for deployment in distributed and remotely managed systems. TPM 2.0 security and a 255-level hardware watchdog timer contribute to secure and resilient operation. The PICO-ARU4 operates from 0°C to +60°C and holds CE and FCC Class A certification, making it suitable for industrial computing, edge AI, smart factory, digital signage, and transportation embedded platforms. Available from Recab, your Nordic partner for AAEON embedded board solutions.
Features
  • Intel Core Ultra 7 255U or Ultra 5 225U Series 2 SoC delivers next-generation heterogeneous AI-capable edge computing.
  • Onboard LPDDR5 6400 up to 32 GB provides high-bandwidth memory for demanding multithreaded embedded workloads.
  • Dual M.2 expansion with PCIe 4.0 x4 M-Key and PCIe 4.0 x1 E-Key supports fast NVMe SSD and wireless module integration.
  • Intel I226 2.5GbE and Intel I219 1GbE dual Ethernet provide high-throughput and redundant network connectivity.
  • Intel AMT support enables out-of-band remote management for distributed and remotely maintained deployments.
  • TPM 2.0 hardware security and 255-level watchdog timer ensure secure and reliable autonomous industrial operation.
Specifications
CPU Intel® Core™ Ultra 7 255U
Memory Up to 32GB LPDDR5
Storage SATA 6Gb/s x 1
Ethernet 2.5GbE + 1GbE
USB USB 3.2 Gen 2 x 2
Video HDMI 1.4 x 1
Power 12V only
Temperature 0°C ~ 60°C
Weight 0.18 lb (0.08 kg)
BIOS UEFI
  • Edge AI and industrial automation controllers requiring Intel Core Ultra processing performance
  • Smart factory HMI and machine vision embedded computing platforms
  • Digital signage and kiosk systems demanding high-performance compact embedded boards
  • Transportation and in-vehicle embedded computing with remote Intel AMT management
