MIO-2363 – Intel Atom x6000 Pico-ITX SBC by Advantech

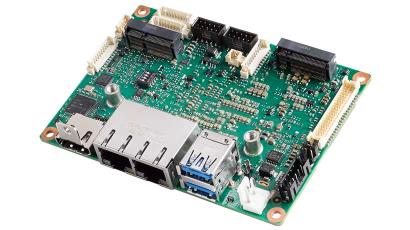

The Advantech MIO-2363 is an industrial-grade Pico-ITX single board computer built on the Intel Atom x6000E Series processor platform, code-named Elkhart Lake. Available in three processor variants including the x6211E, x6413E, and x6425E, this compact SBC delivers scalable performance from 2 to 4 cores with up to 3.0GHz maximum frequency. The board integrates onboard LPDDR4x memory up to 8GB with IBECC support for enhanced reliability, and eMMC storage up to 128GB for robust data retention without moving parts. Connectivity is comprehensive with dual Intel i210 Gigabit Ethernet controllers, two USB 3.2 ports, two USB 2.0 internal ports, and dual configurable RS-232/422/485 serial ports. Display capabilities include HDMI 1.4 supporting up to 4K resolution at 30Hz and dual-channel 18/24-bit LVDS for industrial panel integration. The M.2 E-Key slot accommodates wireless modules while the M.2 B-Key slot supports SATA storage or optional PCIe devices including RS-232 expansion modules. Designed for demanding environments, the MIO-2363 operates across a wide 12-24V DC input range and supports extended temperature operation from -40 to 85°C with passive cooling solutions. The board includes TPM 2.0 security, 8-bit GPIO, I2C interface, and Realtek ALC888 audio codec. Software support encompasses iManager 3.0 with comprehensive APIs for hardware monitoring, smart fan control, brightness control, and watchdog timer functions. Compatible with Windows 10, Ubuntu 20.04 LTS, and Yocto Linux distributions, the MIO-2363 integrates seamlessly with Advantech WISE-DeviceOn for IoT device management and EdgeAI Suite for edge AI development. Target applications include factory automation controllers, intelligent transportation systems, smart city infrastructure, retail kiosks, and medical equipment. Available from Recab, your Nordic partner for Advantech single board computer solutions.
