PICO-ADN4 Rev.B

PICO-ADN4 Rev.B – Pico-ITX Board with Intel Alder Lake-N by AAEON

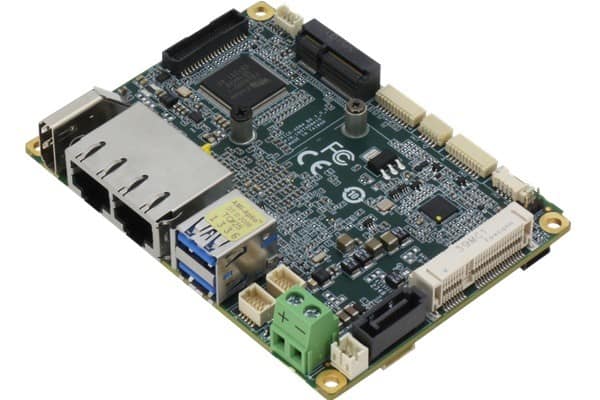

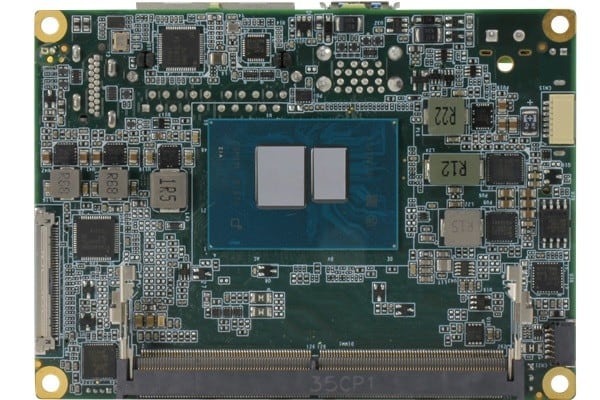

The AAEON PICO-ADN4 Rev.B is a Pico-ITX single board computer supporting Intel Atom x7000E Series, Intel Processor N-series, and Intel Core i3 N-series processors within a compact 100 x 72 mm footprint. With DDR5 4800 memory up to 16 GB, dual Ethernet including 2.5GbE, HDMI 1.4 plus LVDS/eDP display outputs, four RS-232/422/485 serial ports, USB 3.2 Gen 2, and TPM 2.0 security, it delivers flexible embedded computing for space-constrained industrial and transportation applications. Operating from -20°C to +70°C, it suits demanding embedded deployment scenarios. Available from Recab, your Nordic partner for AAEON embedded board solutions.
Description

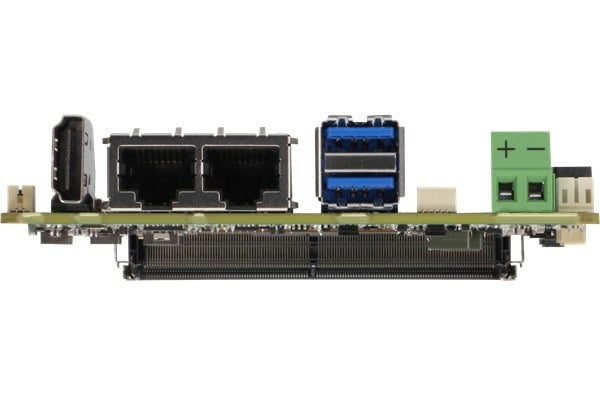

The AAEON PICO-ADN4 Rev.B is a Pico-ITX form factor embedded single board computer measuring just 100 x 72 mm, designed to deliver scalable processing performance for industrial automation, transportation, machine vision, and edge computing applications where board footprint is critical. The board supports a choice of Intel Atom x7425E, Intel Processor N97, or Intel Core i3-N305 Alder Lake-N SoC processors, enabling system designers to match compute power to application requirements while maintaining pin and mechanical compatibility. Up to 16 GB of DDR5 4800 single-channel SODIMM memory provides high memory bandwidth suited to data-intensive workloads, and onboard UEFI BIOS with Wake-on-LAN and a 255-level watchdog timer ensure reliable autonomous operation. Display output covers HDMI 1.4 at up to 3840 x 2160 at 30 Hz and LVDS or optional eDP 1.4 for embedded panel integration, supporting dual simultaneous displays. Networking is handled by a 2.5GbE Intel I226 controller and a 1GbE Realtek RTL8111H, with external USB 3.2 Gen 2 ports and four internal USB 2.0 headers covering peripheral connectivity. Four serial ports including two RS-232/422/485 multi-mode COM ports accommodate industrial field device integration. Expansion options include a full-size mSATA/mini-PCIe socket and an M.2 2230 E-Key slot for wireless or storage modules, complemented by SATA 6 Gb/s storage and a 4-bit GPIO for digital I/O control. TPM 2.0 hardware security and SMBus/I2C round out the feature set. Operating from -20°C to +70°C, the PICO-ADN4 Rev.B is CE and FCC Class A certified with an MTBF of over 2.2 million hours, making it a reliable choice for embedded OEM system integrators across industrial, medical, and transportation markets. Available from Recab, your Nordic partner for AAEON embedded board solutions.
Features
  • Choice of Intel Atom x7425E, N97, or Core i3-N305 Alder Lake-N SoC processors supports scalable performance selection.
  • DDR5 4800 SODIMM up to 16 GB delivers high memory bandwidth for data-intensive embedded applications.
  • Dual Ethernet with 2.5GbE Intel I226 and 1GbE Realtek RTL8111H provides redundant and high-throughput network connectivity.
  • HDMI 1.4 plus LVDS or eDP display outputs support up to two simultaneous independent display outputs.
  • Four serial COM ports including two RS-232/422/485 multi-mode ports enable comprehensive legacy field device integration.
  • TPM 2.0 security, 255-level watchdog timer, and -20°C to +70°C operation ensure reliable autonomous industrial deployment.
Specifications
CPU Intel Atom x7000E Series
Memory Up to 16GB DDR5
Connectivity 2.5GbE and 1GbE
Power 9V to 36V DC Input
Size 3.94" x 2.84"
Weight 0.18 lbs (0.08 kg)
OS Windows 10/11, Ubuntu 22.04
Temperature -20°C to 70°C Operating
Graphics Intel® UHD Graphics
MTBF 2,219,397 Hours
  • Industrial automation embedded controller integration in space-constrained OEM systems
  • Transportation and in-vehicle computing platforms requiring wide temperature operation
  • Machine vision embedded systems with dual display and high-speed USB connectivity
  • Edge computing nodes in medical and test equipment requiring compact reliable SBCs
