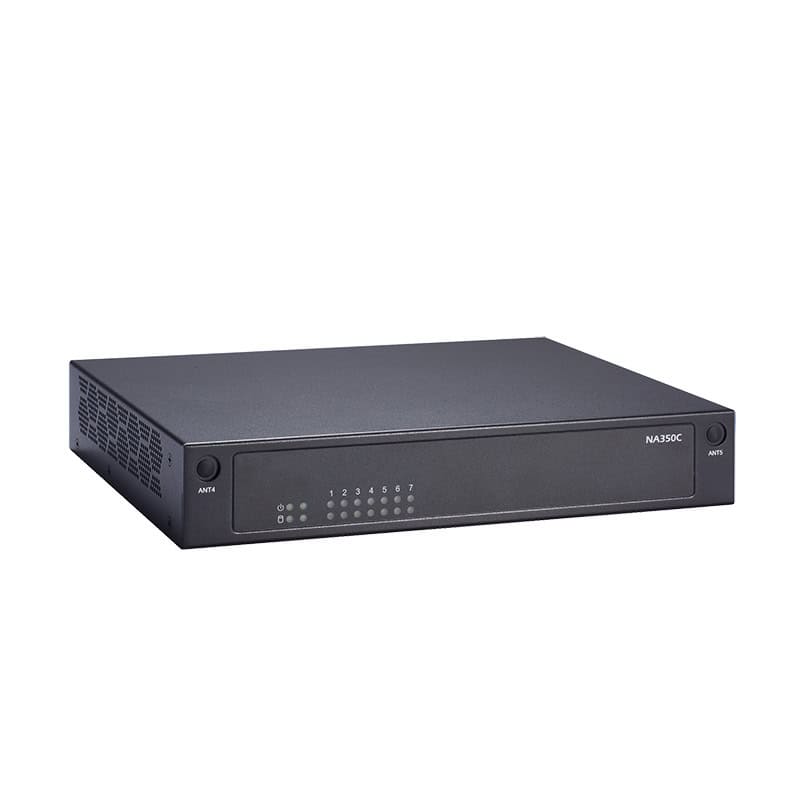

NA350C – Desktop Network Appliance with Intel Atom x6425E and 7 LAN by Axiomtek

The Axiomtek NA350C is a compact 1U desktop network appliance platform built around the Intel Atom x6425E Elkhart Lake processor for engineers designing VPN concentrators, 5G edge gateways, firewalls, unified threat management appliances, and SD-WAN nodes requiring high LAN port density in a small enclosure. The NA350C provides up to seven LAN ports depending on SKU, combining four Intel I350-based GbE RJ45 or two GbE RJ45 plus two 1G SFP ports with three MaxLinear GPY211 2.5G RJ45 ports, giving flexible copper and fibre mix options to suit varied network deployment scenarios. One LAN bypass pair adds resilience for inline security appliance use cases. Memory capacity reaches 32GB via two DDR4-3200 non-ECC SO-DIMM slots, and storage is handled by an M.2 Key M 2242 SATA slot and a 2.5-inch SATA3 HDD bay. Wireless and cellular expansion slots include an M.2 Key B 3052/3042 with Nano SIM for 5G NR/LTE, an M.2 Key E 2230 for WiFi, a full-size Mini PCIe slot with Nano SIM for LTE, and a half-size Mini PCIe slot for WiFi, supporting dual SIM configurations for resilient cellular connectivity. Onboard TPM 2.0 provides hardware-level security. I/O includes HDMI, two USB 2.0, a console RJ45 port, and a DC screw-type power jack. The steel chassis measures 44 x 257 x 197 mm and operates between 0 and 40°C with CE and FCC Class A certification. Available from Recab, your Nordic partner for Axiomtek network appliance solutions.
