DIC-317-Q670

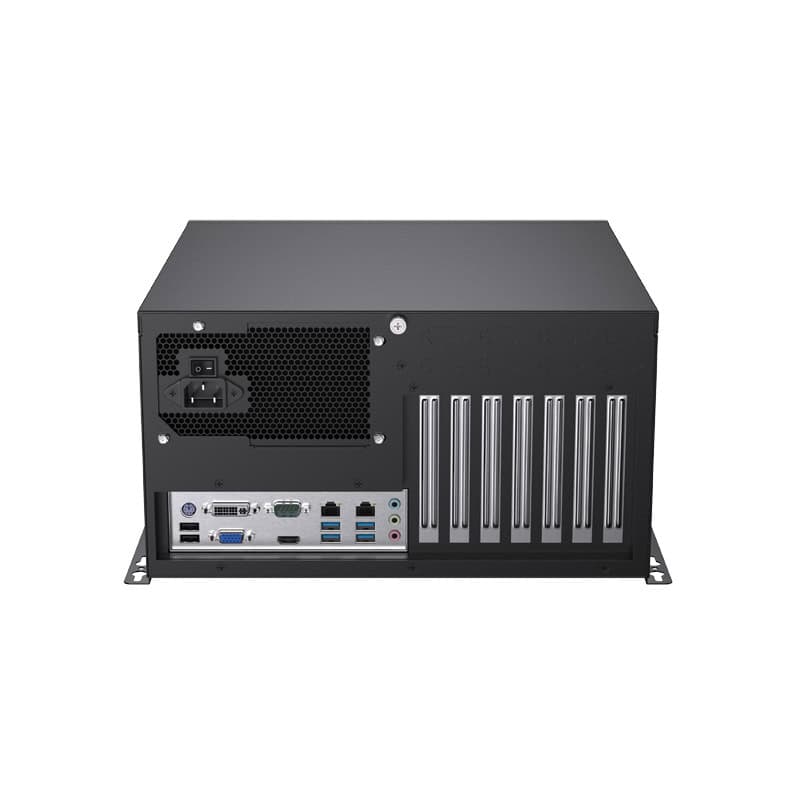

DIC-317-Q670 – Wallmount System with Intel 12/13/14th Gen Core by Darveen

The Darveen DIC-317-Q670 is a high-performance wall-mount industrial computing system supporting Intel 12th, 13th, and 14th generation Core i3/i5/i7/i9 LGA1700 processors up to 125W TDP via an Intel Q670 chipset. With four DDR4 UDIMM slots up to 128GB, dual Intel GbE LAN, eight USB 3.0, six COM, triple-display via VGA/HDMI/DVI, 2x PCIe x16 and 4x PCIe x4/x1 expansion, RAID, AMT, and TPM 2.0, it is built for intensive 24/7 industrial workloads. Available from Recab, your Nordic partner for Darveen industrial computing solutions.
Description
The Darveen DIC-317-Q670 is a high-performance wall-mount industrial computer designed to deliver maximum expandability and computing power for demanding continuous-operation industrial applications including machine vision, multi-axis motion control, industrial inspection, and complex automation platforms. Built around the Intel Q670 PCH-S chipset, it supports Intel 12th, 13th, and 14th generation Core i3/i5/i7/i9 processors in the LGA1700 socket with TDP up to 125W, enabling desktop-grade processing performance in a wall-mounted industrial housing. Four DDR4-3200 non-ECC U-DIMM slots accommodate up to 128GB of system memory, and storage options cover four SATA 3.0 ports with RST RAID 0/1/5/10, one M.2 Key-M slot for PCIe Gen4 x4 NVMe or SATA SSD up to 2280, and one M.2 Key-E slot for Wi-Fi and Bluetooth module integration. PCIe expansion is extensive with two PCIe x16 Gen3 slots, three PCIe x4 Gen3 slots, one additional PCIe x4 Gen3 slot, and one PCI slot, accommodating a wide range of industrial expansion cards. Display output covers VGA, HDMI, and DVI-D for triple-monitor configurations, while the I/O set includes six USB 3.0 rear ports, two USB 3.0 internal ports, five USB 2.0 connections, and six serial ports in RS-232 and RS-232/422/485 configurable variants alongside eight GPIO. Intel vPro with AMT remote management, TPM 2.0 (SLB 9670), and RAID support provide enterprise-grade manageability and data protection. Thermal management uses dual 12025 front-panel cooling fans for sustained 24/7 operation at 0°C to +50°C. The 330 x 325 x 180 mm housing weighs 8 kg and is CE and FCC Class A certified. Available from Recab, your Nordic partner for Darveen industrial computing solutions.
Features
  • Supports Intel 12/13/14th Gen LGA1700 Core i3/i5/i7/i9 up to 125W TDP via Intel Q670 PCH-S chipset
  • Seven PCIe expansion slots including two x16 Gen3, four x4 Gen3, and one PCI accommodate broad industrial cards
  • Four DDR4-3200 U-DIMM slots support up to 128GB alongside RAID 0/1/5/10, NVMe M.2 Gen4, and four SATA ports
  • Six USB 3.0 rear ports, six COM ports, eight GPIO, and triple VGA/HDMI/DVI display output for rich I/O
  • Intel vPro AMT remote management, TPM 2.0, and Intel PTT provide enterprise-grade security and manageability

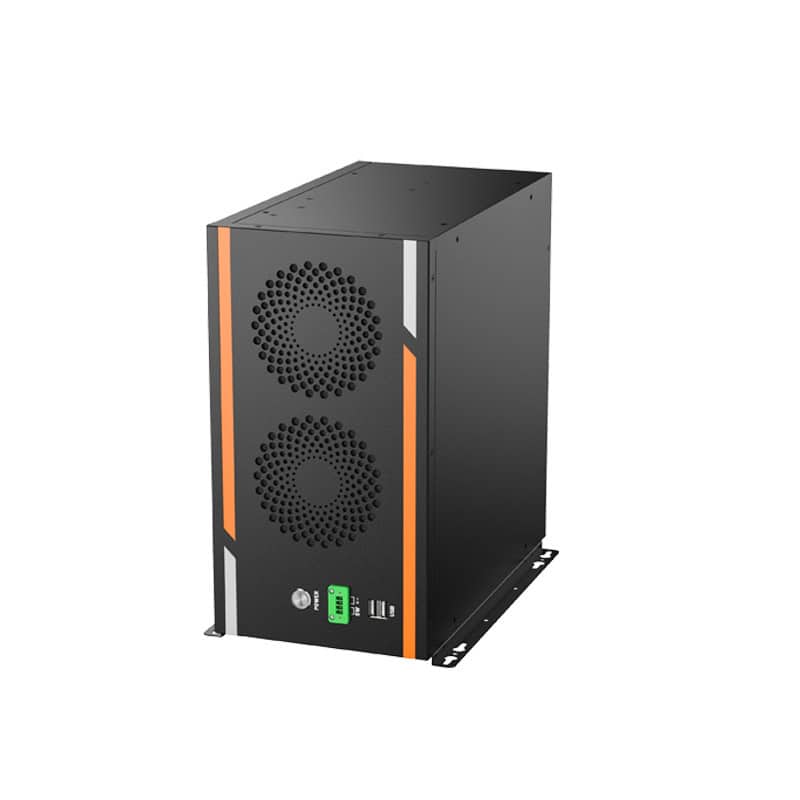

  • Dual 12025 front-panel cooling fans enable sustained 24/7 operation at 0°C to +50°C in industrial environments
Specifications
CPU Intel 12/13/14th Gen i3/i5/i7/i9
CPU TDP 125W MAX
Chipset Intel Q670
Memory Up to 128GB DDR4-3200MHz
Power Standard ATX power supply
Operating System Windows 10/11, Ubuntu
Dimensions 330 x 325 x 180mm
Weight 8 KG
Operating Temp 0~50°C
Humidity 10%~95% non-condensing
  • High-performance industrial machine vision and inspection systems requiring multi-slot PCIe expansion wall-mount computing
  • Multi-axis motion control platforms needing 125W TDP Intel Core i9 processing with RAID storage and AMT management
  • Industrial 24/7 continuous-operation automation systems requiring dual-fan cooling and extensive serial port connectivity
  • Factory engineering workstations requiring triple-display VGA/HDMI/DVI output and broad USB and COM connectivity
