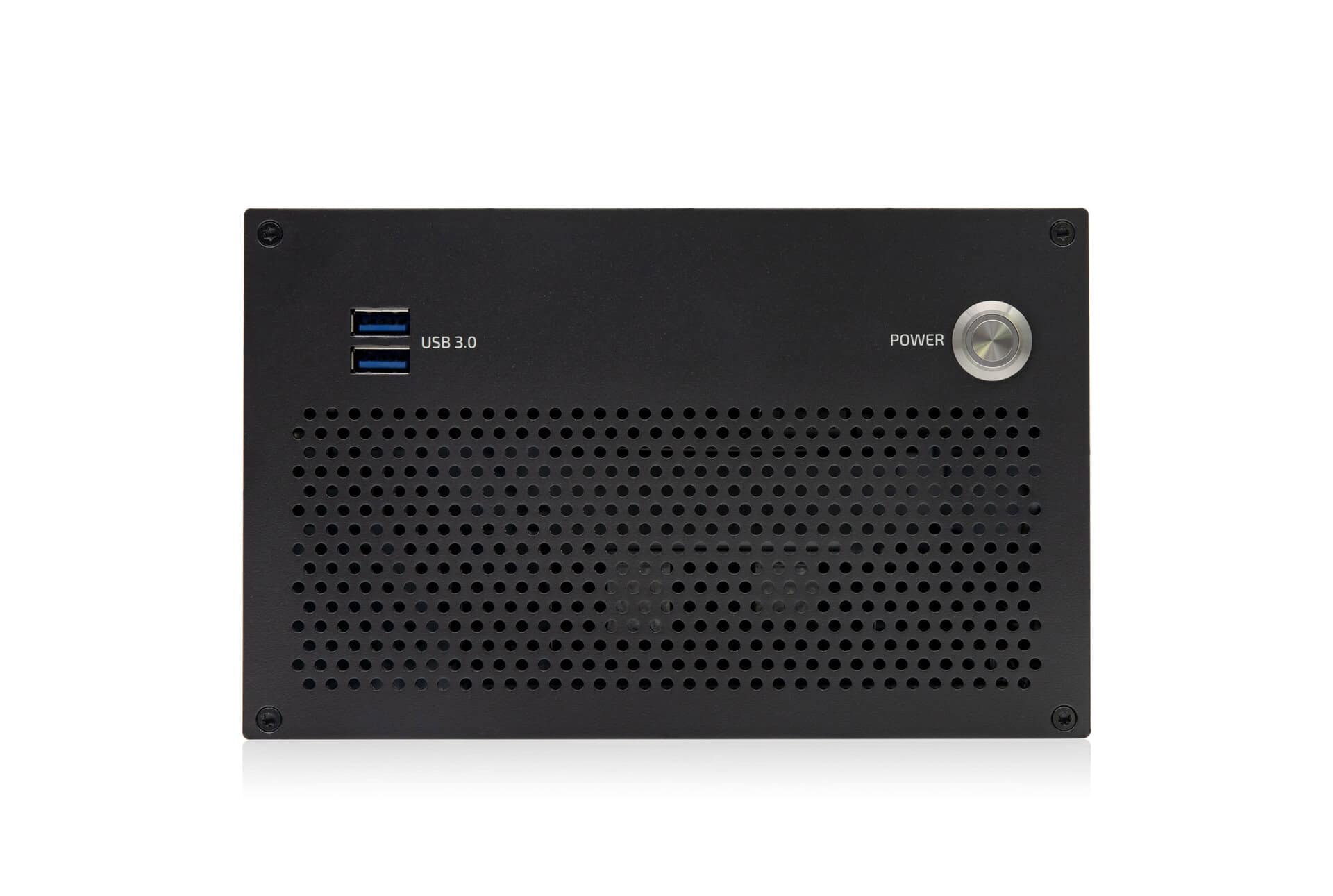

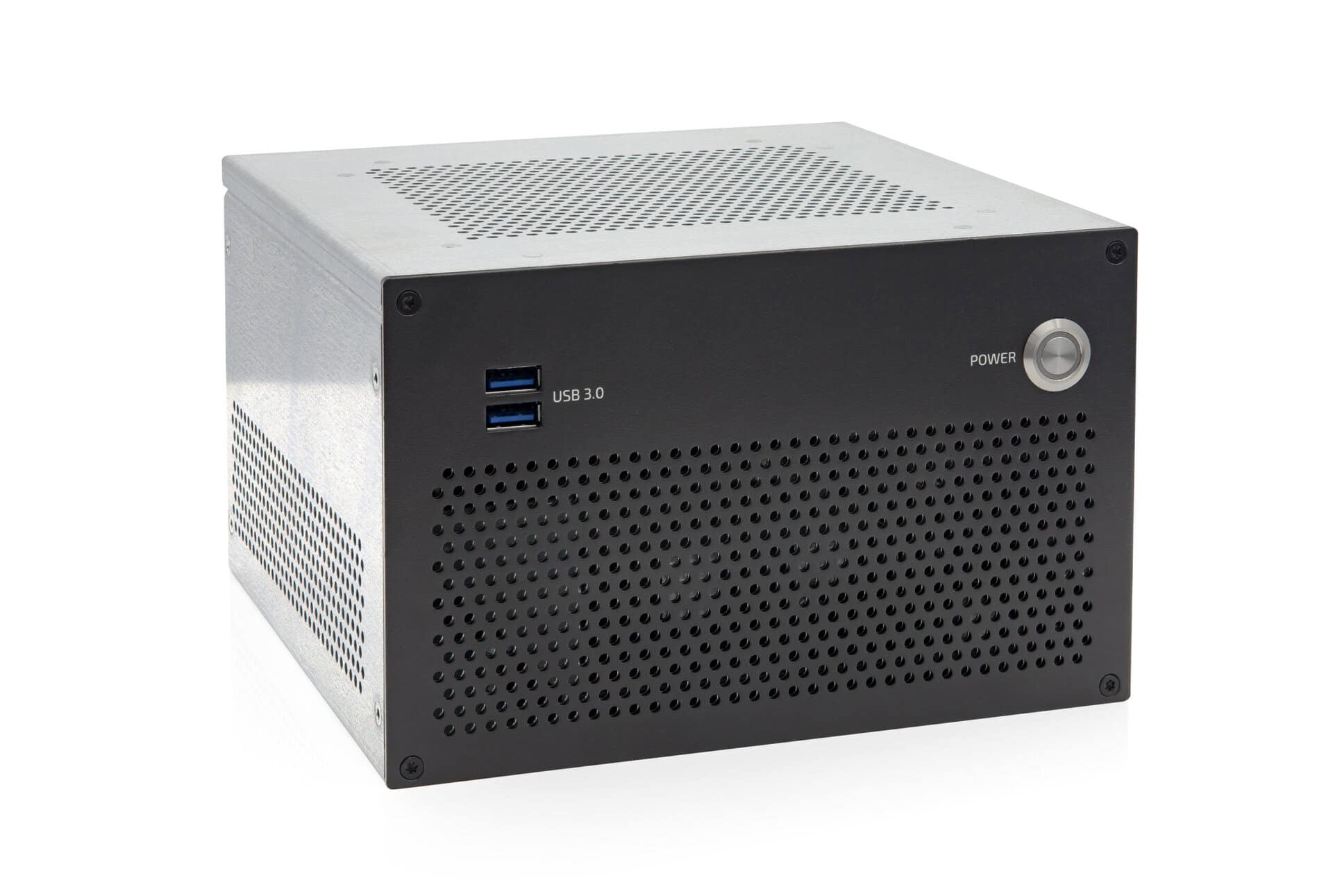

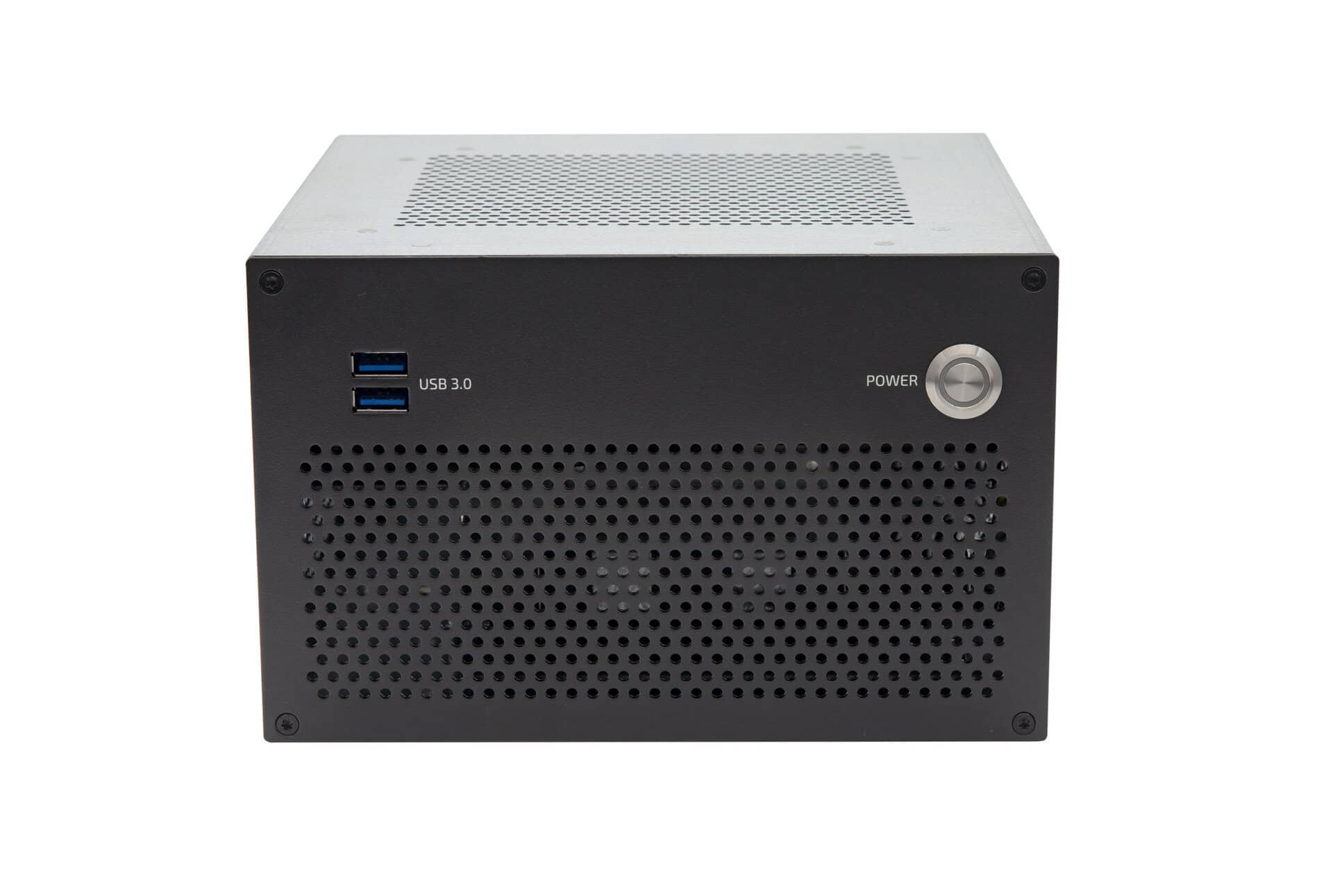

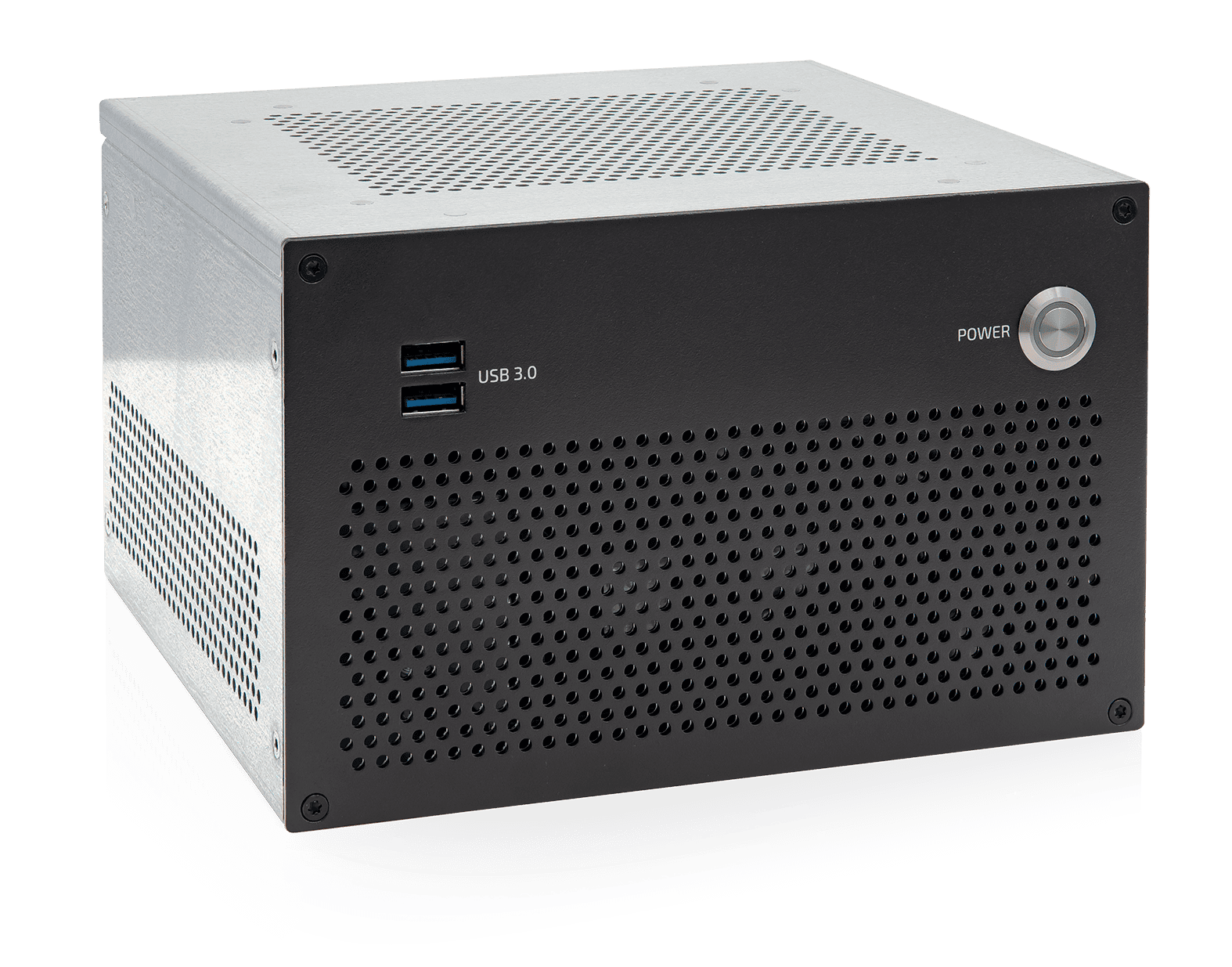

KBox B-204-RPL – High-Performance Industrial Box PC by Kontron

The Kontron KBox B-204-RPL is a high-performance embedded box PC featuring up to 14th Gen Intel Core i9 processors with 24 cores, supporting up to 64GB DDR5 memory and 20TB storage capacity. This industrial PC offers flexible expansion options including PCIe slots, four DisplayPort outputs, dual Ethernet ports with 2.5GbE and 1GbE connectivity, and comprehensive USB interfaces. The whisper-quiet cooling concept enables deployment in noise-sensitive environments such as control consoles and diagnostic equipment. With support for Windows 11 IoT Enterprise LTSC and Linux, plus optional NVIDIA graphics cards, the KBox B-204-RPL delivers exceptional computing power in a compact 190x120x190mm form factor. Available from Recab, your Nordic partner for Kontron industrial embedded computer solutions.

manufacturer

Kontron

product model

KBox B-204-RPL
Download datasheet
Contact an expert
CE Certified, FCC Certified, UKCA Certified, UL 62368-1

Overview

The Kontron KBox B-204-RPL represents a new generation of high-performance industrial box PCs designed for demanding embedded computing applications. Built around 14th Generation Intel Core processors ranging from Intel Processor 300 to Core i9-14900T with up to 24 cores combining Performance and Efficient core architecture, this system delivers exceptional processing power for complex industrial workloads. The platform supports high-speed DDR5 memory up to 64GB via dual SODIMM slots, ensuring ample capacity for memory-intensive applications. Storage flexibility is a key strength, with options including M.2 NVMe SSDs, multiple 2.5-inch SATA drives, and even 3.5-inch HDDs, providing up to 20TB total capacity with optional RAID configuration for data redundancy. The KBox B-204-RPL features comprehensive connectivity including four DisplayPort 1.4a outputs supporting resolutions up to 7680×4320 at 60Hz, dual Ethernet ports with Intel i226LM 2.5GbE and Intel i219LM 1GbE controllers both featuring Wake-on-LAN, eight USB ports across multiple generations including USB Type-C, and a configurable RS232/422/485 serial port. For applications requiring dedicated graphics processing, optional NVIDIA professional GPUs including the A400, A1000, and A4000 Ada SFF are available. The innovative Kontron cooling concept with PWM-controlled fans enables high-performance operation while maintaining whisper-quiet noise levels, making it ideal for integration into control consoles, diagnostic equipment, laboratory devices, and other noise-sensitive environments. The flexible housing design with desktop, wall mount, and VESA mounting options facilitates easy integration across diverse installation scenarios. Software support includes Windows 11 IoT Enterprise LTSC, Linux Debian, and Kontron’s KontronOS hardened operating system, complemented by KontronGrid fleet management and FabEagle Connect integration solutions. Available from Recab, your Nordic partner for Kontron industrial embedded computer solutions.
Expandable, Flexible I/O, High Performance, Mounting Options, Multiple Displays, NVMe Storage

Key highlights

  • List Item #1
  • List Item #2
  • List Item #3

Features

  • Up to 14th Gen Intel Core i9 processor with 24 cores delivering exceptional computing performance
  • High-speed DDR5 memory support up to 64GB for memory-intensive industrial applications
  • Whisper-quiet Kontron cooling concept enables deployment in noise-sensitive environments
  • Flexible storage options including NVMe SSD and RAID configurations up to 20TB capacity
  • Four DisplayPort 1.4a outputs supporting ultra-high resolution displays up to 7680x4320
  • Dual Ethernet connectivity with 2.5GbE and 1GbE Intel controllers featuring Wake-on-LAN

Specifications

CPU 14th Gen Intel® Pentium/ Core™ i3-14100T/i5-14500T/i7-14700T/i9-14900T, Intel®300T
Max. Number of Cores 24-Core (8x P-Core + 16x E-Core)
Max. Speed P-Core: 1.8 GHz/5.2 GHz (Burst), E-Core: 1.3 GHz
Chipset Intel® Q670E
Memory DDR5-4800/5600 MHz, Up to 64 GByte, 2x SODIMM
Graphics Intel® UHD Graphics 710/730/770, Optional NVIDIA A400/A1000/A4000 Ada SFF
Max. Resolution 7680 x 4320 @ 60Hz
Display Outputs 4x DisplayPort V1.4a
Ethernet 1x 2.5GbE Intel® i226LM, 1x 1GbE Intel® i219LM (Wake-on-LAN)
USB Ports 2x USB 3.2 Gen2 (Front), 3x USB 3.2 Gen 2, 1x USB 3.2 Gen 2 Type-C, 4x USB 2.0 (Rear)
Storage 1x M.2 Key-M 2242/2280 NVMe, up to 3x 2.5" SSD SATA III or 1x 3.5" HDD
Operating Temperature 0 °C to +45 °C (32 °F to 113 °F)
Dimensions (W x H x D) 190 x 120 x 190 mm (7.48" x 4.72" x 7.48")
Weight approx. 3.0 kg (6.6 lbs)
Certifications UL 62368 (TÜV)/CB/CE/FCC/UKCA

Applications

  • Industrial control consoles requiring high computing performance and low noise operation
  • Diagnostic and laboratory equipment with demanding data processing requirements
  • Machine vision and quality inspection systems with dedicated graphics acceleration
  • Factory automation and manufacturing execution systems with extensive connectivity

Resources

Datasheet

https://recab.com/wp-content/uploads/2026/10/kbox-b-204-rpl_en_data-sheet_kontron.pdf
