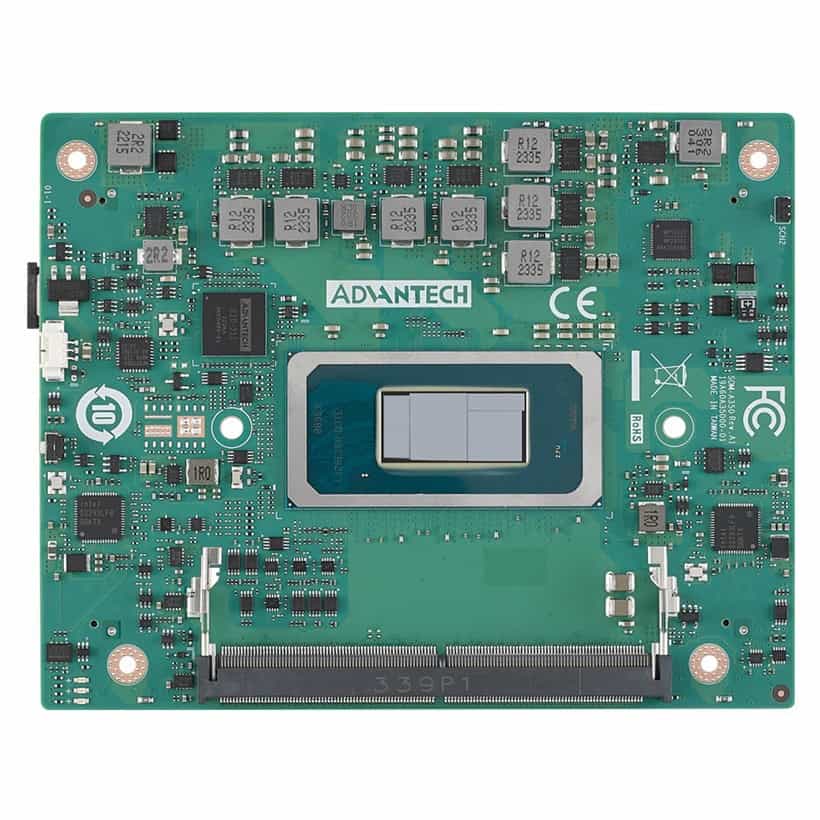

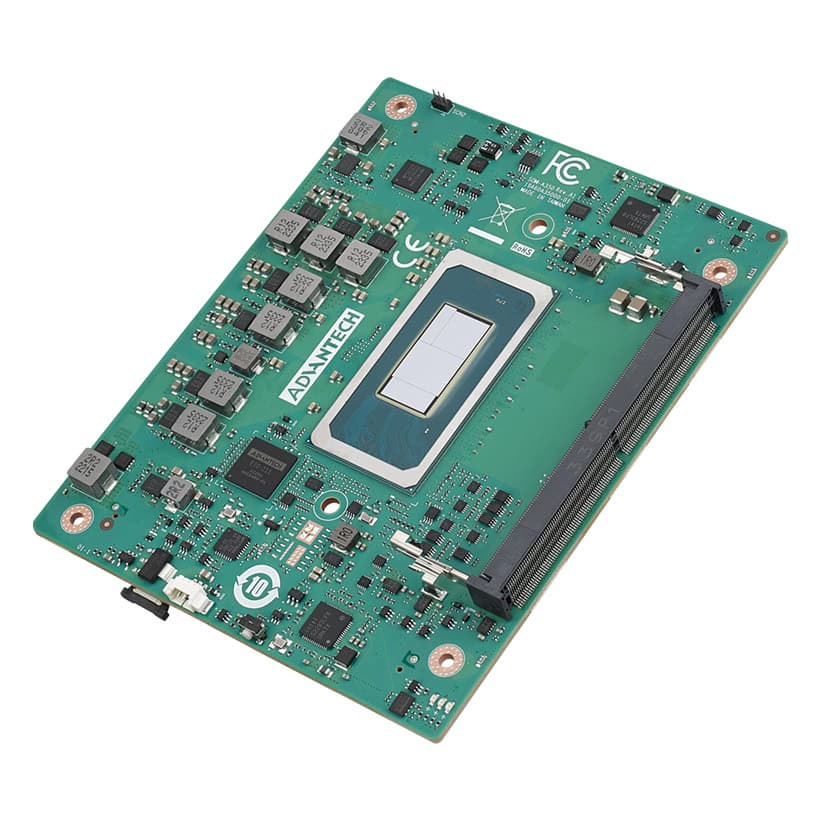

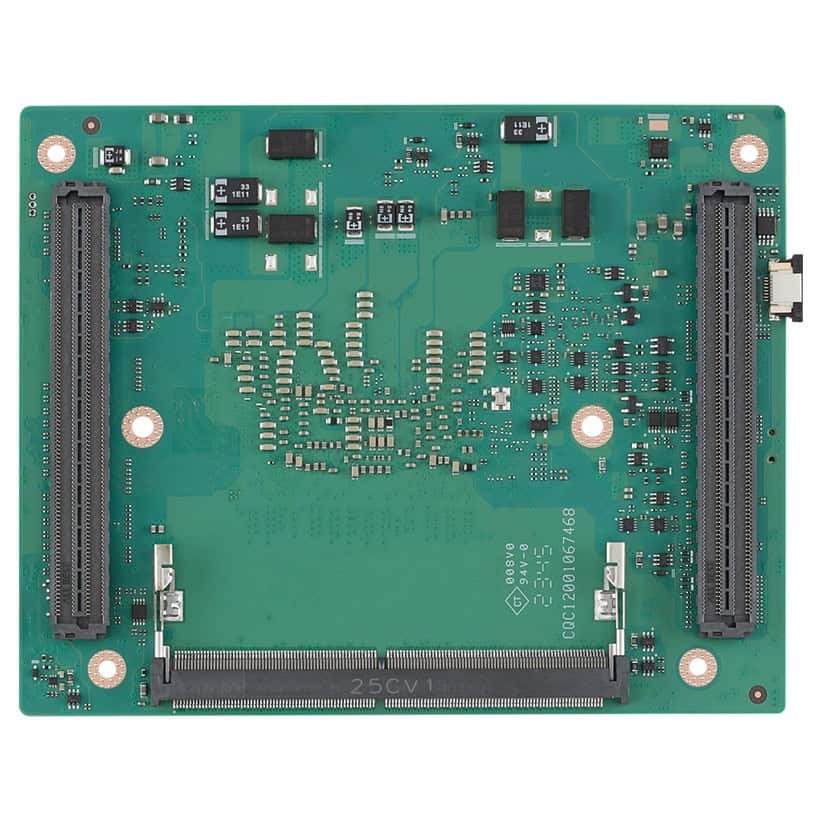

SOM-A350/R – COM-HPC Size A Module Intel Core Ultra by Advantech

The Advantech SOM-A350/R is a cutting-edge COM-HPC Client Size A computer-on-module designed for high-performance embedded computing applications. Built on Intel Core Ultra processors from both Meteor Lake U/H and Arrow Lake-U/H families, this module offers configurations ranging from 12 to 16 cores with performance, efficiency, and low-power efficiency cores working in harmony to deliver exceptional processing capabilities with thermal design power options from 12W to 45W. The integrated Intel Xe LPG graphics engine provides up to 128 execution units capable of driving four simultaneous independent 4K displays through eDP 1.4b and three DDI ports supporting HDMI 2.1 and DisplayPort 2.1, making it ideal for multi-display digital signage, medical imaging, and industrial visualization systems. Memory support includes dual-channel DDR5 at 5600MT/s with capacity up to 96GB via two SO-DIMM sockets, with IBECC support for enhanced reliability in mission-critical applications. The expansion capabilities are comprehensive, featuring PCIe Gen5 x8 lanes on H-series processors, multiple PCIe Gen4 lanes for high-speed peripherals, two USB4 ports, USB 3.2 Gen2, and dual SATA 3.0 interfaces. Dual 2.5 Gigabit Ethernet controllers using Intel I226 provide robust network connectivity for industrial automation and edge computing deployments. The module includes TPM 2.0 for hardware security, dual BIOS support for failsafe boot operations, and Advantech iManager for comprehensive system monitoring and management. Operating temperature ranges from standard 0 to 60 degrees Celsius to extended minus 40 to 85 degrees Celsius support industrial and outdoor applications. The compact 95mm by 120mm form factor complies with COM-HPC specifications for seamless integration with standard carrier boards. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.
