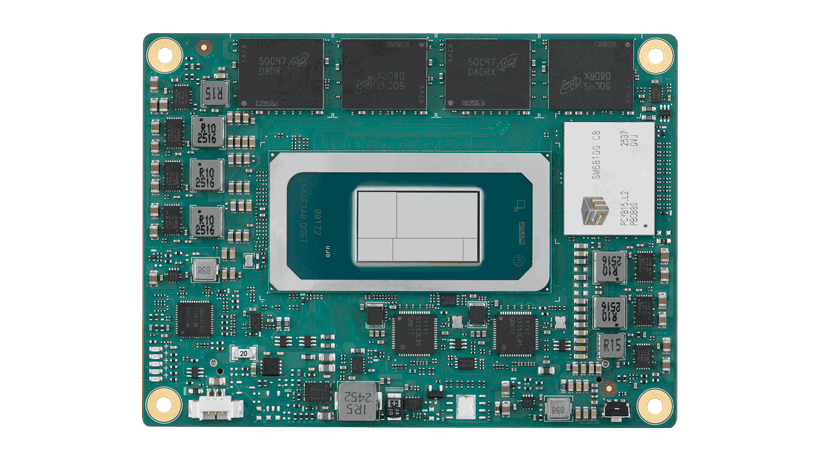

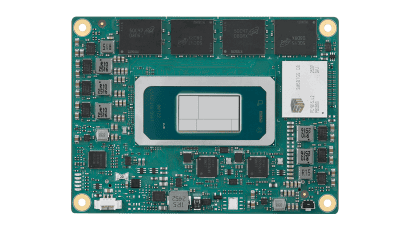

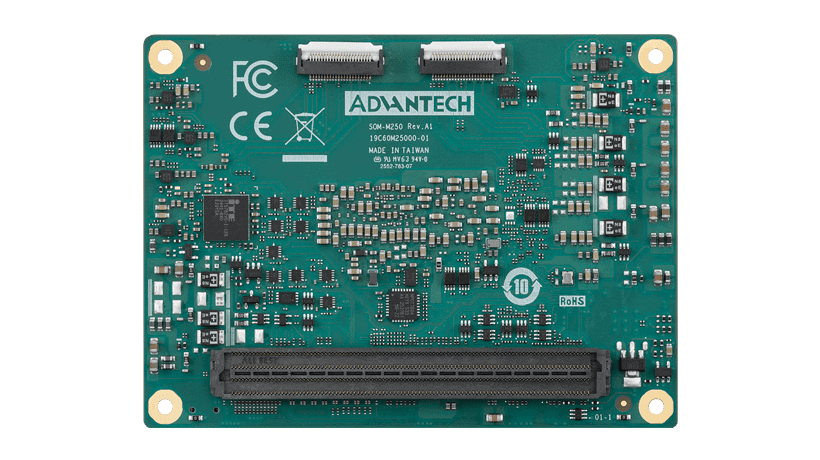

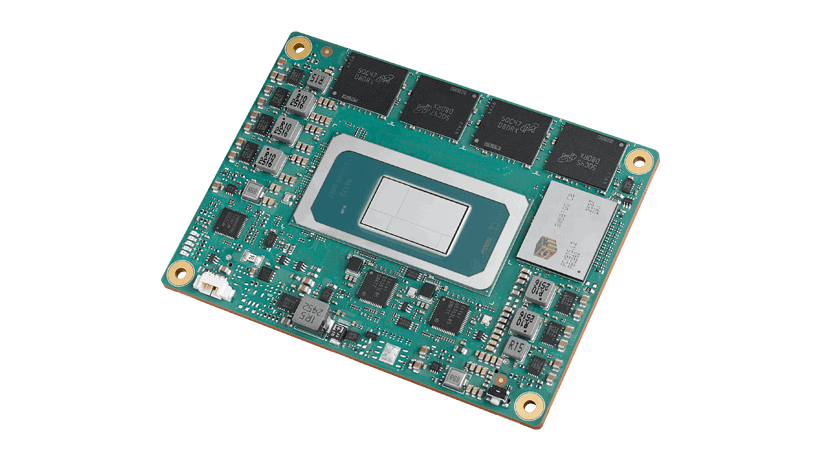

SOM-M250 – COM HPC Mini Module Intel Core Ultra 300 by Advantech

The Advantech SOM-M250 is a cutting-edge COM HPC Mini v1.2 computer-on-module designed for demanding embedded applications requiring exceptional processing power and AI capabilities. Built on Intel Core Ultra 300 series processors codenamed Panther Lake-H, this module delivers up to 16 cores in a hybrid architecture combining Performance, Efficient, and Low Power Efficient cores with a configurable 25W TDP. The integrated Intel Xe3 graphics engine provides up to 192 execution units with hardware acceleration for video encoding and decoding including AV1 and VVC/H266 codecs, while the built-in NPU enables edge AI workloads with up to 122 graphic pTOPs on the top-tier configuration. Memory performance is exceptional with dual-channel LPDDR5x support running at speeds up to 9600MT/s and maximum capacity of 64GB with In-Band ECC for data integrity. The SOM-M250 offers comprehensive connectivity including PCIe Gen5 x8 expansion, dual 2.5 Gigabit Ethernet ports, up to four USB4 ports, USB 3.2 Gen2, and onboard NVMe SSD storage up to 1TB via PCIe Gen4 x4. Display capabilities include triple simultaneous independent displays through eDP and dual DisplayPort/HDMI outputs supporting resolutions up to 4096×2304 at 60Hz. Additional features include MIPI-CSI camera interfaces, CAN bus, TPM 2.0 security, and comprehensive GPIO options. The module operates across standard 0 to 60°C and extended -40 to 85°C temperature ranges with wide input voltage support from 8.5V to 20V, making it suitable for industrial automation, edge computing, machine vision, defense applications, and critical infrastructure deployments. AS9100 compliance ensures quality standards for aerospace and defense markets. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.
