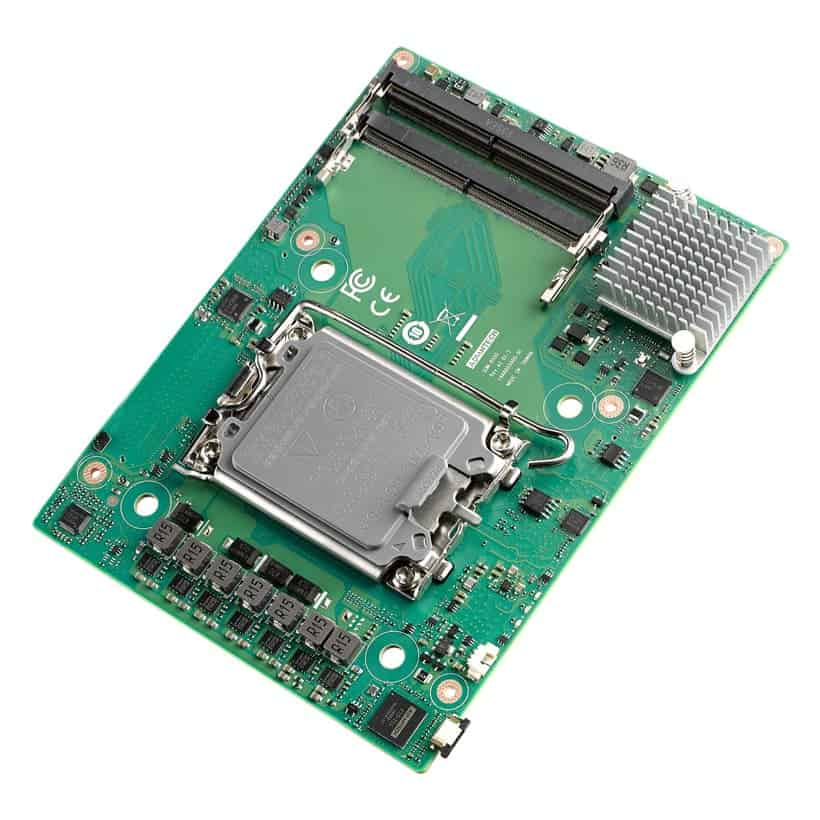

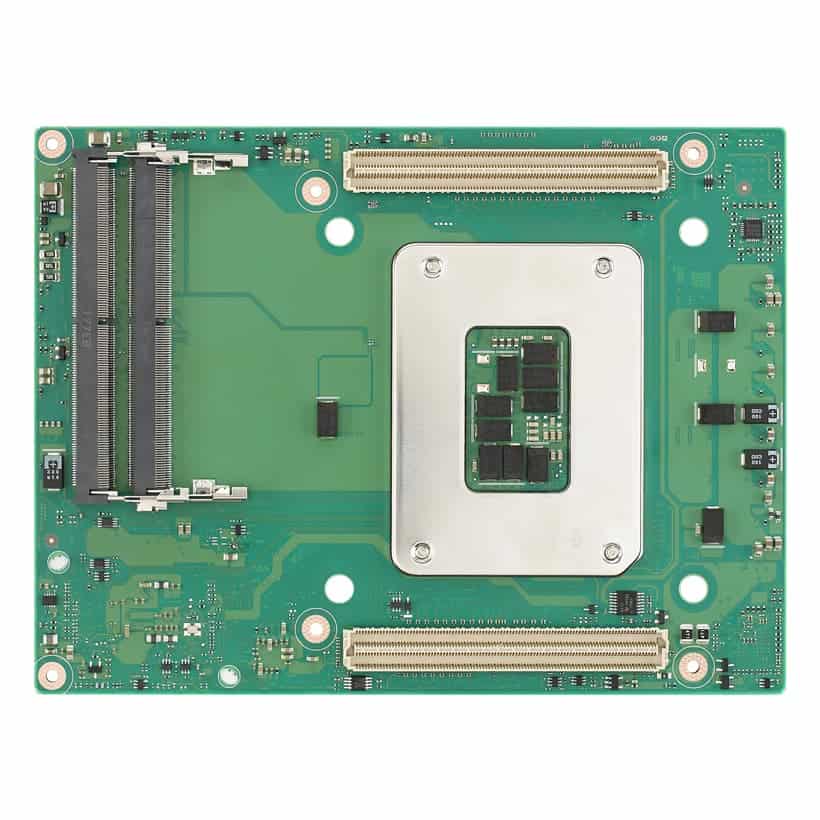

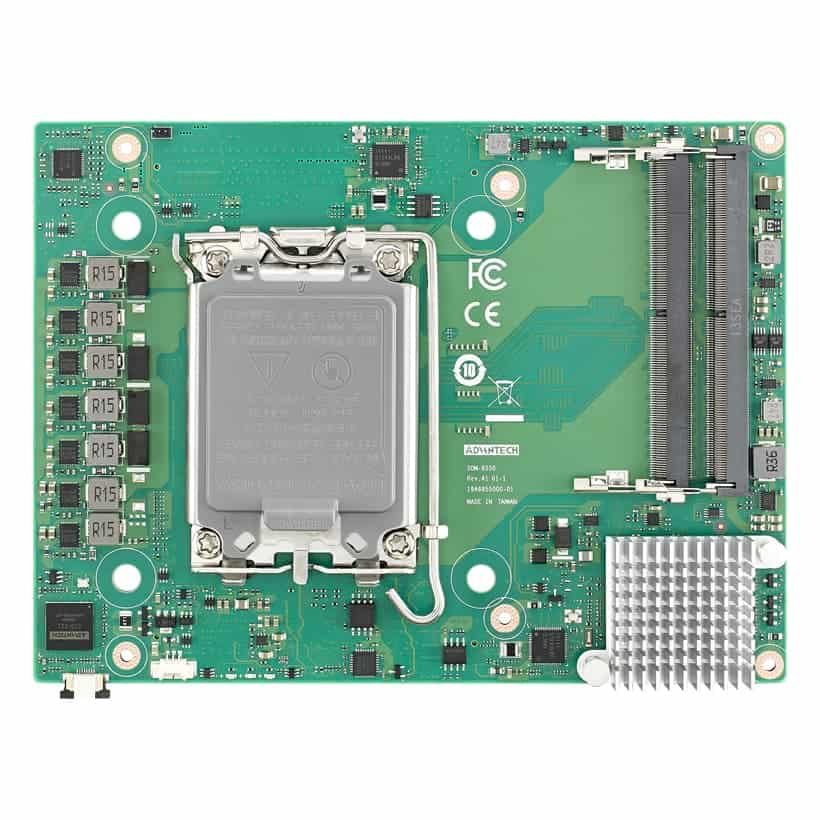

SOM-C350/R/B – COM-HPC Client Size C Module by Advantech

The Advantech SOM-C350/R/B represents a cutting-edge COM-HPC Client Size C computer-on-module designed for demanding embedded applications requiring high performance and extensive connectivity. Built around Intel 12th Gen Alder Lake-S, 13th Gen Raptor Lake-S, and the newest Bartlett Lake-S Core S2 processors, this module offers exceptional processing capabilities with configurations ranging from dual-core Pentium G7400E up to 24-core i9-13900E and Core 7 251E processors with TDP options from 46W to 65W. The module utilizes the Intel R680E Platform Controller Hub and supports up to 128GB of DDR5 memory at 4000 MT/s across four SO-DIMM sockets with optional ECC functionality for enhanced data integrity in mission-critical applications. Display capabilities are comprehensive with support for quad simultaneous independent displays through three DDI ports supporting HDMI 2.1 and DisplayPort 1.4a, plus eDP 1.4b HBR3 for embedded panel integration. The expansion options are extensive featuring 16 lanes of PCIe Gen5 configurable as 1×16 or 2×8, along with additional PCIe Gen4 and Gen3 lanes from both CPU and PCH. Networking is handled by dual 2.5GbE controllers while USB connectivity includes eight USB 3.2 Gen2x1 ports with optional USB 3.2 Gen2x2 support. The module integrates Advantech iManager for system monitoring and WISE-PaaS DeviceOn for IoT device management capabilities. Security features include optional TPM 2.0 and optional BMC support for remote management. Operating within 0 to 60°C temperature range and measuring 160 x 120mm, the SOM-C350/R/B is ideal for factory automation, intelligent transportation, smart city infrastructure, medical imaging systems, and edge AI applications requiring substantial compute power in a standardized form factor. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.
