TCP270

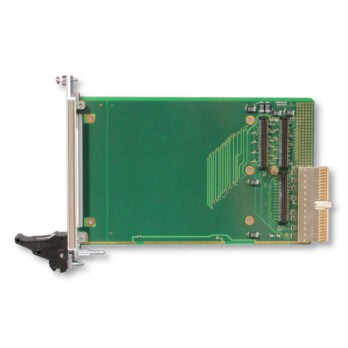

TCP270 – PMC Carrier for 3U CompactPCI Systems by TEWS Technologies

The TEWS Technologies TCP270 is a passive 3U CompactPCI carrier board that adapts a single-width PMC module for use in CompactPCI systems, supporting 32-bit/33 MHz PCI bus access and conforming to PICMG 2.0 Rev 3.0. With both front panel I/O and optional rear I/O at the J2/P2 connector per PICMG 2.3 R1.0, it is designed for defence, aerospace, and industrial embedded computing integrators building flexible and cost-effective I/O solutions with PMC devices. Operating from -40 to +85 °C, it is available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.
contct-now-icon (2) Get datasheet
Description

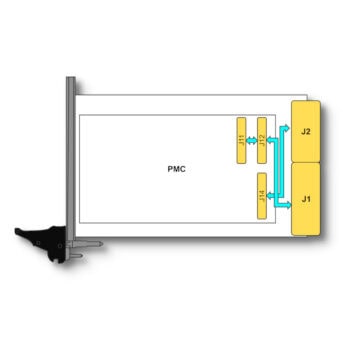

The TEWS Technologies TCP270 is a standard passive 3U CompactPCI carrier board designed to integrate a single-width PMC module into 3U CompactPCI chassis systems, enabling embedded computing integrators to leverage the wide ecosystem of PMC I/O modules within cost-effective and modular CompactPCI architectures. The TCP270 conforms to PICMG 2.0 Revision 3.0 and supports a PCI 2.2-compliant interface operating at 33 MHz and 32 bits, with 5 V and 3.3 V PCI I/O signalling voltages both supported. The board measures 160 x 100 mm and features one PMC site conforming to the PMC standard, with front panel I/O provided as standard and optional rear I/O available at the CompactPCI J2/P2 connector with PICMG 2.3 R1.0 PMC signal mapping — available as the TCP270-11R variant. It is important to note that using PMC I/O on the J2/P2 connector precludes the use of 64-bit CompactPCI backplanes. Operating across a wide temperature range of -40 to +85 °C and available in RoHS-compliant variants (TCP270-10R for front I/O only; TCP270-11R for front and rear I/O), the TCP270 is a proven mechanical adapter for engineers developing defence, aerospace, industrial automation, and research system I/O platforms that require the flexibility of PMC devices within 3U CompactPCI environments. Compatible accessories include the TCP030-TM and TCP040-TM transition modules and the TCP001-FP front panel extension. Available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.
Features
  • Passive 3U CompactPCI carrier for one single-width PMC module conforming to PMC standard
  • PICMG 2.0 Rev 3.0 compliant with PCI 2.2 interface at 33 MHz and 32-bit bus width
  • Front panel I/O standard with optional rear I/O at J2/P2 per PICMG 2.3 R1.0 mapping
  • Supports 5 V and 3.3 V PCI I/O signalling voltages for broad PMC module compatibility
  • Operating temperature range of -40 to +85 °C suits defence and rugged industrial environments
  • Available as RoHS-compliant TCP270-10R (front I/O) or TCP270-11R (front and rear I/O)
Specifications
Size 160 mm x 100 mm
Interface PCI 2.2 compliant
Bus 33 MHz; 32 bit
Signal Voltage 5V and 3.3V
Slots One PMC site
Rear I/O Connector J2 optional
Temp Range -40°C to +85°C
  • Defence and aerospace embedded systems integrating PMC modules into 3U CompactPCI chassis
  • Industrial automation CompactPCI platforms requiring flexible single-width PMC I/O adaptation
  • Research and test systems building modular 3U CompactPCI I/O solutions using PMC devices
  • Rugged embedded computing integrators needing cost-effective PMC to CompactPCI adaptation
