CP6007-SA

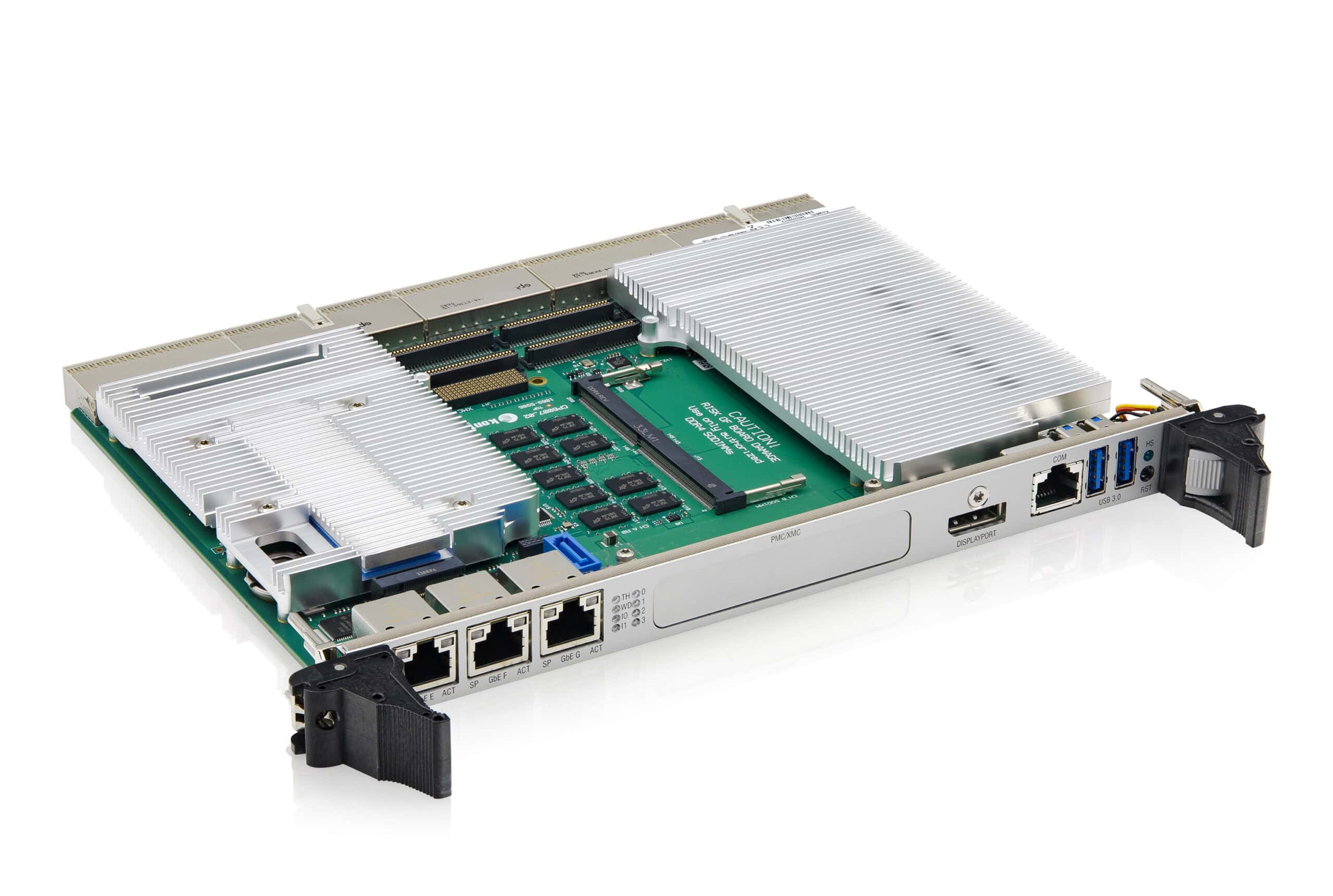

Kontron CP6007-SA – 11th Gen Intel Xeon CompactPCI Blade for High-Performance Computing

The Kontron CP6007-SA is a 6U CompactPCI blade processor board based on 11th Generation Intel Xeon W-series processors, designed for high-performance computing, virtualisation, and multi-CPU server applications in harsh environments. With up to 64GB ECC DDR4 memory, NVMe and SATA storage, XMC and PMC expansion, TPM 2.0 security, and a 10-year availability commitment, it is a proven choice for mission-critical embedded computing. Available from Recab across the Nordic and Baltic regions.
contct-now-icon (2) Get datasheet
Description

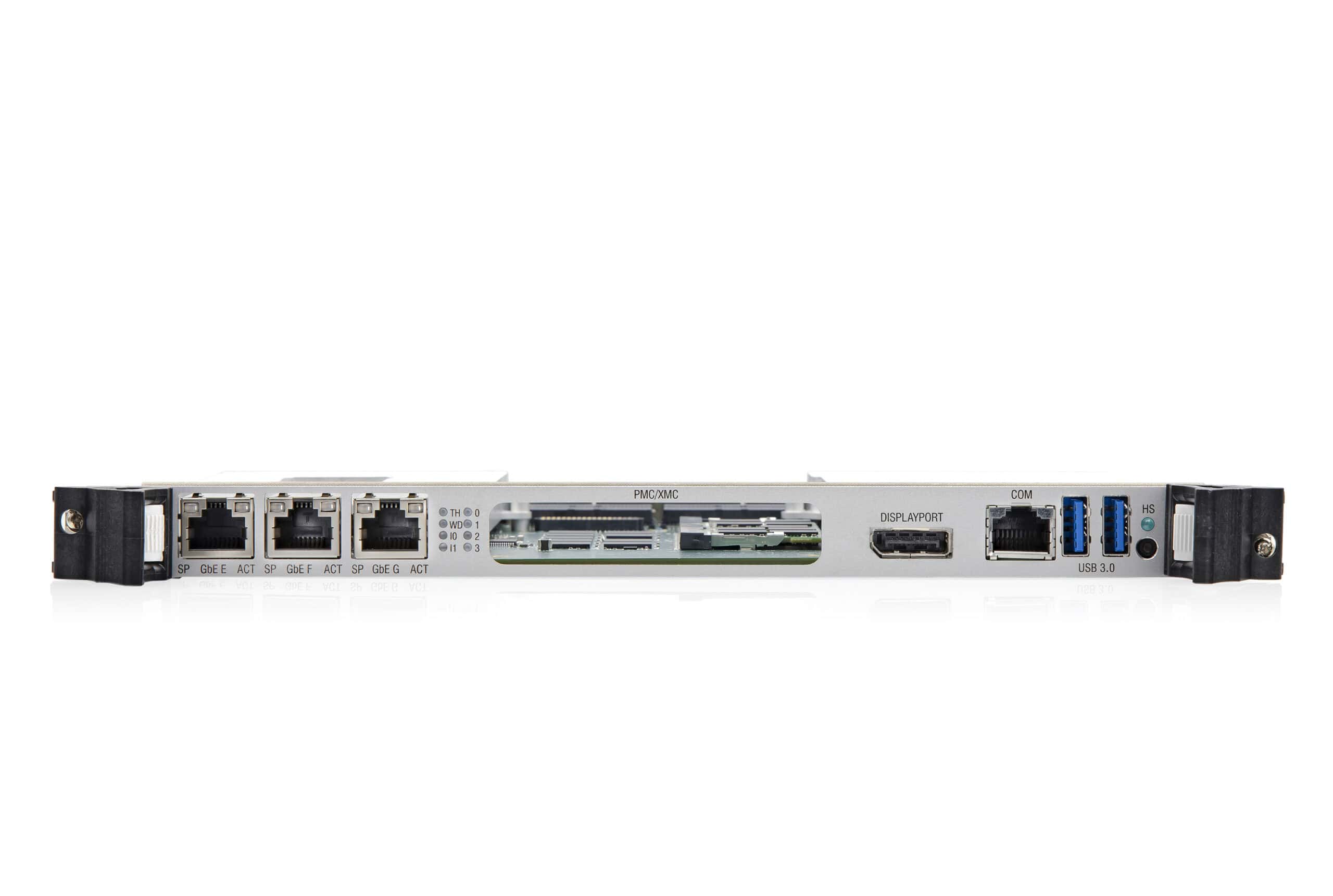

The Kontron CP6007-SA is a high-performance CompactPCI blade designed for demanding embedded computing applications where processing power, reliability, and long-term availability are non-negotiable. Based on the 11th Generation Intel Xeon W-11555MRE with 6 cores or W-11865MRE with 8 cores, both built on 10nm technology, the CP6007-SA delivers outstanding performance-per-watt ratios with scalable power budgets between 35W cTDP and 45W TDP. Memory configurations include 32GB soldered ECC DDR4 at up to 3200 MHz, with an optional additional 32GB SODIMM slot for a maximum of 64GB. Storage is handled via dual-mode NVMe/SATA M.2 2280 sockets, with additional SATA ports routed to rear I/O. The front panel provides 3x GbE on RJ45, 2x USB-A, RS232 on RJ45, DisplayPort, and 8 bicolor status LEDs including IPMI and watchdog indicators. The board features an XMC site supporting XMC.3 x8 PCIe, or alternatively a PMC site, for market-standard expansion cards. Security is addressed via Trusted Platform Module TPM 2.0 and optional Kontron Security Solution. IPMI 1.5 management complies with PICMG 2.9 for full system management integration. The board is PICMG 2.0, 2.1 hot swap, and 2.16 packet switching compliant, operating from 0°C to 60°C with forced airflow cooling. MTBF is approximately 110,000 hours per MIL-HDBK-217. Supported operating systems include Windows 10 64-bit, Windows Server 2019, Linux, and VxWorks 7.x on request. Available from Recab, your Nordic distributor for Kontron embedded computing solutions.
Features
  • 11th Generation Intel Xeon W-series processor with 6 or 8 cores and up to 64GB ECC DDR4 memory
  • PICMG 2.0 CompactPCI with hot swap PICMG 2.1 and packet switching PICMG 2.16 compliance
  • XMC site supporting XMC.3 x8 PCI Express or alternatively a PMC expansion site
  • Trusted Platform Module TPM 2.0 and optional Kontron Security Solution for hardware-level security
  • IPMI 1.5 system management with watchdog, thermal monitoring and bicolor status LEDs
  • 10-year availability commitment with European design and production
Specifications
Processor Intel® Xeon® W-11555MRE
Memory Up To 64 GByte ECC
Storage NVMe and SATA Options
Ethernet 3x 1000BASE-T
Dimensions 233 x 160 x 20.5 mm
Weight Approx. 800 gr
Power 45W Typical
Operating Temp. 0 °C to +60 °C
MTBF Approx. 110K hrs
Compliance CE / UKCA
  • High-performance embedded server and virtualisation platforms
  • Defence and aerospace mission computing based on CompactPCI
  • Telecommunications and industrial infrastructure requiring long-term hardware availability
  • Multi-CPU PICMG 2.16 server applications in harsh environments
