PP F84/m3d

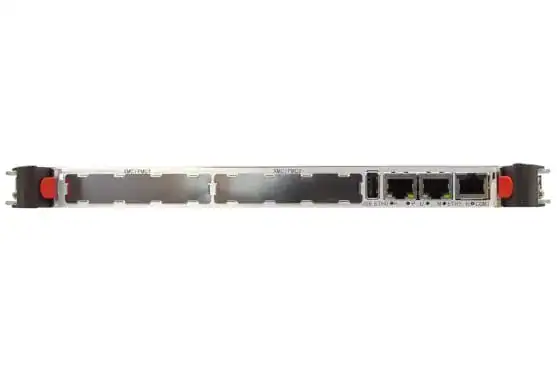

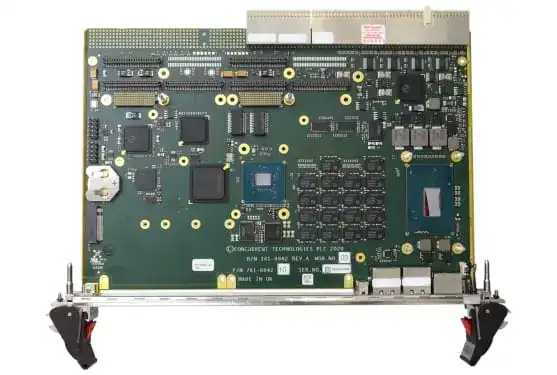

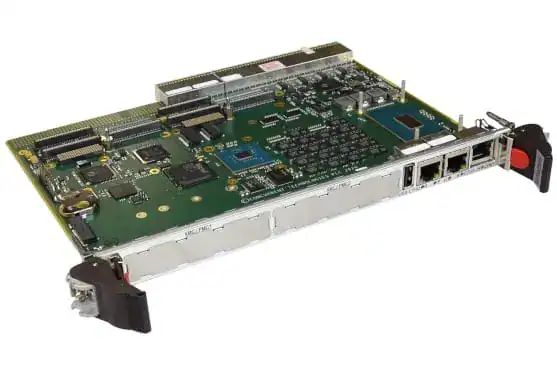

PP F84/m3d – 6U CompactPCI Processor Board with Intel Core i3 by Concurrent Technologies

The Concurrent Technologies PP F84/m3d is a single-slot, air-cooled 6U CompactPCI processor board based on the 9th Generation Intel Core i3-9100HL quad-core processor, designed to extend system life-cycles in demanding embedded computing environments. With 16 GB soldered DDR4 ECC DRAM, four Gigabit Ethernet interfaces, dual PMC/XMC expansion slots, M.2 NVMe SSD support, TPM 2.0 security, and PICMG 2.1 hot swap compliance, the PP F84/m3d delivers robust and reliable performance for defence, industrial automation, and communications infrastructure applications. Available from Recab, your Nordic partner for Concurrent Technologies CompactPCI processor board solutions.
Description
The Concurrent Technologies PP F84/m3d is a single-slot 6U CompactPCI processor board built around the 4-core Intel Core i3-9100HL 9th Generation processor with 6 MB SmartCache running at up to 1.6 GHz, supported by the Intel CM246 Platform Controller Hub. Targeting applications that require life-cycle extension while maintaining high computing capability, the PP F84/m3d provides 16 GB of soldered DDR4 ECC DRAM in a dual-channel architecture with single-bit error correction, ensuring data integrity in mission-critical deployments. Storage is accommodated by an M.2 SSD site supporting Type 2230 through 2280 devices with a PCIe x4 NVMe interface compatible with NVMe 1.3, enabling fast and reliable local solid-state storage. Four Gigabit Ethernet interfaces implemented via an Intel I350-AM4 quad-port controller provide two front panel RJ45 connections and two rear connections via J3 with optional PICMG 2.16 packet switching backplane support. The board features dual PMC/XMC module slots for local I/O expansion, with PMC sites supporting 32/64-bit PCI at up to 66 MHz and 64-bit PCI-X at 100 MHz, and XMC sites supporting PCIe x8 up to Gen 3 with VITA 61 connectors. Serial connectivity, USB 2.0, IPMI baseboard management, PICMG 2.1 hot swap, and TPM 2.0 security round out the specification. UEFI 2.7 with Secure Boot, Intel Boot Guard, and dual SPI BIOS Flash provide firmware resilience. Operating from 0°C to +55°C in N-Series configuration, the PP F84/m3d suits defence electronics, telecommunications infrastructure, and industrial computing platforms requiring CompactPCI longevity and ECC-protected memory. Available from Recab, your Nordic partner for Concurrent Technologies CompactPCI processor board solutions.
Features
  • Intel Core i3-9100HL quad-core 9th Generation processor at up to 1.6 GHz with CM246 PCH supports sustained computing performance.
  • 16 GB soldered DDR4 ECC DRAM in dual-channel architecture provides error-correcting memory for mission-critical operation.
  • M.2 NVMe SSD site supporting Types 2230 to 2280 with PCIe x4 interface delivers fast and reliable local solid-state storage.
  • Four Gigabit Ethernet interfaces via Intel I350-AM4 with optional PICMG 2.16 backplane support provide versatile network connectivity.
  • Dual PMC/XMC slots with PCIe Gen 3 x8 and PCI-X 100 MHz support broad mezzanine module compatibility for I/O expansion.
  • UEFI 2.7 with Secure Boot, Intel Boot Guard, dual SPI BIOS Flash, and TPM 2.0 deliver comprehensive platform security
Specifications
Processor Intel i3-9100HL
Memory 16 Gbytes DDR4 ECC
Ethernet 4 x 1 GbE
Storage 1 x M.2 SSD
USB 1 x USB 2.0
Temperature 0°C to +55°C
Shock 20g, 11ms
  • Defence embedded computing platforms requiring long life-cycle CompactPCI processor boards
  • Telecommunications infrastructure systems needing hot-swappable high-availability processing
  • Industrial control systems with PICMG 2.16 packet switching backplane connectivity
  • Test and measurement systems requiring dual PMC/XMC mezzanine I/O expansion capability
