RT-661R

RT-661R – 4U Rackmount Industrial Chassis with 7-Slot Backplane by AAEON

The AAEON RT-661R is a 4U rackmount industrial chassis supporting ATX motherboards and featuring a seven-slot full-height PCIe expansion backplane, front USB 2.0 ports, a 120mm filtered cooling fan, and flexible drive bay configurations including up to four 3.5-inch and one 2.5-inch internal bays. Designed for standalone and rackmount industrial computing applications, it supports ATX or mini-redundant power supplies and is compatible with multiple Intel chipset generations from H110 through Q670E, making it ideal for demanding embedded and industrial PC deployments. Available from Recab, your Nordic partner for AAEON industrial computing solutions.
contct-now-icon (2) Get datasheet
Description

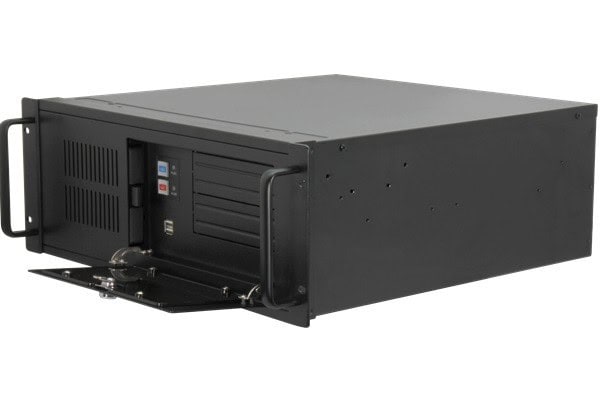

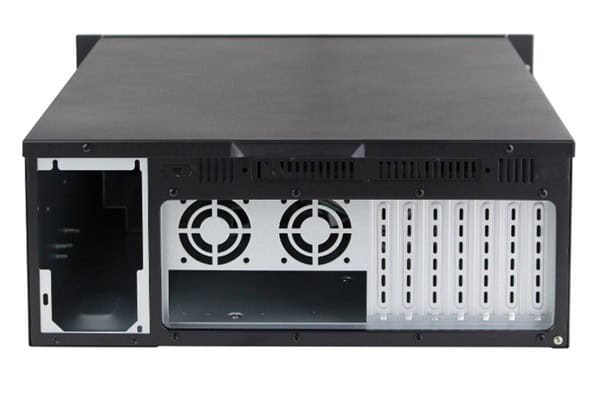

The AAEON RT-661R is a robustly constructed 4U rackmount industrial chassis designed to house ATX form factor motherboards in both rack-mounted and standalone configurations, offering systems integrators and industrial computing engineers a flexible, expansion-rich platform for building purpose-built industrial computers. At the heart of the RT-661R is a seven-slot full-height PCIe expansion backplane with support for a wide range of add-on cards, including GPU, capture, frame grabber, and communications boards, making it well suited for vision inspection, data acquisition, simulation, and multi-port communications applications. The front panel provides two USB 2.0 ports, power and reset switches, and power and HDD status LEDs, while a 120mm front cooling fan with a filter provides effective thermal management for installed expansion cards. Drive bay options are flexible, supporting either four 3.5-inch plus one 2.5-inch internal bays, or two external 5.25-inch bays plus one 3.5-inch and one 2.5-inch internal bay, accommodating a range of storage configurations. Power is supplied via an ATX PSU or optional mini-redundant power supply, with two optional 60mm rear fans for additional cooling. The chassis measures 427 mm wide by 450 mm deep by 177 mm high and is offered in factory-configured variants with Intel Q670E, C246, Q370, H310, Q170, and H110 chipset motherboards supporting Intel Core processors from the 6th through 13th generations. Operating temperature ranges from 0 to 45°C. Available from Recab, your Nordic partner for AAEON industrial computing solutions.
Features
  • Seven full-height PCIe expansion slots accommodate GPU, capture, communications, and industrial add-on cards.
  • ATX motherboard support spans Intel platforms from 6th through 13th Gen Core processors across six chipset options.
  • Flexible drive bay configuration supports up to four 3.5-inch plus one 2.5-inch internal bays or external 5.25-inch bays.
  • 120mm front cooling fan with filter provides effective thermal management for populated expansion card configurations.
  • Supports ATX or optional mini-redundant power supply for enhanced power availability in critical deployments.
  • Front panel USB 2.0 ports, power switch, reset button, and status LEDs provide convenient operator access and monitoring.
Specifications
Dimension 16.8" x 17.7" x 6.9"
Weight Around 12 kgs
Power ATX or Mini-Redundant
Temperature 0°C ~ 45°C
Storage 0%~90%RH, non-condensing
USB USB 2.0 x 2
Drive Bays 3.5" x 4 + 2.5" x 1
Expansion Full height PCIe slot x 7
Color Black
Fan Front: 120mm x 1
  • Industrial rackmount computing with multi-slot PCIe expansion for vision and data acquisition systems
  • Factory automation server and controller deployment in 4U rack or standalone chassis configurations
  • Multi-port communications and simulation systems requiring seven full-height PCIe expansion slots
  • Embedded industrial PC integration with 6th to 13th Gen Intel Core ATX motherboard configurations
