DIC-317

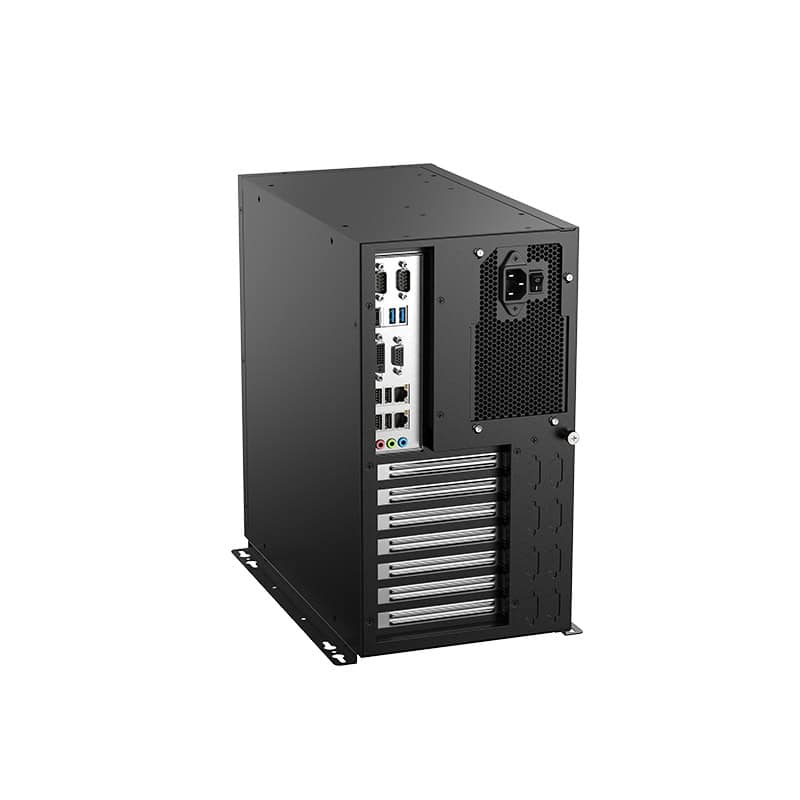

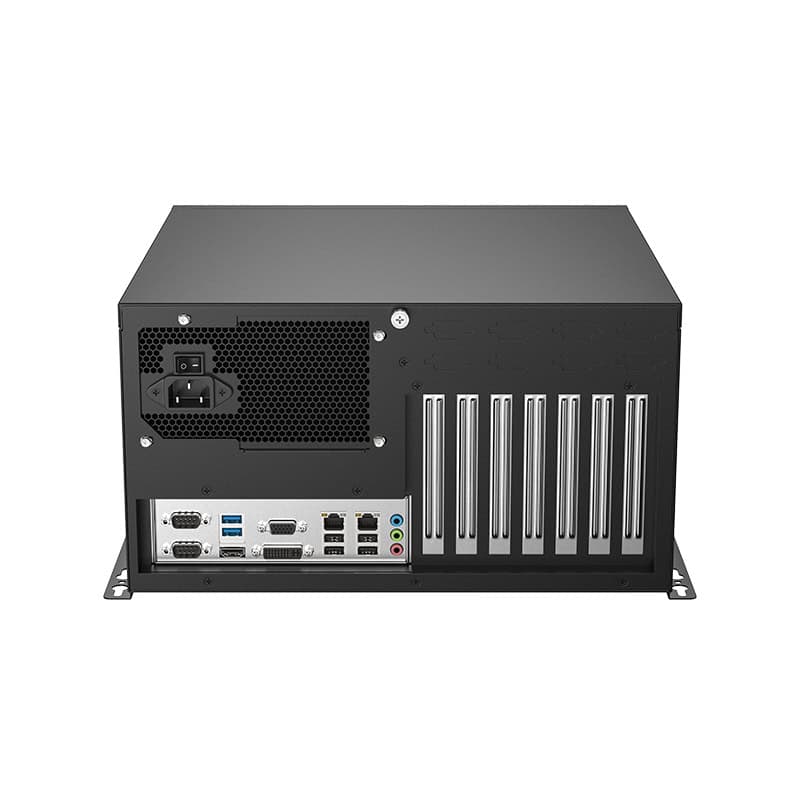

DIC-317 – 7-Slot Wallmount Chassis for ATX Motherboards by Darveen

The Darveen DIC-317 is a robust seven-slot wall-mount industrial chassis designed to accommodate ATX motherboards with PCIe and PCI expansion, offering one 3.5-inch and two 2.5-inch drive bays, an ATX power supply bay, a 10cm ball-bearing cooling fan with replaceable filter, and front USB 2.0 and remote power switch support. Operating from 0°C to +50°C and weighing 7kg, it is CE and FCC Class A certified for industrial use. Available from Recab, your Nordic partner for Darveen industrial chassis solutions.
contct-now-icon (2) Get datasheet
Description
The Darveen DIC-317 is a wall-mount industrial computing chassis engineered to house full ATX motherboards in environments where rack or desktop mounting is not practical. The seven-slot PCIe/PCI expansion capability makes it well-suited to high-I/O industrial computing applications such as machine control, data acquisition, test and measurement, and process automation, where multiple expansion cards including motion controllers, digital I/O boards, and communication adapters must be installed simultaneously alongside the main compute board. The chassis accommodates one 3.5-inch hard disk drive bay and two 2.5-inch drive bays for storage flexibility, and supports a standard ATX power supply for wide compatibility with off-the-shelf power units. Thermal management is handled by a 10cm ball-bearing cooling fan with a replaceable dust filter, enabling continuous 24/7 operation in environments where airborne particulates could otherwise compromise the system. The front panel provides two USB 2.0 ports, a power LED, and remote switch and power LED connections for integration into custom operator panels or cabinet doors. Dimensions are 330 x 325 x 180 mm with a 7kg weight, and the wall-mount design allows installation in control cabinets, machine frames, or panel interiors where conventional tower or desktop placement is not possible. Operating temperature is 0°C to +50°C with storage down to -20°C, and 10% to 85% relative humidity is supported. CE and FCC Class A certification is included. Available from Recab, your Nordic partner for Darveen industrial chassis solutions.
Features
  • Seven PCIe/PCI expansion slots accommodate multiple industrial expansion cards alongside an ATX motherboard
  • One 3.5-inch and two 2.5-inch drive bays provide flexible internal storage for OS, data, and application use
  • 10cm ball-bearing cooling fan with replaceable dust filter enables continuous 24/7 operation in dusty environments
  • Wall-mount design at 330 x 325 x 180 mm installs in control cabinets and machine frames without floor space
  • Front panel includes two USB 2.0 ports and remote switch/POWER LED connector for custom operator panels
  • CE and FCC Class A certified with 0°C to +50°C operating temperature and standard ATX power supply support
Specifications
Operating Temp 0 ~ 50℃
Storage Temp -20 ~ 60℃
Humidity 10 ~ 85% @ 40° C
Dimensions 330x325x180mm
Weight 7KG
  • Industrial machine control systems requiring wall-mounted ATX chassis with seven PCIe/PCI expansion slots
  • Data acquisition and test systems using multiple PCI/PCIe expansion cards in wall-mounted control cabinets
  • Process automation controllers requiring ATX form factor computing in a compact wall-mount industrial housing
  • Factory panel and cabinet installations requiring remote power switch and front USB access with ATX flexibility
