MANO561-H

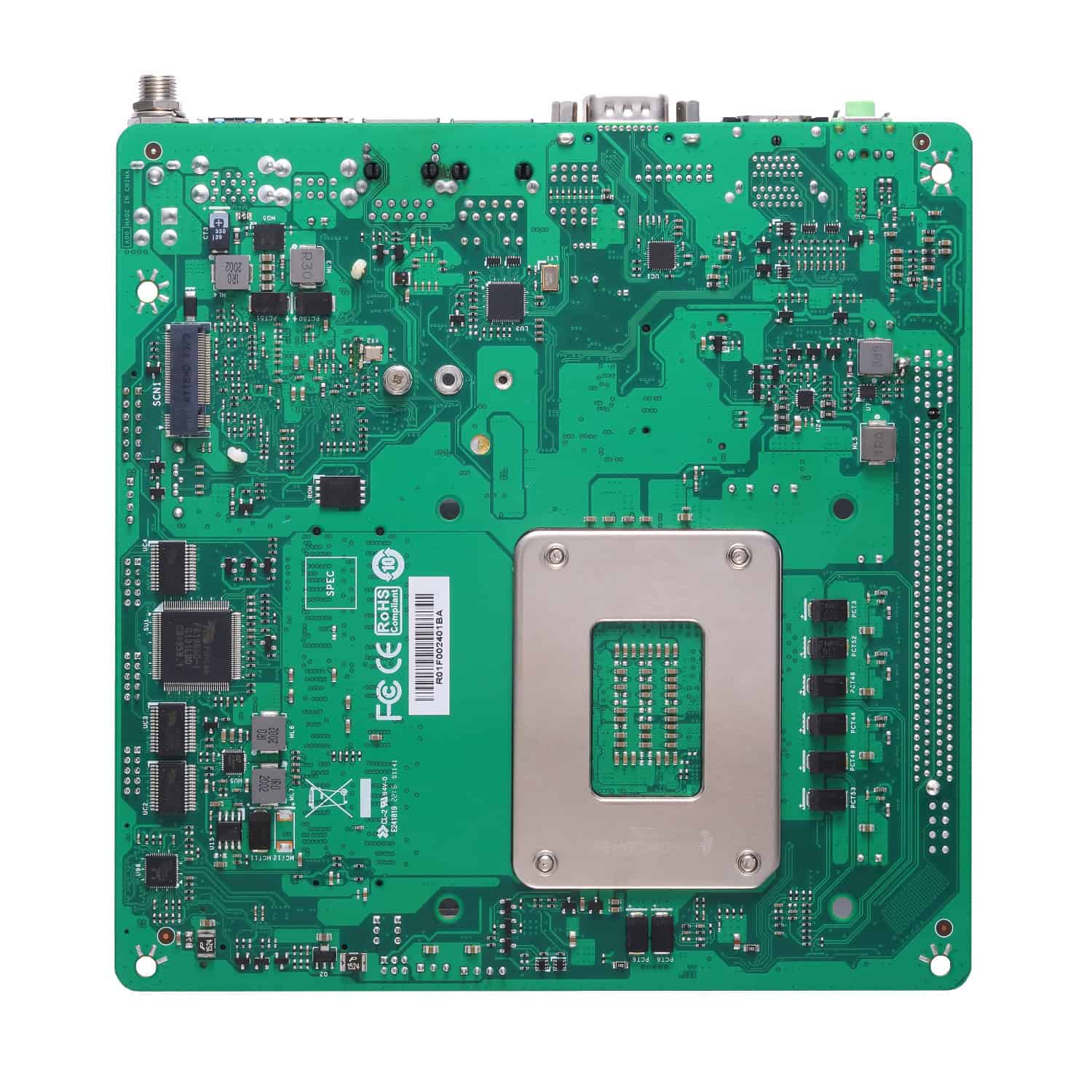

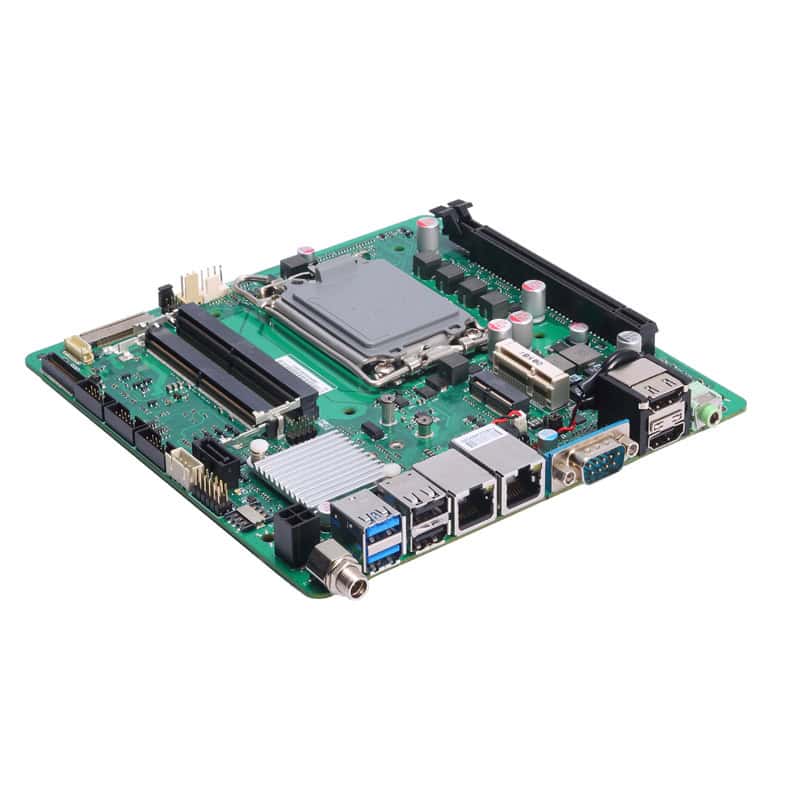

MANO561 – Thin Mini-ITX SBC with 14th/13th/12th Gen Intel Core by Axiomtek

The Axiomtek MANO561 is a Thin Mini-ITX single board computer supporting 14th, 13th, and 12th generation Intel Core i9/i7/i5/i3, Pentium, or Celeron LGA1700 processors up to 65W, with Intel H610 chipset, dual DDR4-3200 SO-DIMM up to 64GB, dual 2.5GbE LAN, 4 COM ports, PCIe x16, M.2, and a 12 to 24 VDC wide power input. Operating from 0°C to +60°C, it suits embedded system and HMI applications. Available from Recab, your Nordic partner for Axiomtek embedded computing solutions.
Description
The Axiomtek MANO561 is a Thin Mini-ITX single board computer engineered for embedded system designers, system integrators, and HMI application engineers who need the performance flexibility of the latest Intel LGA1700 processor platform in a compact 170 x 170 mm form factor. Supporting 14th, 13th, and 12th generation Intel Core i9, i7, i5, and i3, as well as Pentium and Celeron processors up to 65W TDP via the LGA1700 socket, the MANO561 covers the full range from cost-optimised Celeron configurations to high-performance Core i9 builds, all on the same board with the Intel H610 chipset and AMI BIOS. Two 260-pin DDR4-3200/2666/2400 SO-DIMM slots support up to 64GB of system memory, providing ample capacity for memory-intensive industrial applications. The dual network interfaces combine a 2.5GbE Intel I225-V port with a 1GbE Intel I219-V port, both supporting Wake-on-LAN and PXE boot, with the 2.5GbE port providing a meaningful bandwidth advantage for data-intensive embedded applications. Four serial COM ports, 2 USB 3.2 Gen1, 5 USB 2.0, dual HDMI, LVDS, VGA, and 8-channel DIO cover the full I/O requirements of complex HMI and automation systems. Expansion includes PCIe x16, M.2 Key B, M.2 Key E, a full-size Mini PCIe slot, and a SIM slot. Onboard TPM 2.0, a hardware watchdog timer with 255 levels, and a wide 12 to 24 VDC input complete the platform. Available from Recab, your Nordic partner for Axiomtek embedded computing solutions.
Features
  • LGA1700 socket supports Intel 12th to 14th gen Core i9/i7/i5/i3, Pentium, and Celeron CPUs.
  • Dual DDR4-3200 SO-DIMM slots support up to 64GB of system memory for data-intensive workloads.
  • Dual network interfaces include 2.5GbE Intel I225-V and 1GbE Intel I219-V with WoL and PXE.
  • Display outputs include dual HDMI, VGA, and optional LVDS for flexible multi-display configurations.
  • Onboard TPM 2.0, 255-level watchdog timer, and 12 to 24 VDC wide power input for embedded use.
  • PCIe x16, M.2 Key B, M.2 Key E, Mini PCIe, and SIM slot provide comprehensive expansion options.
Specifications
CPU LGA1700 Intel Core 14th/13th/12th Gen
Memory Up to 64GB DDR4
Chipset Intel H610
Power 12 to 24V DC Input
Ethernet 1 x 2.5GbE, 1 x Gigabit
USB 2 x USB 3.2, 5 x USB 2.0
Size 170 x 170 mm
Temperature 0°C to +60°C
I/O 4 x D-Sub Connectors
Storage 1 x SATA-600
  • Industrial HMI and automation control systems requiring compact Thin Mini-ITX SBC platforms
  • Embedded computing applications needing Intel 12th to 14th gen Core processor flexibility
  • Digital signage and multi-display systems using dual HDMI and optional LVDS display outputs
  • Edge computing and machine vision systems with PCIe x16 expansion and 2.5GbE networking
