K3931-N mITX

K3931-N mITX – Industrial Fanless Mini-ITX Motherboard by Kontron

The Kontron K3931-N mITX is an industrial Mini-ITX motherboard based on Intel Core i3 and Intel Processor N-Series (Alder Lake N) SoCs, built for fanless continuous operation across an extended temperature range of 0 to 60 degrees Celsius. DDR5-4800 memory, triple DisplayPort 1.4a outputs alongside dual-channel LVDS and eDP V1.4b, dual GbE including a 2.5 GbE port with TSN, four COM ports, 8-bit GPIO, and a wide 8–34 V DC input equip it for demanding industrial HMI, automation, and transportation computing applications. Available from Recab, your Nordic partner for Kontron industrial motherboard solutions.
contct-now-icon (2) Get datasheet
Description

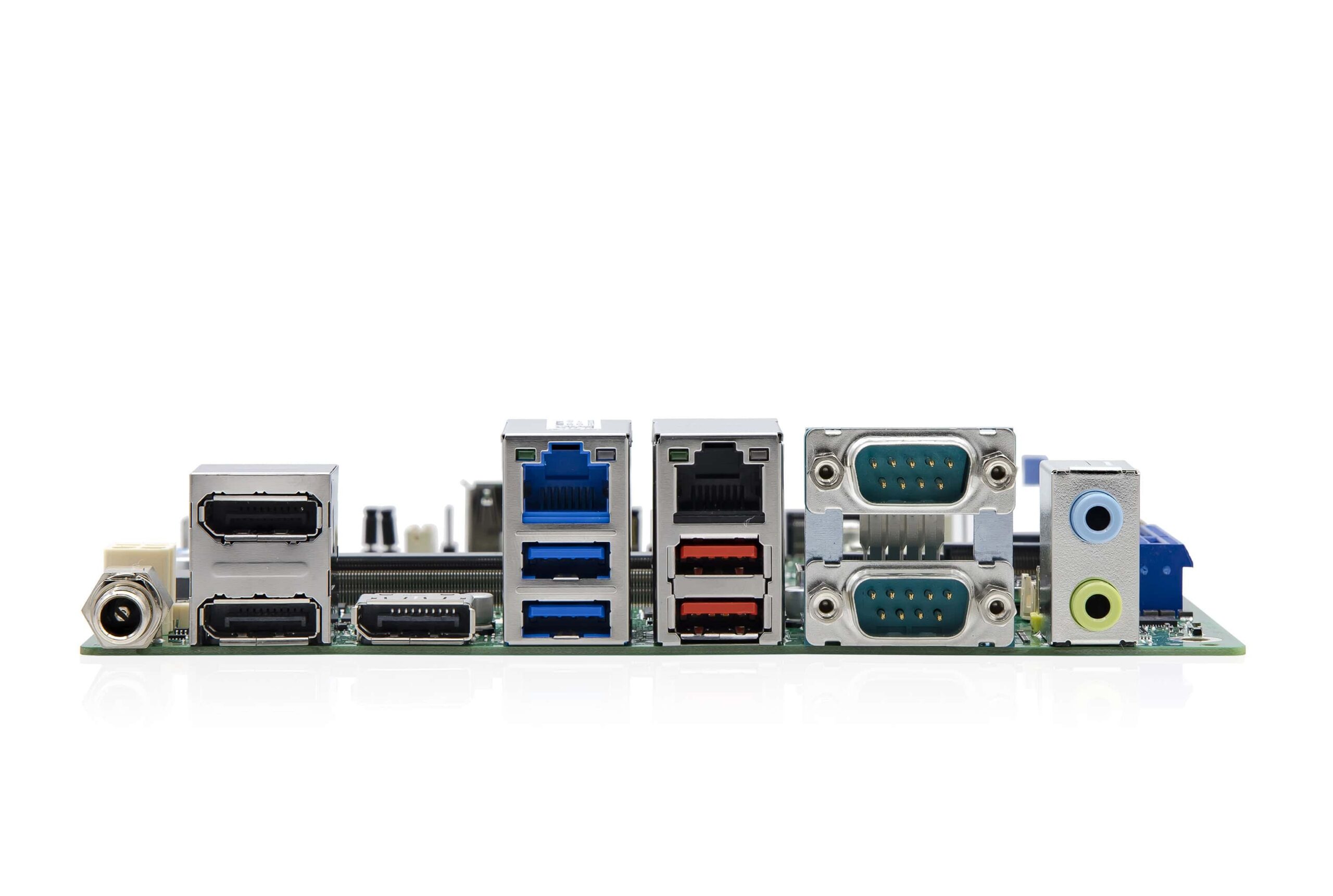

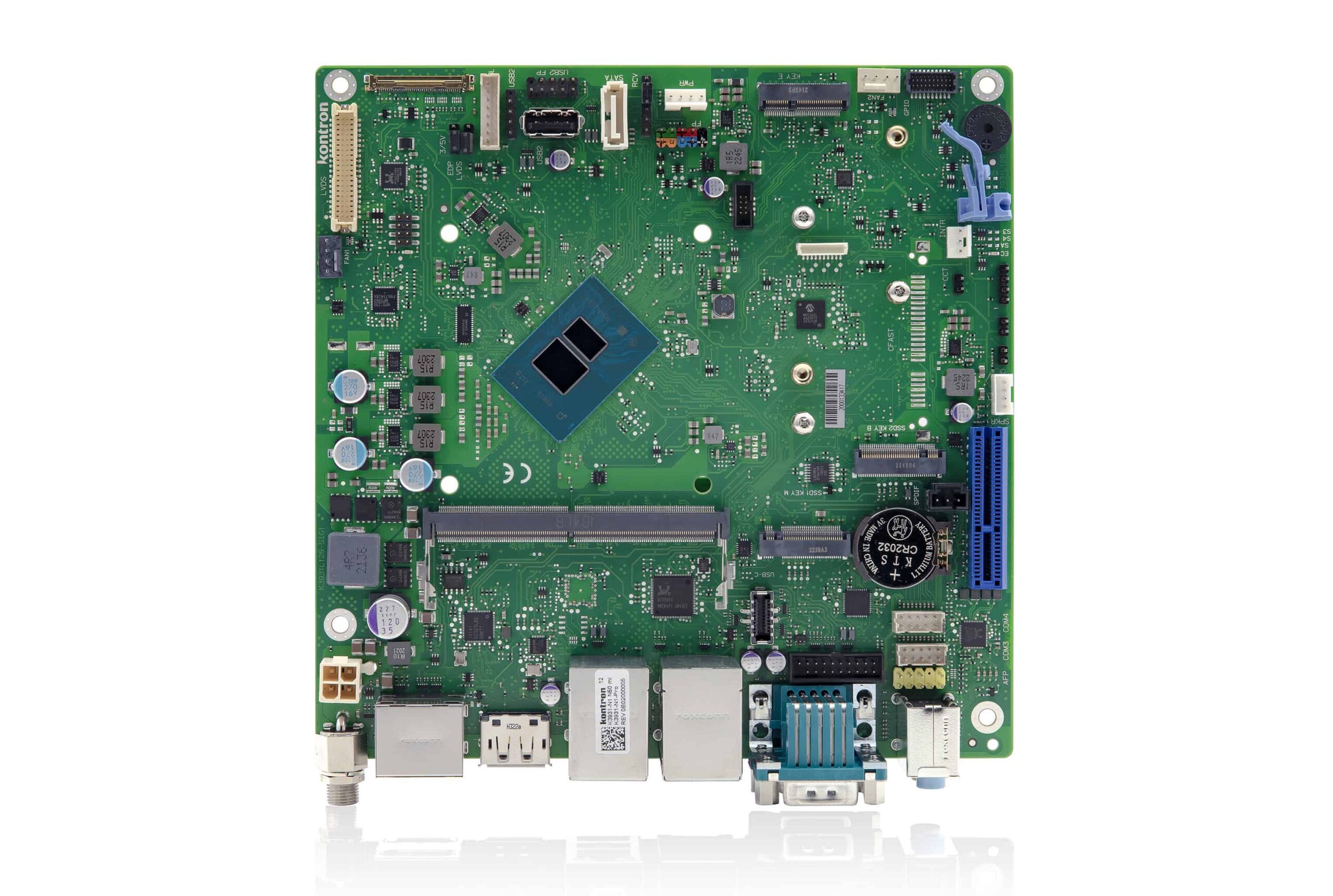

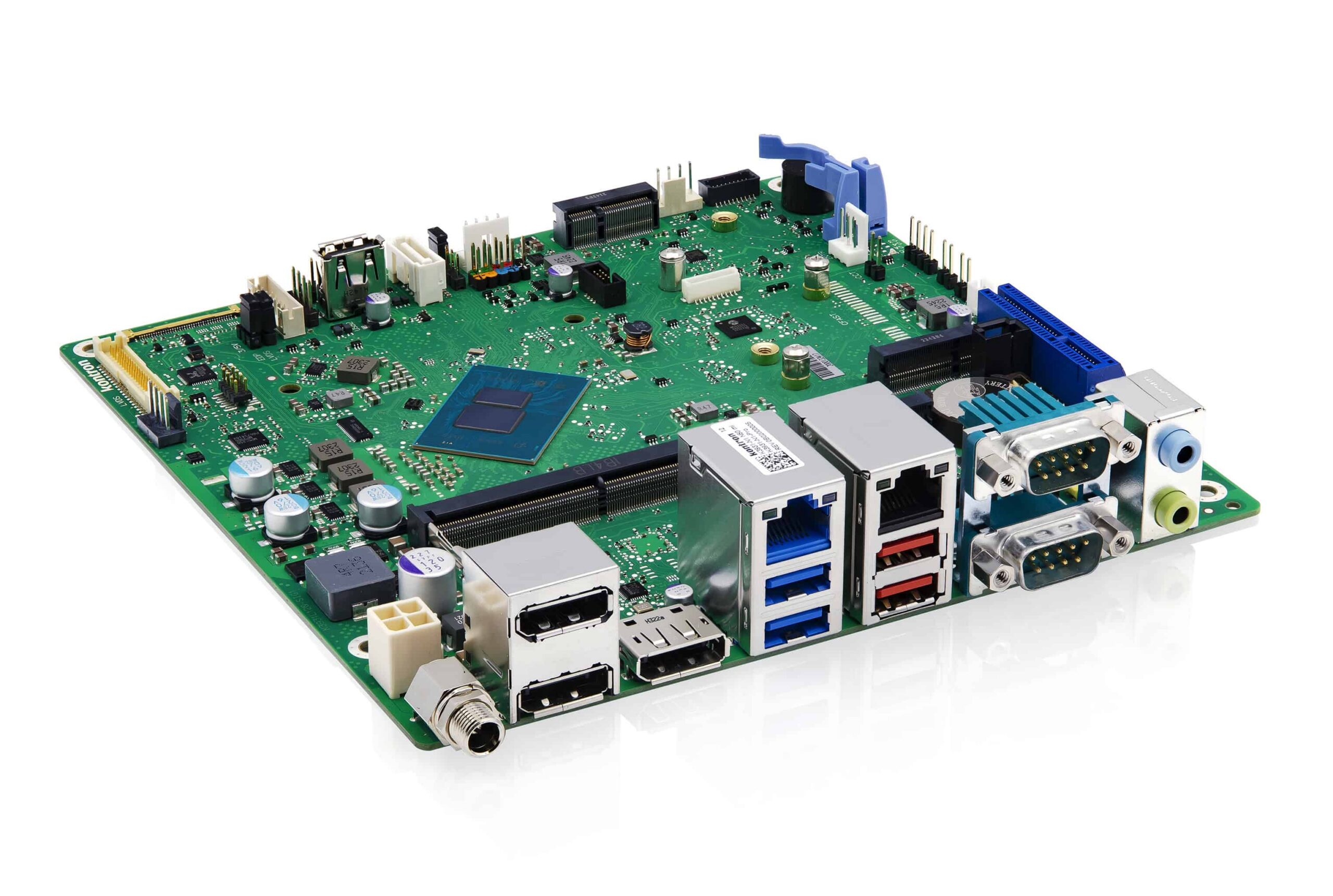

The Kontron K3931-N mITX is an industrial-grade Mini-ITX motherboard at 170 x 170 mm, based on the Intel Alder Lake N SoC platform and designed for 24/7 fanless continuous operation with an enhanced operating temperature range of 0 to 60 degrees Celsius. Processor options span the dual-core Intel Processor N50 at 6 W to the octa-core Intel Core i3 N305 at 15 W TDP, with Kontron’s cTDP feature enabling flexible TDP reduction down to 6 W. A single DDR5-4800 SO-DIMM socket supports up to 32 GB of non-ECC memory. Intel UHD Gen12 graphics with up to 32 execution units and Xe architecture drives up to three independent displays simultaneously via up to three DisplayPort V1.4a outputs, one embedded DisplayPort at 4K, and one dual-channel 24-bit LVDS output, making it particularly capable for multi-screen industrial HMI applications requiring both modern and embedded legacy panel interfaces. Dual Ethernet includes a Realtek 1 GbE port and an Intel I226LM 2.5 GbE port with TSN support and Wake-on-LAN for time-sensitive industrial networking. Serial I/O is extensive with four RS-232 COM ports onboard, one of which additionally supports RS-422 and RS-485, plus one ccTalk port for gaming and vending machine applications. Storage is served by SATA III, M.2 Key-M for NVMe and SATA SSDs, M.2 Key-B for SATA SSDs, and M.2 Key-E for WLAN and Bluetooth with CNVi support. One PCIe x4 open slot provides card expansion. The wide-range 8–34 V DC lockable input with external and internal options suits mobile vehicle and harsh-environment power architectures. Intel integrated TPM 2.0, 8-bit GPIO, hardware watchdog, and CE Class B with industrial immunity certification make the K3931-N mITX the right choice for factory automation, gaming terminals, transportation computing, and embedded machine vision. Available from Recab, your Nordic partner for Kontron industrial motherboard solutions.
Features
  • Intel Alder Lake N SoC options from 6 to 15 W TDP with flexible cTDP scaling enable a broad range of fanless thermal designs.
  • Triple DisplayPort V1.4a combined with dual-channel 24-bit LVDS and eDP supports up to three simultaneous independent displays.
  • Intel I226LM 2.5 GbE with TSN and Wake-on-LAN delivers low-latency deterministic networking for industrial time-sensitive protocols.
  • Four RS-232 COM ports including one RS-422/485 port and one ccTalk port cover diverse legacy serial and vending device integration.
  • Wide-range 8–34 V lockable DC input with external and internal options suits demanding mobile and vehicle power environments.
  • Intel integrated TPM 2.0, 8-bit GPIO, hardware watchdog, and industrial EMC immunity ensure secure and robust 24/7 operation.
Specifications
Processor Intel® Alder Lake N SoC
Memory Up to 32 GByte DDR5
Graphics Intel® UHD Gen12 Xe
USB 3x USB 2.0, 4x USB 3.2
Ethernet 1x GbE, 1x 2.5GbE
Storage 1x SATA, 3x M.2 Slots
Power 8V - 34V DC Input
Dimensions 170 x 170 mm
Temperature 0 °C - 60 °C
Certification CE Class B, FCC Verified
  • Industrial HMI and multi-screen operator panels requiring fanless operation up to 60 degrees Celsius
  • Transportation and vehicle embedded computing with wide-range 8–34 V DC lockable power input
  • Gaming terminal and vending machine platforms requiring onboard ccTalk serial port support
  • Factory automation edge computing with four COM ports, 8-bit GPIO, and PCIe expansion
