12117

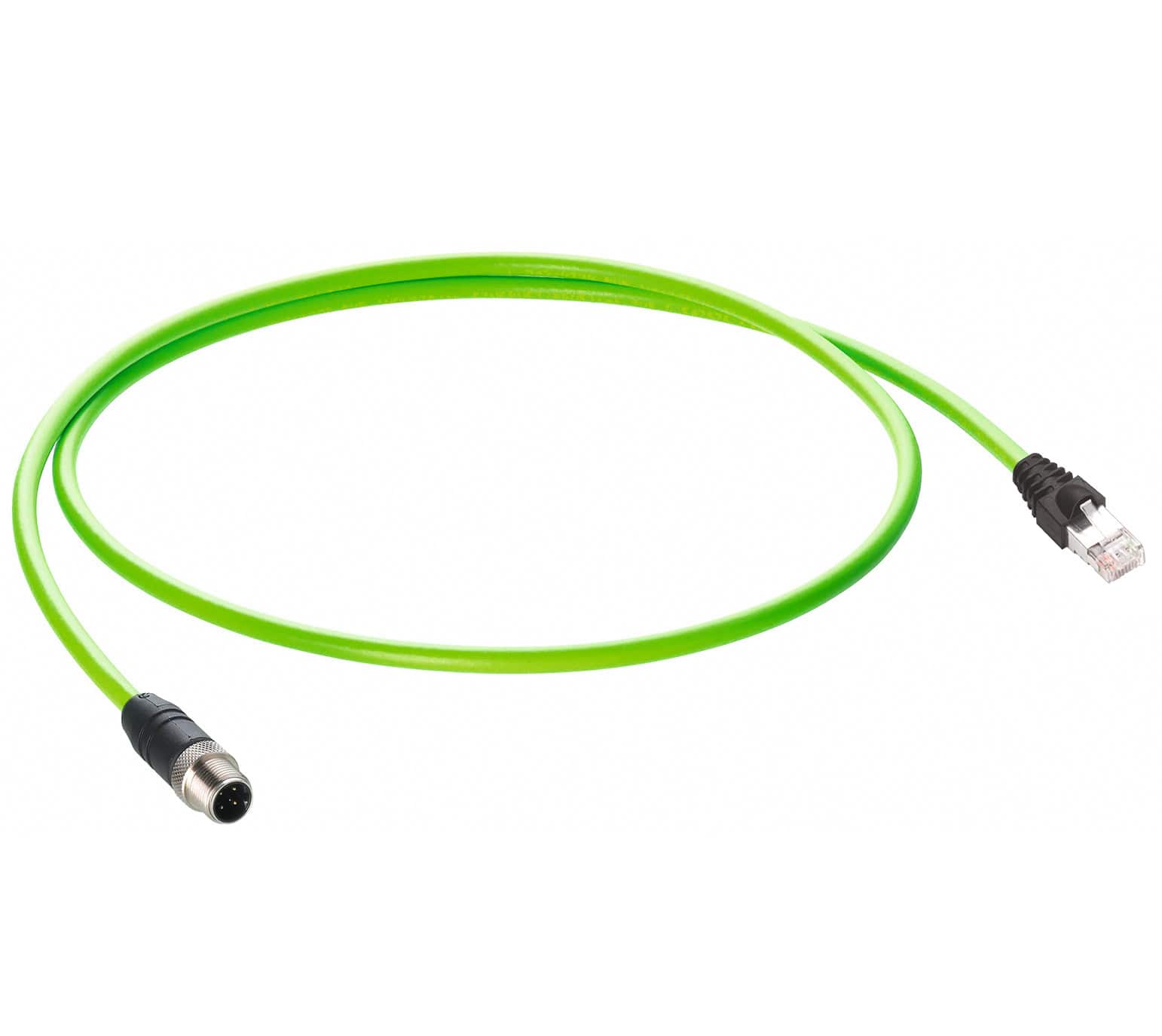

0985 342 104 – M12 to RJ45 Fast Ethernet Cat5e Data Cordset by Lumberg Automation, a Belden Brand

The Lumberg Automation 0985 342 104 is a shielded Fast Ethernet Cat5e double-ended data cordset with a male straight D-coded M12 connector on one end and a male straight RJ45 connector on the other, rated for 100 Mbit/s data transmission at 30 V AC / 42 V DC and 1.5 A. Using a flexible PUR green 4-wire cable available in lengths from 0.3 m to 70 m, it provides IP65/IP67/IP69K protection on the M12 side. Available from Recab, your Nordic partner for Lumberg Automation industrial connectivity solutions.
contct-now-icon (2) Get datasheet
Description

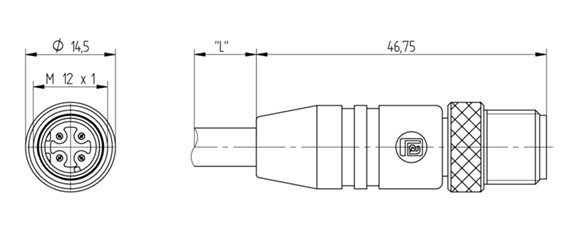

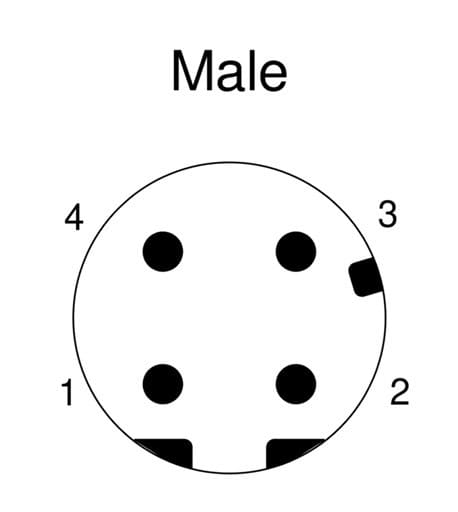

The Lumberg Automation 0985 342 104 is a shielded Fast Ethernet Cat5e industrial data cordset engineered for direct connectivity between M12 D-coded industrial Ethernet ports and standard RJ45 network equipment in factory automation, process control, and transportation applications. The male straight D-coded M12 connector on Side 1 conforms to IEC 61076-2-101 with IP65, IP67, and IP69K protection when mated and locked, gold-plated CuSn contacts with a nickel-plated CuZn shielding shell, and a coupling screw attachment torque of 50 to 60 Ncm for secure vibration-resistant locking. The male straight RJ45 connector on Side 2 conforms to IEC 60603-7 with IP20 protection and gold-plated copper alloy contacts, providing standard Ethernet termination compatible with all industrial switches, routers, and network devices. The PUR green 4-wire cable (2x2x0.34 mm²) is constructed to IEC 11801 and EN 50288-2-2 CAT 5e specifications at 100 MHz bandwidth, with a foil and copper braid shield for EMC immunity, cold flexibility for drag chain installations, excellent oil and hydrolysis resistance, PVC-free and silicone-free construction, and LABS-free status. The cordset is rated for 30 V AC / 42 V DC at 1.5 A for 100 Mbit/s Fast Ethernet data transmission and is available in a wide range of standard lengths from 0.3 m to 70 m to suit every installation distance. Pollution degree 3 and overvoltage category I ratings confirm suitability for industrial environments. Available from Recab, your Nordic partner for Lumberg Automation industrial connectivity solutions.
Features
  • Male D-coded M12 to male RJ45 shielded cordset for 100 Mbit/s Fast Ethernet Cat5e data transmission.
  • IP65, IP67, and IP69K protection on M12 side when mated with compatible Lumberg connectors.
  • PUR green 4-wire 2x2x0.34 mm² cable with foil and copper braid shield for EMC immunity.
  • PVC-free, silicone-free, and LABS-free cable construction with excellent oil and hydrolysis resistance.

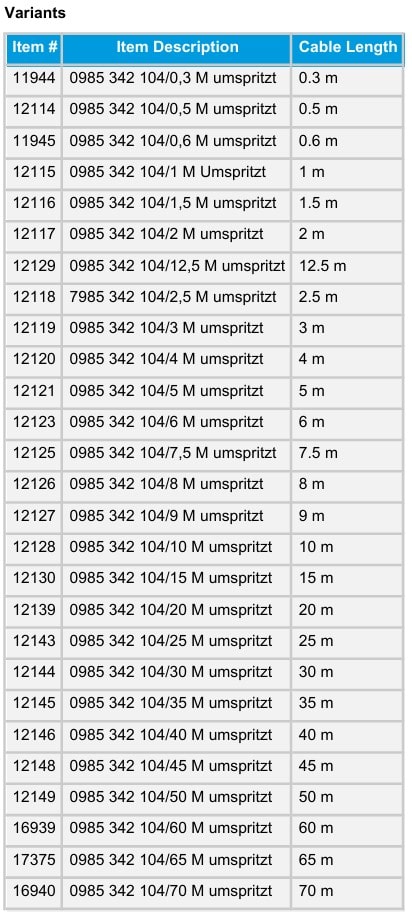

  • Available in over 25 standard lengths from 0.3 m to 70 m for all installation distances.
  • Rated 30 V AC / 42 V DC at 1.5 A with M3 M12x1 locking screw for vibration-resistant connections.
Specifications
  • Factory automation field device connection from M12 industrial Ethernet ports to RJ45 switches
  • Process control networks linking M12 D-coded equipment to standard RJ45 infrastructure
  • Transportation and machine tool applications requiring shielded M12 to RJ45 Ethernet cabling
  • Industrial robot and PLC connectivity between M12 Ethernet ports and network distribution panels
