GDM3106-A0U-10F – Form A 90° Valve Connector 3+PE by Hirschmann, a Belden Brand

The Hirschmann GDM3106-A0U-10F is a field attachable Form A valve connector from the GDM Standard series, featuring a 90-degree angled body with 3+PE screw-type contacts, rated at 250 V and 16 A with an M16 cable gland accepting cables from 4.5 to 9 mm diameter. Conforming to DIN EN 175301-803-A and ISO 4400, it offers IP65 protection, an operating temperature range from -40 to +125°C, and a black glass-fibre reinforced PA GF housing for reliable use in hydraulic, pneumatic, and industrial machinery valve wiring applications. Available from Recab, your Nordic partner for Hirschmann connector solutions.
contct-now-icon (2) Get datasheet
Description

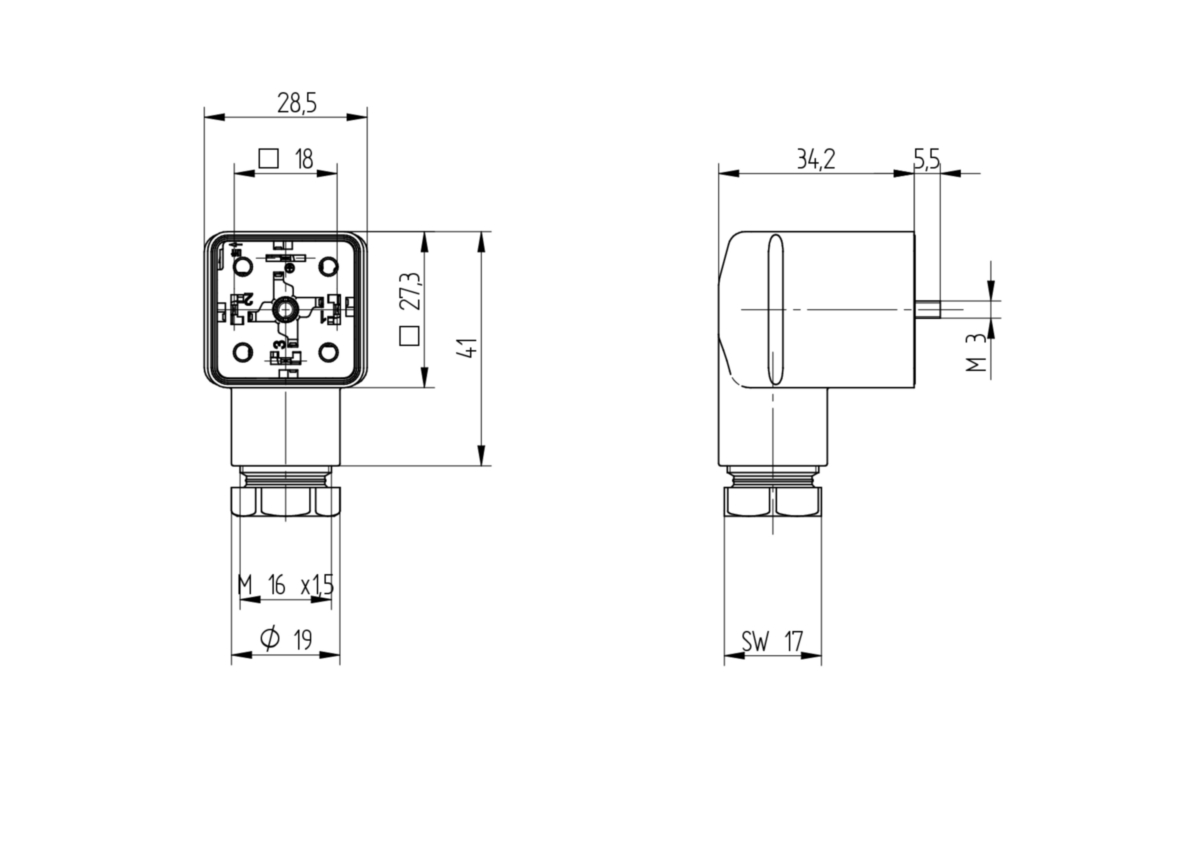

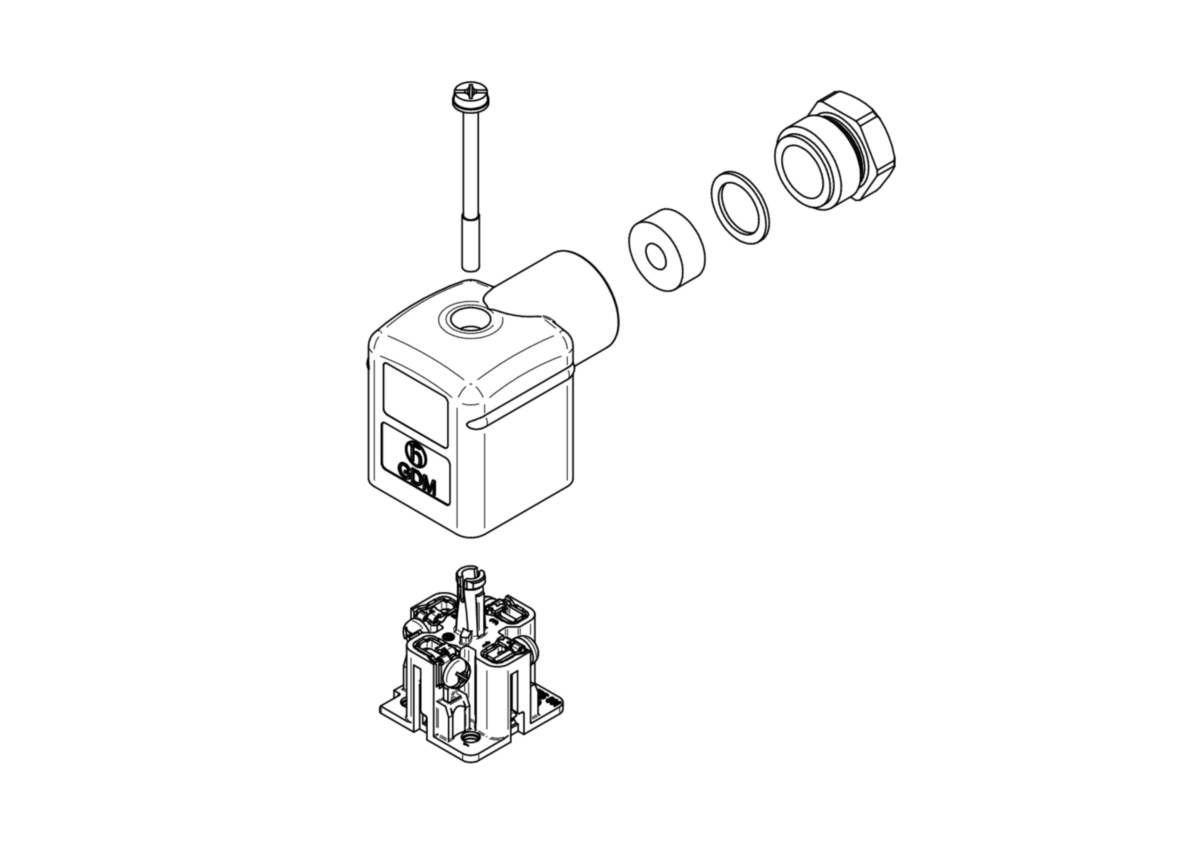

The Hirschmann GDM3106-A0U-10F is a field attachable valve connector from the GDM Standard product family, designed to the Form A 18 mm profile specified in DIN EN 175301-803-A and ISO 4400, and intended for engineers wiring solenoid valves and actuators in hydraulic systems, pneumatic machinery, and general industrial automation equipment. The angled 90-degree body design allows cable routing parallel to the valve face, reducing installation clearance requirements in compact machine builds, while the screw-type contact termination accommodates conductors from 0.25 to 1.5 mm² cross section via an M16 cable gland suitable for cable diameters from 4.5 to 9 mm. The connector carries 3+PE contacts with the protective earth routed across the cable outlet, rated at 250 V operating voltage with a 4.0 kV rated impulse voltage and 16 A current capacity, meeting Overvoltage Category III per DIN EN 60664-1. The housing, contact bearer, and cable gland are all manufactured from glass-fibre reinforced polyamide PA GF with UL 94 HB flammability classification, providing good mechanical and chemical resistance in industrial environments. Contacts are brass CuZn with copper-tin alloy plating, and insulation resistance exceeds 10^9 ohm with contact resistance below 10 mOhm. IP65 protection is achieved when mated and locked in accordance with IEC standards. The operating temperature range spans -40 to +125°C for the connector body, with mating-dependent ranges from -30 to +90°C with NBR gasket or -15 to +125°C with FKM gasket. The GDM3106-A0U-10F carries VDE registration number E349 and SEV approval, is REACH compliant and RoHS compliant, and is supplied in bulk packaging of 200 pieces with a central M3x35 steel screw included. Gaskets are sold separately. Available from Recab, your Nordic partner for Hirschmann connector solutions.
Features
  • Form A 18 mm angled 90-degree body conforms to DIN EN 175301-803-A and ISO 4400 for direct compatibility with standard solenoid valve interfaces.
  • Three plus PE screw-type contacts accept conductors from 0.25 to 1.5 mm² via an M16 cable gland for cables of 4.5 to 9 mm diameter.
  • Rated at 250 V operating voltage with a 4.0 kV impulse voltage rating and 16 A current capacity to Overvoltage Category III.
  • IP65 ingress protection is achieved when the connector is correctly mated and locked, suitable for industrial splash and dust environments.
  • Operating temperature spans -40 to +125°C for the connector body, with gasket-dependent mating ranges up to +125°C using FKM seals.
  • Glass-fibre reinforced PA GF housing, contact bearer, and cable gland provide robust mechanical and chemical resistance with UL 94 HB flammability rating.
Specifications
  • Solenoid valve wiring on hydraulic and pneumatic machinery requiring DIN EN 175301-803-A Form A connectors
  • Industrial automation equipment needing angled 90-degree valve connectors with screw termination in compact machine builds
  • Process plant and factory machinery valve control wiring where IP65 protection and high temperature tolerance are required
  • OEM machine builders specifying field attachable 3+PE valve connectors conforming to ISO 4400 for solenoid actuators
