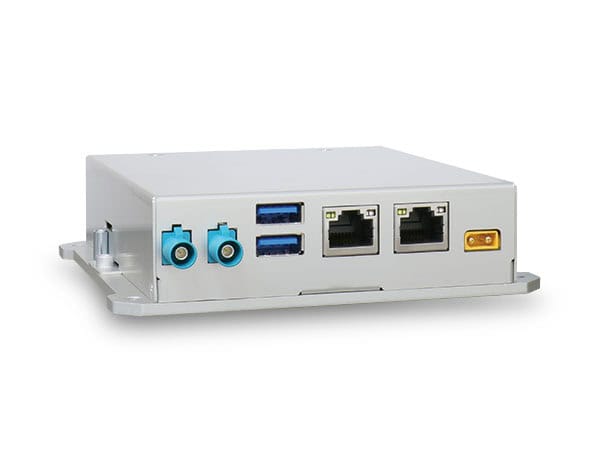

FLYC-300 Series – Low-SWaP AI Mission Computer by Neousys Technology

The Neousys Technology FLYC-300 Series is an ultra-lightweight AI mission computer designed specifically for integration into unmanned aerial vehicles (UAV) and unmanned ground vehicles (UGV), where Size, Weight, and Power (SWaP) constraints are as critical as computational capability. Weighing just 297 grams excluding enclosure and measuring 124 x 123 x 29.8mm, the FLYC-300 is built around the NVIDIA Jetson Orin NX system-on-module, available in 8GB (up to 100 TOPS) and 16GB configurations, with a 1024-core NVIDIA Ampere GPU and ARM Cortex-A78AE CPU providing the AI inference performance needed for autonomous navigation, obstacle avoidance, and real-time object detection and tracking. Camera connectivity is a particular strength, with 2x GMSL2 FAKRA Z connectors supporting HDR and 3D cameras at up to 1920×1080 at 60FPS or 2880×1860 at 30FPS per channel, complemented by 1x GbE and 1x 2.5GbE Ethernet for RGB, infrared, and hyperspectral camera streams, plus 1x USB 3.2 Gen 2 and 1x USB 3.2 Gen 1 for lidar and radar sensor connection. Flight controller communication is handled via configurable UART and CAN bus 2.0 interfaces, with isolated 2x DI and 4x DO GPIO. Storage and expansion use an M.2 2230 M-key NVMe Gen4 x4 slot and an M.2 3042/3052 B-key slot with internal micro SIM for 4G/5G module installation. The XT-30 DC input supports 4S to 14S LiPo battery packs from 12 to 60VDC. Operating temperature reaches -25 to +60°C with heat spreader attachment and -25 to +40°C without, with MIL-STD-810H Method 514.8 vibration and Method 516.8 shock qualification. CE and FCC Class A certified to EN 55032 and EN 55035, with EN 62368-1 safety compliance. Available from Recab, your Nordic partner for Neousys Technology edge AI solutions.
