1870/0424

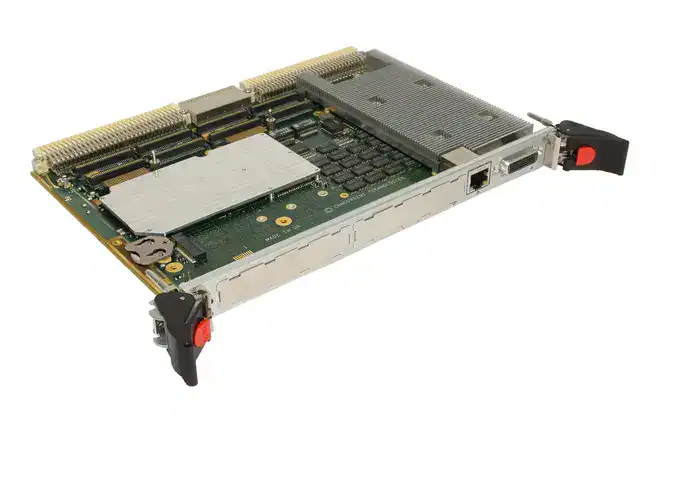

Rhea (VP ECx/msd) – VME Board with Intel Atom x7000 Series by Concurrent Technologies

The Concurrent Technologies Rhea (VP ECx/msd) is a low-power 6U VME single board computer based on Intel Atom x7000 Series processors, available in 4-core and 2-core variants, designed for long life-cycle embedded applications. With 16 GB soldered DDR4 DRAM with in-band ECC, dual PMC/XMC expansion slots, four Gigabit Ethernet interfaces, SATA, USB 3.2, DisplayPort, GPIO, serial interfaces, TPM 2.0 security, and support for Linux and Windows, the Rhea VP ECx/msd delivers a rich I/O set within the established VME64x form factor. Available from Recab, your Nordic partner for Concurrent Technologies VME board solutions.
Description
The Concurrent Technologies Rhea (VP ECx/msd) is a 6U VME single board computer built around Intel Atom x7000 Series processors, offering either a 4-core Intel Atom x7433RE at 1.5 GHz or a 2-core Intel Atom x7213RE at 2.0 GHz to balance compute performance and power consumption for long life-cycle embedded applications in defence, aerospace, and industrial sectors. Soldered 16 GB DDR4 DRAM at 3200 MT/s with in-band ECC provides error-correcting memory optimised for reliable operation in demanding environments without the risk of memory module unseating under vibration. Four Gigabit Ethernet interfaces via an Intel I350-AM4 controller offer two front panel RJ45 connections and two rear connections, one of which supports VITA 31.1 for Gigabit Ethernet over VME64x backplanes with 50V isolation via the P0 connector. Single or dual PMC/XMC mezzanine slots support front panel and rear VITA 35 I/O, with PMC sites accommodating 32/64-bit PCI at 33/66 MHz and 64-bit PCI-X at 100 MHz, and XMC sites supporting PCIe x1 Gen 1 through Gen 3, enabling broad mezzanine module compatibility for mission-specific I/O expansion. An M.2 on-board storage option, USB 3.2 front panel ports, DisplayPort graphics, RS-232/422/485 serial interfaces, GPIO, and stereo audio via P2 complete the interface set. TPM 2.0, dual SPI BIOS Flash, Secure Boot, and optional sanitisation utility software provide platform security. Environmental options span N-Series at 0°C to +70°C, E-Series at -25°C to +70°C, and K-Series at -40°C to +85°C with humidity sealant. Available from Recab, your Nordic partner for Concurrent Technologies VME board solutions.
Features
  • Intel Atom x7433RE 4-core or x7213RE 2-core options balance performance and power for long life-cycle VME applications.
  • 16 GB soldered DDR4 DRAM at 3200 MT/s with in-band ECC ensures data integrity in mission-critical operation.
  • Four Gigabit Ethernet interfaces via Intel I350-AM4 including VITA 31.1 backplane support cover front and rear connectivity.
  • Dual PMC/XMC slots support PCIe Gen 3 x1 and PCI-X 100 MHz for broad mezzanine module I/O expansion compatibility.
  • K-Series environmental option covers -40°C to +85°C with humidity sealant for the most demanding deployment conditions.
  • TPM 2.0, dual SPI BIOS Flash, Secure Boot, and optional sanitisation software deliver comprehensive platform security.
Specifications
Processor Intel Atom x7000 Series
Cores 4-core or 2-core options
Memory 16GB DDR4 with ECC
Ethernet Up to 4 Gigabit Ethernet
Storage On-board SSD option
I/O Up to 2 x PMC/XMC interfaces
USB Up to 4 USB interfaces
Temperature -40°C to +85°C
Form Factor 6U VME Board
Power +5V required
  • Defence and aerospace VME systems requiring long life-cycle Intel Atom processing with ECC memory
  • Naval and ground vehicle embedded computing with extended temperature K-Series VME boards
  • Industrial VME platform upgrades leveraging dual PMC/XMC mezzanine I/O expansion capability
  • Surveillance and signal processing VME64x backplane systems with VITA 31.1 Gigabit Ethernet support
