E38F760107

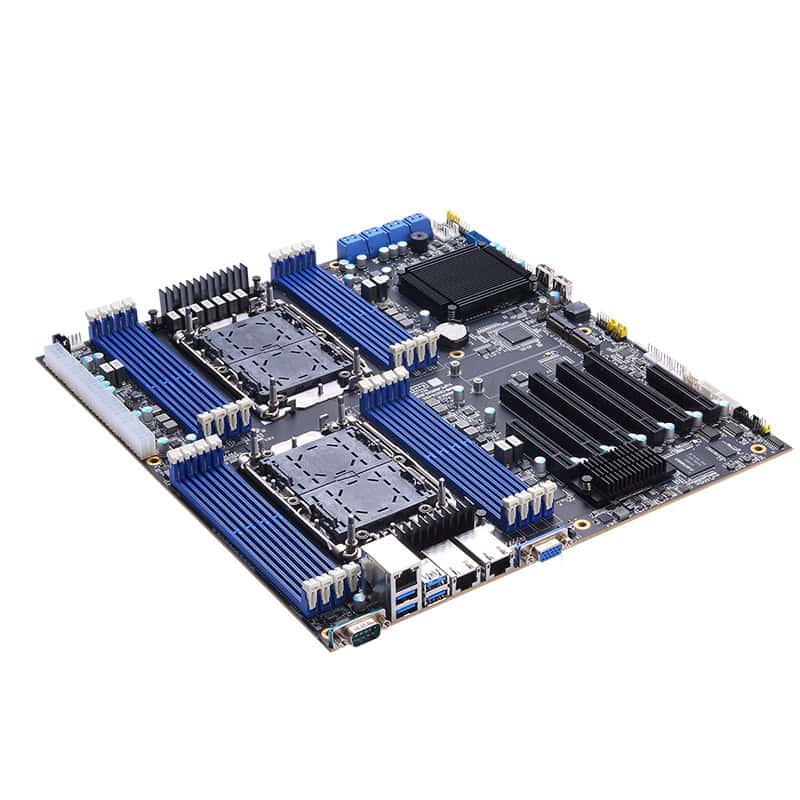

IMB760 – EATX Dual Xeon Scalable Server Motherboard by Axiomtek

The Axiomtek IMB760 is an EATX industrial server motherboard supporting dual 3rd generation Intel Xeon Scalable processors in LGA4189 sockets with TDP up to 270 W, paired with the Intel C621A or C627A chipset. Sixteen DDR4-3200 RDIMM slots accommodate up to 1 TB of memory, six PCIe Gen4 expansion slots including four x16 and two x8 serve demanding compute workloads, and dual 10 GbE ports alongside optional IPMI management make it ideal for industrial server, HPC edge, and high-throughput data processing applications. Available from Recab, your Nordic partner for Axiomtek industrial server motherboard solutions.
contct-now-icon (2) Get datasheet
Description
The Axiomtek IMB760 is a high-performance EATX industrial server motherboard measuring 305 x 330 mm, engineered around dual LGA4189 sockets for 3rd generation Intel Xeon Scalable processors (Ice Lake-SP) at up to 270 W TDP each, supported by the Intel C621A chipset with optional C627A configuration for project-specific builds. Sixteen 288-pin DDR4-3200 RDIMM unbuffered memory slots support up to 1 TB of system memory, providing the headroom required for memory-intensive server, virtualisation, and AI inference workloads at the industrial edge. Six PCIe Gen4 expansion slots — four x16 and two x8 — give system integrators exceptional bandwidth for GPU accelerators, FPGA cards, high-speed capture cards, and NIC expansion. Storage is covered by eight SATA 600 ports with RAID 0/1/5/10 and two M.2 Key-M 2280 slots supporting PCIe x4 NVMe with RAID 0 and 1. Networking is delivered by dual Intel X550-AT2 10 GbE ports for high-throughput data transfer, alongside a dedicated IPMI LAN via Intel I210-AT shared with the optional ASPEED AST2500 BMC for out-of-band remote server management. USB connectivity includes four USB 3.2 Gen1 rear ports plus internal headers, one RS-232/422/485 rear COM port, eight 4-pin fan headers, eight-channel digital I/O, and optional TPM 2.0. Operating from 10 to 35 degrees Celsius with appropriate cooling, the IMB760 targets industrial server, HPC edge computing, video analytics, and high-throughput data acquisition platforms. Available from Recab, your Nordic partner for Axiomtek industrial server motherboard solutions.
Features
  • Dual LGA4189 sockets support 3rd gen Intel Xeon Scalable processors at up to 270 W TDP each for maximum compute density.
  • Sixteen DDR4-3200 RDIMM slots provide up to 1 TB of system memory for memory-intensive server and AI workloads.
  • Six PCIe Gen4 slots including four x16 and two x8 enable broad GPU, FPGA, and high-speed expansion card integration.
  • Dual Intel X550-AT2 10 GbE ports deliver high-throughput networking for data-intensive industrial server deployments.
  • Two M.2 Key-M 2280 NVMe slots with RAID 0/1 support combined with eight SATA 600 ports offer flexible fast storage.
  • Optional ASPEED AST2500 BMC with dedicated IPMI LAN enables full out-of-band remote server management.
Specifications
CPU 3rd gen Intel® Xeon® processors
Memory Up to 1TB DDR4-3200
Chipset Intel® C621A
Expansion 4 PCIe x16, 2 PCIe x8
Ethernet 2 x 10GbE Intel® X550-AT2
Storage 8 x SATA3 with RAID
Dimensions 305 x 330 mm
Temperature 10°C to +35°C
Humidity 10% - 95% RH
BIOS AMI
  • Industrial edge server and HPC workloads requiring dual Xeon Scalable processing power
  • High-throughput video analytics and AI inference platforms with multiple PCIe Gen4 accelerator cards
  • Data acquisition and signal processing systems demanding dual 10 GbE and large memory capacity
  • Industrial virtualisation and storage servers requiring IPMI out-of-band remote management
