IMB541-Q670E

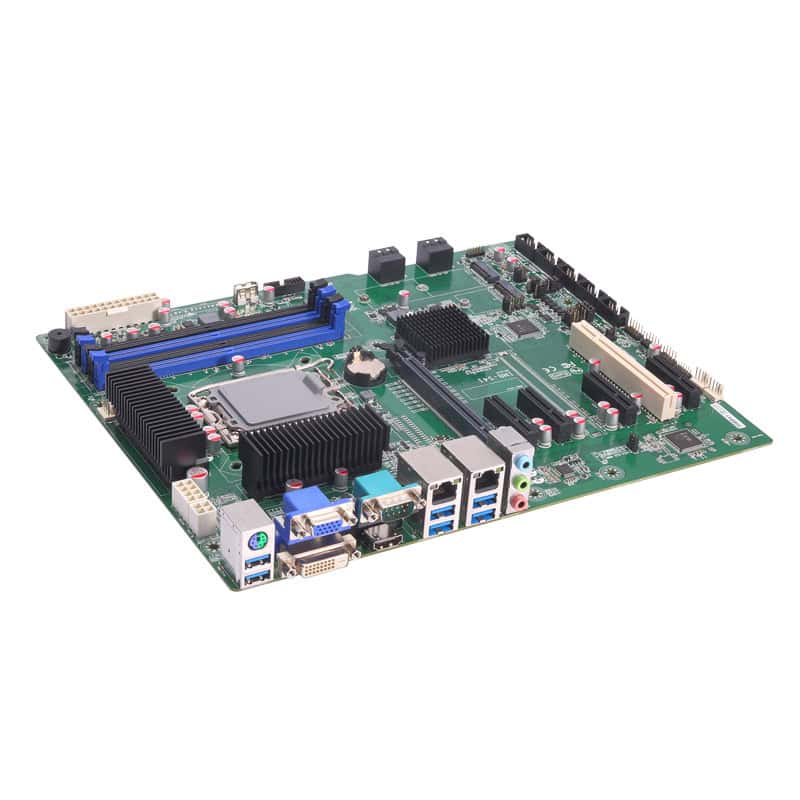

IMB541 – ATX Triple-View Industrial Motherboard by Axiomtek

The Axiomtek IMB541 is an ATX industrial motherboard supporting 12th, 13th, and 14th generation Intel Core i9/i7/i5/i3, Pentium, and Celeron processors in the LGA1700 socket with TDP up to 125 W, paired with the Intel Q670E chipset. Four DDR4-3200 Long-DIMM slots provide up to 128 GB of memory, and simultaneous triple-view display output is delivered via VGA, DVI-D, and HDMI. Dual LAN including a 2.5 GbE port with TSN, six USB 3.2 Gen1 rear ports, four SATA ports, and flexible M.2 expansion make it a strong fit for factory automation, machine control, and industrial computing. Available from Recab, your Nordic partner for Axiomtek industrial motherboard solutions.
Description

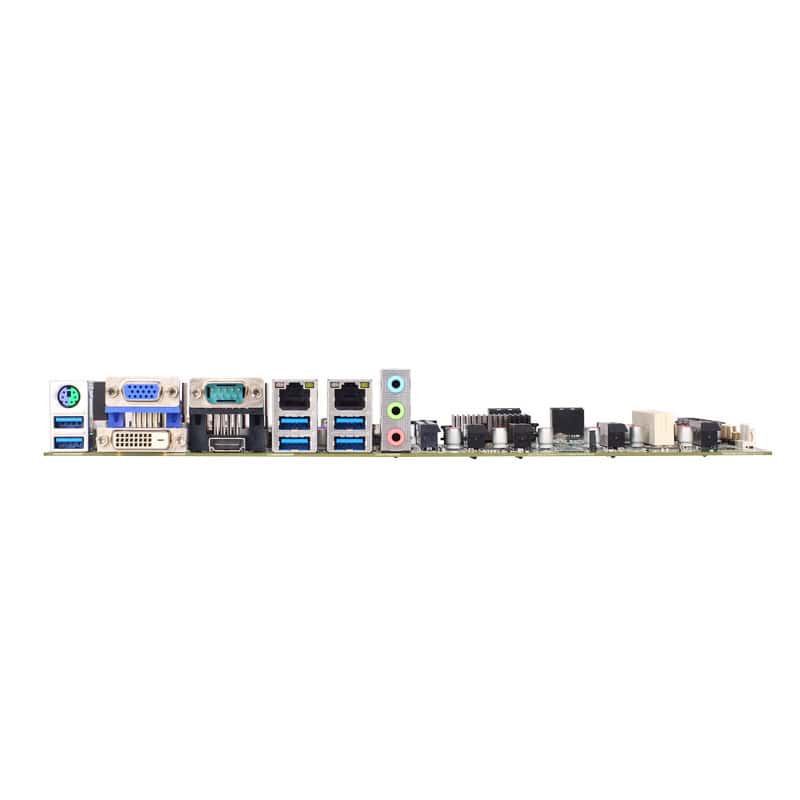

The Axiomtek IMB541 is a full-size ATX industrial motherboard built on the Intel Q670E chipset and designed around the LGA1700 processor socket, supporting 12th, 13th, and 14th generation Intel Core i9, i7, i5, and i3 processors alongside Pentium and Celeron variants at up to 125 W TDP. Four 288-pin DDR4-3200 Long-DIMM slots deliver up to 128 GB of non-ECC system memory, giving engineers substantial capacity for parallel processing and data-intensive industrial workloads. The board provides simultaneous triple-view display output through VGA at up to 1920×1200, DVI-D at up to 1920×1200, and HDMI 1.4b at up to 4096×2160, making it well suited to multi-monitor operator interfaces, surveillance systems, and digital signage. Dual Ethernet is served by an Intel I225-V 2.5 GbE port with TSN and Wake-on-LAN, and an Intel I219-V Gigabit Ethernet port with PXE boot support. Storage includes four SATA 600 ports with RAID 0/1/5/10, one M.2 Key-M 2280 slot with PCIe x4 via CPU for NVMe, and one M.2 Key-E 2230 for wireless modules. Expansion is provided by one PCIe Gen4 x16 slot, four open-ended PCIe x4 slots, and a 32-bit PCI slot for legacy card support. USB connectivity covers six USB 3.2 Gen1 rear ports plus internal headers, and serial I/O includes one RS-232 at the rear panel and four additional COM headers including RS-232/422/485 variants. Eight-channel programmable digital I/O and optional TPM 2.0 via Intel PTT complete the specification. Operating from 0 to 60 degrees Celsius, the IMB541 is a proven choice for factory automation, machine vision, kiosk, and embedded control system builders. Available from Recab, your Nordic partner for Axiomtek industrial motherboard solutions.
Features
  • LGA1700 socket supports 12th to 14th gen Intel Core processors up to 125 W TDP for scalable industrial performance.
  • Four DDR4-3200 Long-DIMM slots deliver up to 128 GB of system memory for data-intensive workloads.
  • Simultaneous triple-view output via VGA, DVI-D, and HDMI 1.4b supports multi-monitor operator interface deployments.
  • Intel I225-V 2.5 GbE with TSN and Intel I219-V GbE provide dual redundant network connectivity with Wake-on-LAN.
  • One PCIe Gen4 x16, four open-ended PCIe x4, and one 32-bit PCI slot deliver broad legacy and modern expansion.
  • Eight-channel programmable digital I/O and five COM ports including RS-232/422/485 support diverse serial device integration.
Specifications
CPU LGA1700 socket 14th/13th/12th Gen
Memory 4 x 288-pin DDR4-3200, up to 128GB
Chipset Intel® Q670E
BIOS AMI BIOS
SSD M.2 Key M 2280 PCIe x4
Expansion 1 x PCIe Gen4 x16 slot
Ethernet 1 x 10/100/1000/2500 Mbps
Audio HD Codec audio
Dimensions 305 x 244 mm
Temperature 0°C to +60°C
  • Factory automation and machine control systems with multi-generation Intel Core processor support
  • Multi-monitor industrial HMI and operator workstations with simultaneous triple display output
  • Digital signage and kiosk platforms requiring a long-lifecycle ATX industrial motherboard
  • Machine vision and embedded computing with PCIe Gen4 expansion and fast NVMe storage
