FlatClient MAR – DNV GL Maritime Panel PC with IP65 Front by Kontro

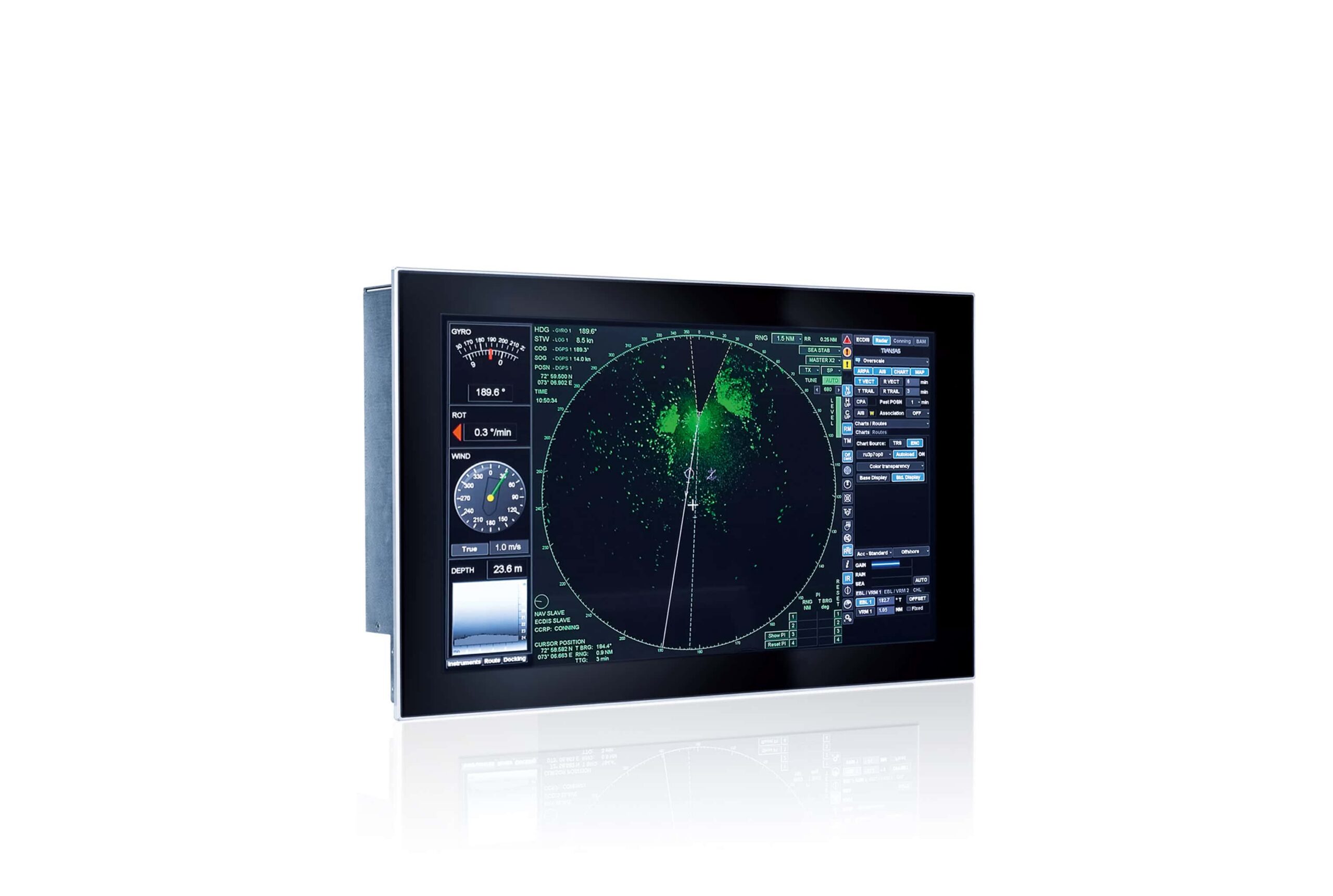

The Kontron FlatClient MAR is a certified maritime panel PC engineered for reliable operation across all key zones aboard commercial and naval vessels, holding EN 60945 and DNV GL type approval for control room, accommodation, and bridge installation locations. Available in ECO Line and PRO Line variants, the FlatClient MAR scales from Intel Pentium Quad Core N4200 in the ECO Line to Intel Core i5-7300U or Intel Celeron 3965U in the PRO Line, with RAM options from 4 GB up to 16 GB DDR4 SO-DIMM and SSD storage from 32 to 512 GB, allowing system integrators to match performance to application requirements across navigation workstations, engine monitoring terminals, and passenger service systems. Display sizes range from 10.1 inches at 1280 x 800 through to 21.5 inches at 1920 x 1080 Full HD, with brightness levels of 300 to 500 cd/m² and viewing angles up to 178°/178°, ensuring legibility under the full range of maritime ambient lighting conditions. The IP65-rated front panel provides ingress protection against water and salt spray, certified per EN 60068-2-52, essential for bridge and deck environments exposed to sea spray and cleaning. Projected capacitive multi-touch and optional protection glass suit both gloved and bare-hand operation. Standard interfaces include dual Gigabit Ethernet, HDMI, DisplayPort, and four USB 3.0 ports, with optional RS-232/422/485 COM ports, RFID, and CAN bus for integration with vessel systems and sensors. Passive fanless cooling and a 24 VDC power supply per EN 61131-2 ensure silent, maintenance-free operation throughout the MTBF-rated 50,000-hour service life. Certified to CE, UL, and DNV GL with EN55032 Class B EMC. Available from Recab, your Nordic partner for Kontron maritime panel PC solutions.
