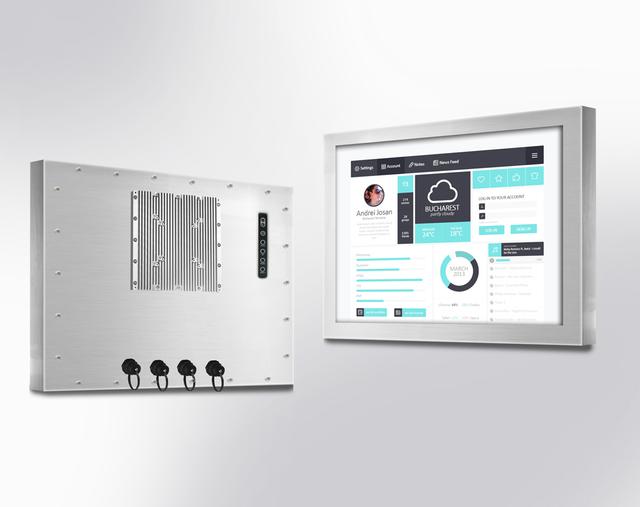

MR-FPCH2316F1-UN40L0-CB0M0C – Marine Grade IP66 Stainless 23.1″ Panel PC by Winsonic

The Winsonic MR-FPCH2316F1-UN40L0-CB0M0C is a marine grade full fanless panel PC housed in a stainless steel chassis, designed for the most demanding shipboard, offshore, and harsh industrial HMI applications where the combination of IP66 full water jet protection, stainless steel corrosion resistance, and large-format display visibility are essential requirements. The 23.1-inch TFT LCD display delivers a native 1600 x 1200 resolution at a 4:3 aspect ratio with 400 nits brightness on a black anti-glare low-reflection surface, 600:1 contrast ratio, a fast response time of 8ms G-to-G, 160-degree horizontal and vertical viewing angles, and an LED backlight with a 35,000-hour typical lifetime, providing a high-quality operator interface visible across the full range of lighting conditions on bridge consoles and engine room control panels. The 23.1-inch screen size makes it particularly well-suited for applications requiring multiple data streams, radar overlays, or chart displays that benefit from a larger viewing area compared to the 15-inch MR-IPCH1505F1. Powered by Intel Core Ultra 5 or Ultra 7 Series 2 (Arrow Lake) processors with Intel Arc 140T GPU and DDR5 5600 MT/s memory up to 32GB, the system delivers strong graphics and computational performance for vessel management, SCADA, and advanced HMI applications. Connectivity includes 4x Giga LAN via Intel I210 controllers, 4x USB 3.2, HDMI, and audio line-out, with PCIe/PCI expansion and onboard TPM 2.0. Optional connector types include M12, MIL-38999, and MIL-26482 series for defence and specialist maritime applications, with a full range of touch, panel, power, and connectivity options available. Available from Recab, your Nordic partner for Winsonic marine panel PC solutions.
