Q7M310 – Qseven Module with Intel Atom x5/x7 Apollo Lake by Axiomtek

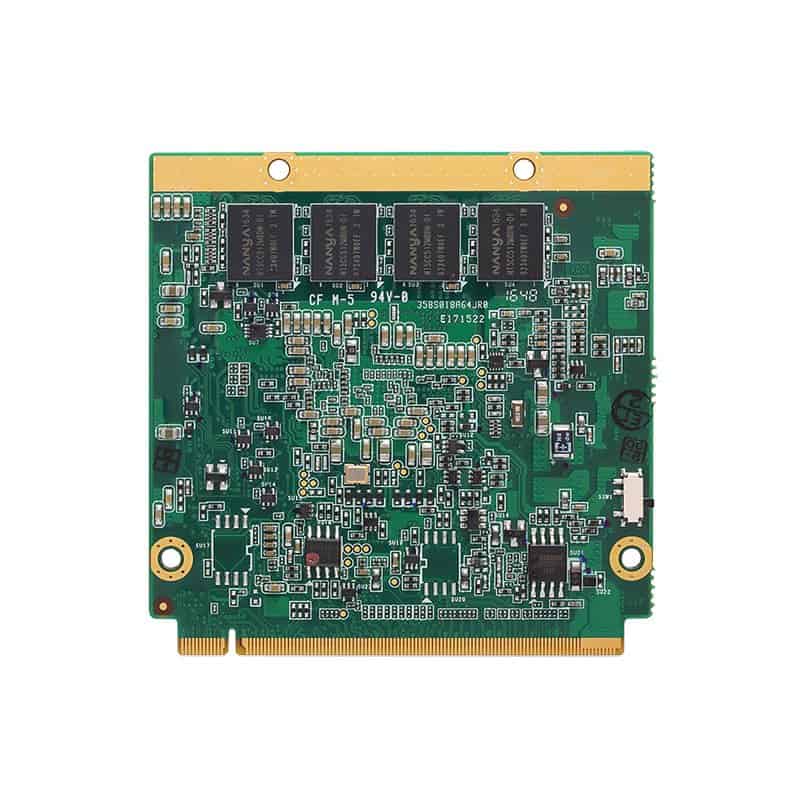

The Axiomtek Q7M310 is a Qseven form factor compute module measuring 70 x 70 mm and built on the Intel Apollo Lake platform, offering a choice of Intel Atom x7-E3950 at 2.0 GHz, x5-E3940 at 1.8 GHz, or x5-E3930 at 1.8 GHz processors with SoC-integrated Intel Gen 9 graphics supporting DirectX 11.1, OpenCL 1.2, and OpenGL 4.2. The module ships with up to 4 GB of onboard DDR3L memory in a soldered configuration, eliminating connector failure risks in vibration-prone environments, and an optional 32 GB eMMC provides integrated solid-state storage for OS and application data in sealed designs. Four PCIe x1 expansion lanes provide flexible connectivity for peripheral and communication expansion, and dual SATA-600 interfaces accommodate additional storage devices via the carrier board. Display output is handled by one DDI interface supporting DisplayPort, HDMI, or DVI, and one LVDS interface with 18/24-bit dual-channel support, with an optional eDP interface, enabling dual-view display configurations for HMI and digital signage applications. Networking is provided via an Intel i210-IT Gigabit Ethernet controller supporting Wake-on-LAN and PXE boot. USB connectivity covers two USB 3.0 and four USB 2.0 ports, with an optional configuration providing up to six USB 2.0 ports, and 8-channel GPIO and I2C round out the system interface set. An AMI uEFI BIOS with 65,536-level watchdog timer and hardware monitoring support reliable autonomous operation. Operating from -40°C to +85°C in industrial temperature versions, the Q7M310 is well suited to automation controllers, digital signage nodes, industrial IoT gateways, and medical embedded designs. Available from Recab, your Nordic partner for Axiomtek embedded module solutions.
