OFM-1120

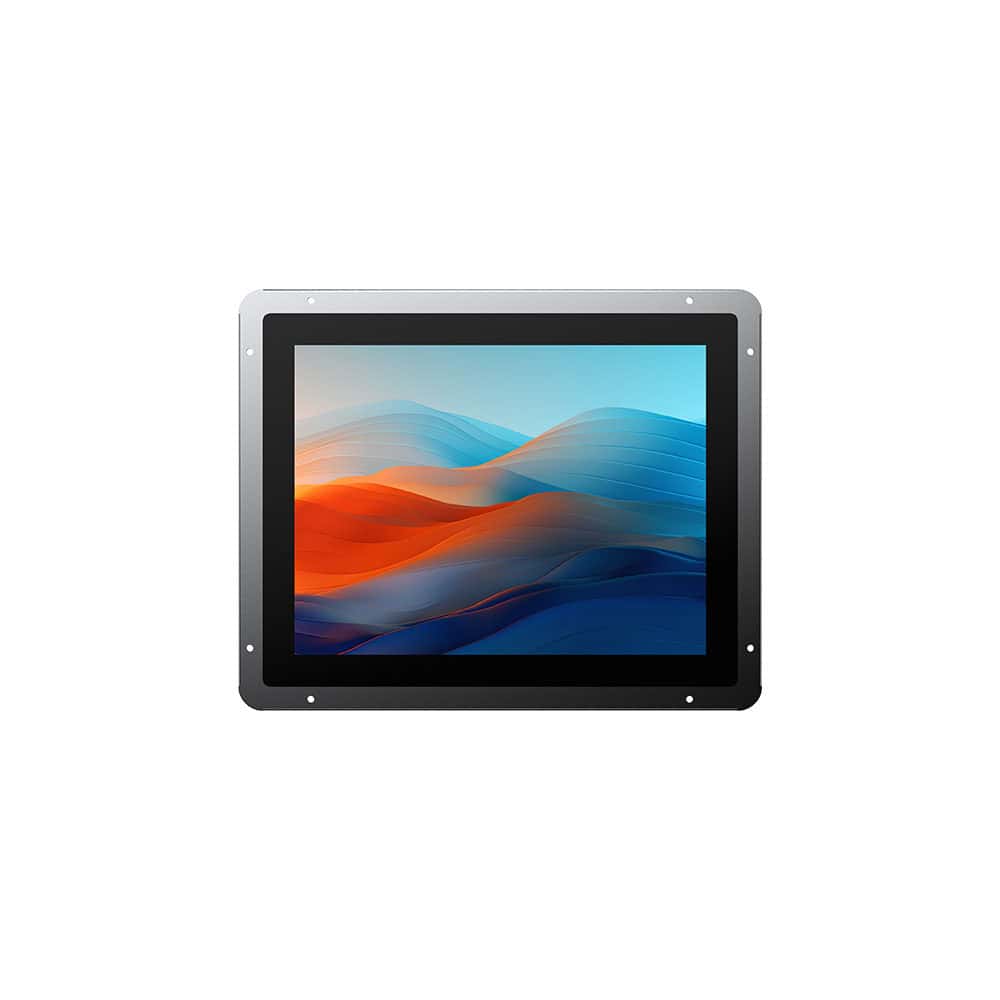

OFM-1120 – 12.1″ Industrial Open Frame Monitor by Darveen

The Darveen OFM-1120 is a 12.1-inch industrial open frame monitor designed for seamless integration into embedded applications, HMI enclosures, and kiosk systems requiring a borderless, lightweight display solution. Featuring a 1024×768 TFT LCD with 450 nits brightness, optional projected capacitive multi-touch or 5-wire resistive touch, HDMI, VGA, and DVI signal inputs, IP65-rated front panel, and DC 12 to 24V power, it supports rear installation and VESA 75 mounting across operating temperatures of -10 to 50°C. Available from Recab, your Nordic partner for Darveen industrial display solutions.
Description
The Darveen OFM-1120 is a 12.1-inch industrial open frame monitor designed as part of the Darveen Open Frame Monitor series, built for engineers and OEM system integrators who need a versatile, borderless display that can be embedded into custom enclosures, HMI panels, kiosk systems, and industrial control applications. The modular open frame architecture supports rear installation and VESA 75 wall-mount bracket mounting, allowing the OFM-1120 to be adapted to a wide variety of panel and enclosure configurations without custom fabrication. The 12.1-inch TFT LCD operates at 1024×768 resolution with 450 nits brightness, a 1000:1 contrast ratio, 80-degree viewing angles on all sides, and a rated LED backlight lifetime of 50,000 hours, making it well suited for continuous industrial operation. Touch options include projected capacitive multi-touch with 7H surface hardness and 87% transmittance, or an optional 5-wire resistive touch at 80% transmittance with 3H hardness, controlled via USB interface. Three video signal inputs — HDMI, VGA, and DVI — provide broad compatibility with industrial PCs, embedded controllers, and panel PCs, and front-panel buttons for auto-adjust, menu, left, right, and power are included for direct on-monitor control. The IP65-rated front panel provides ingress protection against dust and water suitable for industrial washdown or outdoor-adjacent environments. DC 12 to 24V power input via a 2-pin phoenix terminal connector at 10W consumption keeps power infrastructure simple, and the overall chassis measures 311.6 x 240 x 34.5 mm at just 2.2 kg, rising to 318 x 256 x 36 mm with touch solution included. CE and FCC certification with an operating temperature range of -10 to 50°C completes the industrial specification. Available from Recab, your Nordic partner for Darveen industrial display solutions.
Features
  • 12.1-inch 1024x768 TFT LCD with 450 nits brightness and 50,000-hour backlight lifetime suits continuous industrial operation
  • Optional projected capacitive multi-touch with 7H hardness or 5-wire resistive touch covers varied operator interface requirements
  • Three video inputs including HDMI, VGA, and DVI provide broad compatibility with industrial PCs and embedded controllers
  • IP65-rated front panel provides ingress protection for industrial washdown and dust-prone environments
  • Rear installation and VESA 75 mounting support flexible integration into custom OEM enclosures and HMI panels
  • DC 12 to 24V input via 2-pin phoenix terminal at only 10W consumption simplifies power integration in embedded systems
Specifications
Size 12.1 inch
Resolution 1024 x 768
Luminance 450 nits
Contrast 1000: 1
View 80 (all directions)
Touch Capacitive/Resistive
Power 10W
DC 12 to 24VDC
Weight 2.2 kg (N.W.)
Dimensions 311.6 x 240 x 34.5 mm
  • Industrial HMI panel and operator interface open frame display integration
  • Kiosk and self-service terminal embedded monitor deployments
  • Factory automation and process control embedded display applications
  • Medical and laboratory instrument open frame touchscreen integration
